Sale!

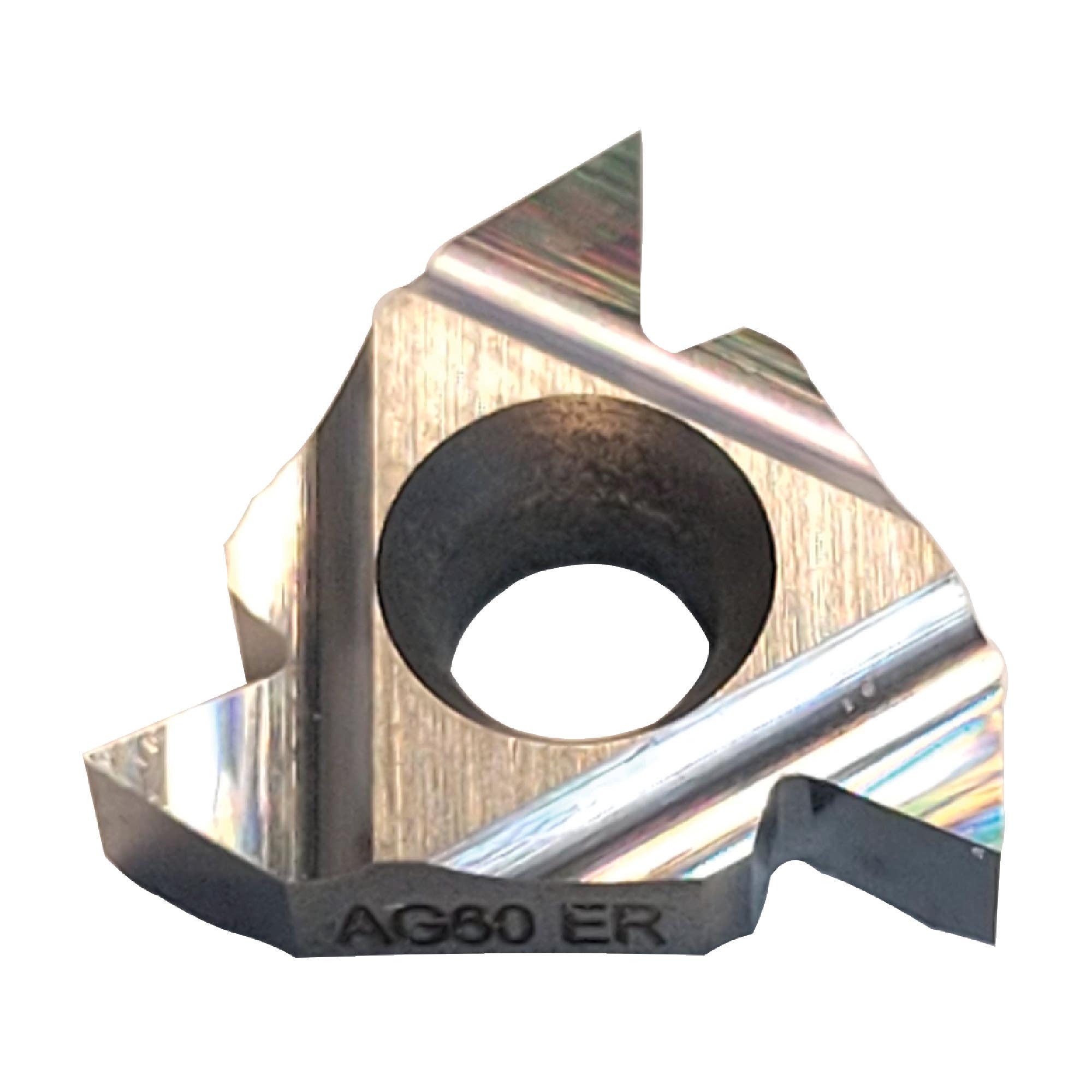

Carmex 100% Original 16ERAG60K20 - 16 ER AG60 K20, Indexable Carbide Lay Down Threading Insert, AG60, AG60 TPI, External, Right Hand 10 pcs
$74.88 Original price was: $74.88.$37.44Current price is: $37.44.
- Saving on tooling costs.
- Increased productivity thanks to the six cutting edges.
- The same insert can be used for a range of different thread pitches.
- Cuts without topping the outside diameter of the thread.
- High-quality threads produced by the inserts.
- Available assortments support Low-to-Medium-to-High feeds.
- Carbide grade tool offers high toughness.
- Large assortments, available in all standard specifications.
- U Style inserts for a wide range of full or partial profile standard threads.
- Available for internal or external threading applications.
- Thread milling, thread turning, tapping or thread whirling, all are possible.
- Capable of cutting threads as small as 0.5 mm.
- PVD-coated grade is the first choice in stable conditions.
- Used in high production runs.
- Optimized performance on Hardened Steels and Cast Iron up to 62HRc, Titanium Alloys and Super Alloys (Hastelloy, Inconel, and Nickel based alloys).
- Standard Laydown Threading Insert
- Multiple Pitches
- Chip breaker style available
- Available in left or right handed inserts
- Available for internal or external threading applications
- Partial Profile V Thread 60°- A60°, G60°, AG60°, N60°, Q60° & U60° Profiles Available.
Brand | CARMEX |
---|---|
Tool Material | Carbide |
Grade | C2/K20 |
Insert IC | 3/8" |
Coating | Uncoated |
Insert Hand | Right Hand |
Pitch Type | AG60 |
Internal=External | External |
Pitch Range_TPI | 8-48 |
Profile Type | Partial Profile |
Model # | 16ERAG60K20 |
Designation | 16 ER AG60 K20 |
Insert # | 16 ER AG60 |
ISO K CAST IRON | X |
ISO N NON FERROUS | X |
No. of Cutting Sides | 3 |
Pitch Range | 8-48 |
Prop. 65 | Yes |
Weight | 0.0147 lbs. |
Country of Origin | ISRAEL |
Weight | 0.1 kg |
---|---|
Dimensions | 15 × 18 × 4 cm |
