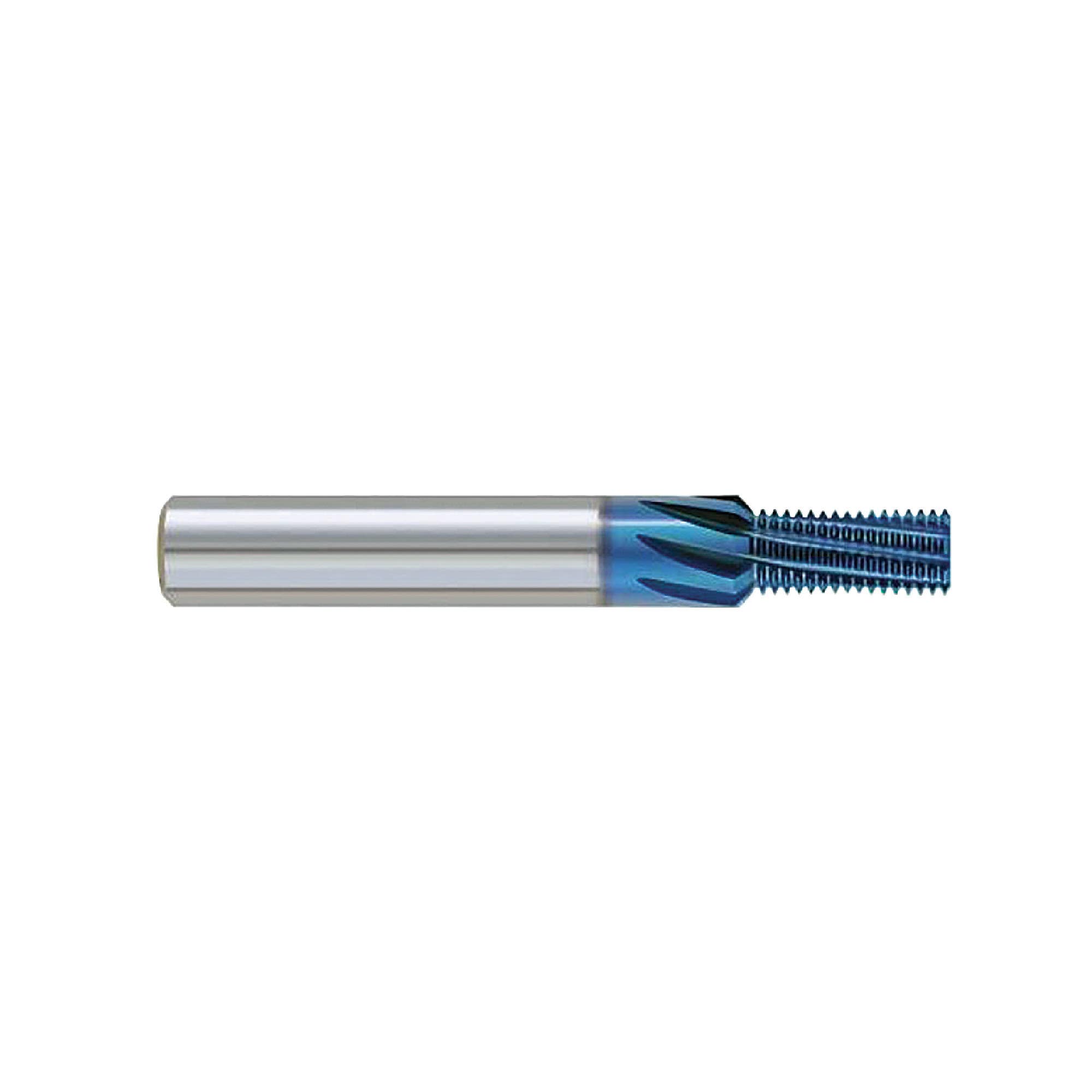

Carmex 100% Original FMT 12082 G17 24 UN 24 T.P.I. TPI, .323 Dia., Solid Carbide Thread Mill 1 pcs
Original price was: $104.82.$34.94Current price is: $34.94.
- Large number of flutes allows for significantly shorter machining times.
- Internal threading tool.
- Produces 60° threads.
- For a wide rangeof materials including: steel, stainless steel, cast iron, non-ferrous materials, high temp exotic alloys and hard materials ≤45 HRc.
| Brand | CARMEX |
|---|---|
| Shank Diameter | 12.00mm |
| Overall Length | 3.3" |
| Finish Coating | Blu Coating |
| No. of Flutes | 7 |
| Length of Cut | .69" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Type | Coolant Through Solid Carbide Thread Mill |
| Cutter Diameter | .323" |
| Pitch | 24 T.P.I. |
| Thread Type | UN Thread Form |
| Threads Per Inch | 24 T.P.I. |
| Coolant Through | Yes |
| Model # | FMT 12082 G17 24 UN |
| Cutting Direction | Right Hand |
| General Application | High Performance Thread Milling |
| Material | Solid Carbide |
| Maximum Cutting Diameter at Chamfer | .417" |
| Maximum Length of Cut With Chamfer | .74" |
| Minimum Thread Diameter | 3/8", 9/16", 5/8", 11/16" |
| Prop. 65 | Yes |
| Weight | 0.2625 lbs. |
| Workpiece Material | General Purpose For All Materials |
| Country of Origin | ISRAEL |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
