Sale!

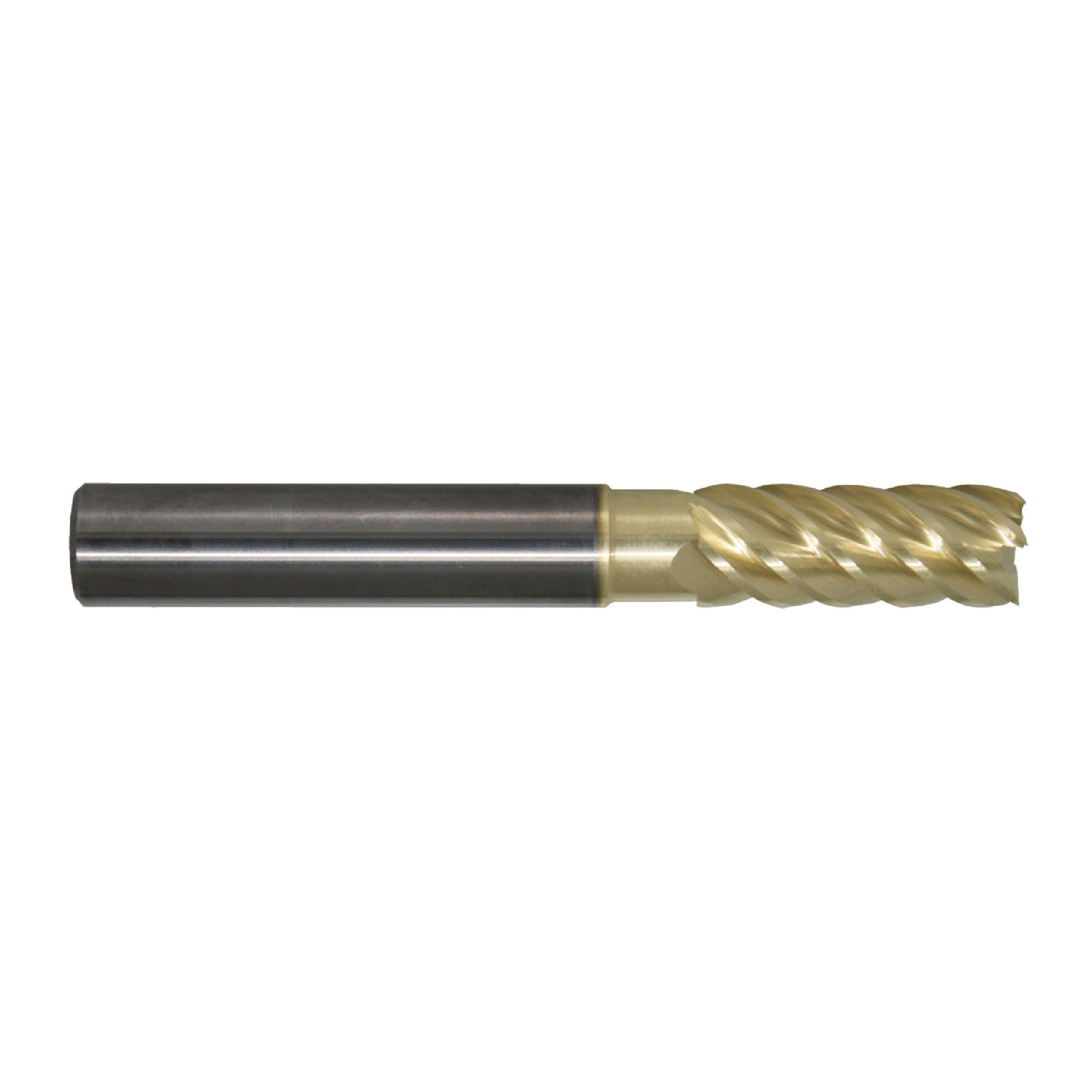

CERATIZIT 100% Original 12185620 3/4 Size, 1-5/8 LOC, 6 Flute, ZrN Solid Carbide Finishing End Mill 1 pcs
Original price was: $127.23.$42.41Current price is: $42.41.
- 43.5°/46.5° variable helix reduces vibration resulting in improved finishes.
- Minimal protective radius on corners to protect corners from chipping.
- Undercut shank provides deeper access.
- ZrN coating is specifically for machining aluminum and other non-ferrous materials as it keeps the chips from gumming up and sticking together.
- Coatings increase tool life, enhances chip flow and lubricates through the cut.
| Brand | CERATIZIT |
|---|---|
| Shank Diameter | 3/4" |
| Overall Length | 6" |
| Finish Coating | ZrN |
| Size Type | Fractional |
| Size | 3/4" |
| No. of Flutes | 6 |
| Length of Cut | 1-5/8" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | Variable |
| Center Cutting | Yes |
| Corner Radius | 0 |
| Neck Diameter | .720" |
| End Type | Square |
| Coolant Through | No |
| Model # | 12185620 |
| Application | Milling Non-Ferrous Materials |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square |
| First Choice For: | Non-Ferrous |
| Flute Shape | Spiral Flute |
| Prop. 65 | Yes |
| Reach | 3-5/8" |
| Series | US376 |
| Shank Style | Cylindrical |
| Tolerance_Cutting Diameter | +.000" / -.002" |
| Tolerance_Shank | -.0001" / -.0004" |
| Tolerance_Shank Diameter | -.0001" / -.0004" |
| UNSPSC | 27112803 |
| Weight | 0.53 lbs. |
| Workpiece Material | Aluminum, Aluminum High Silicone, Copper & Brass |
| Workpiece Material Range | Non-Ferrous, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
