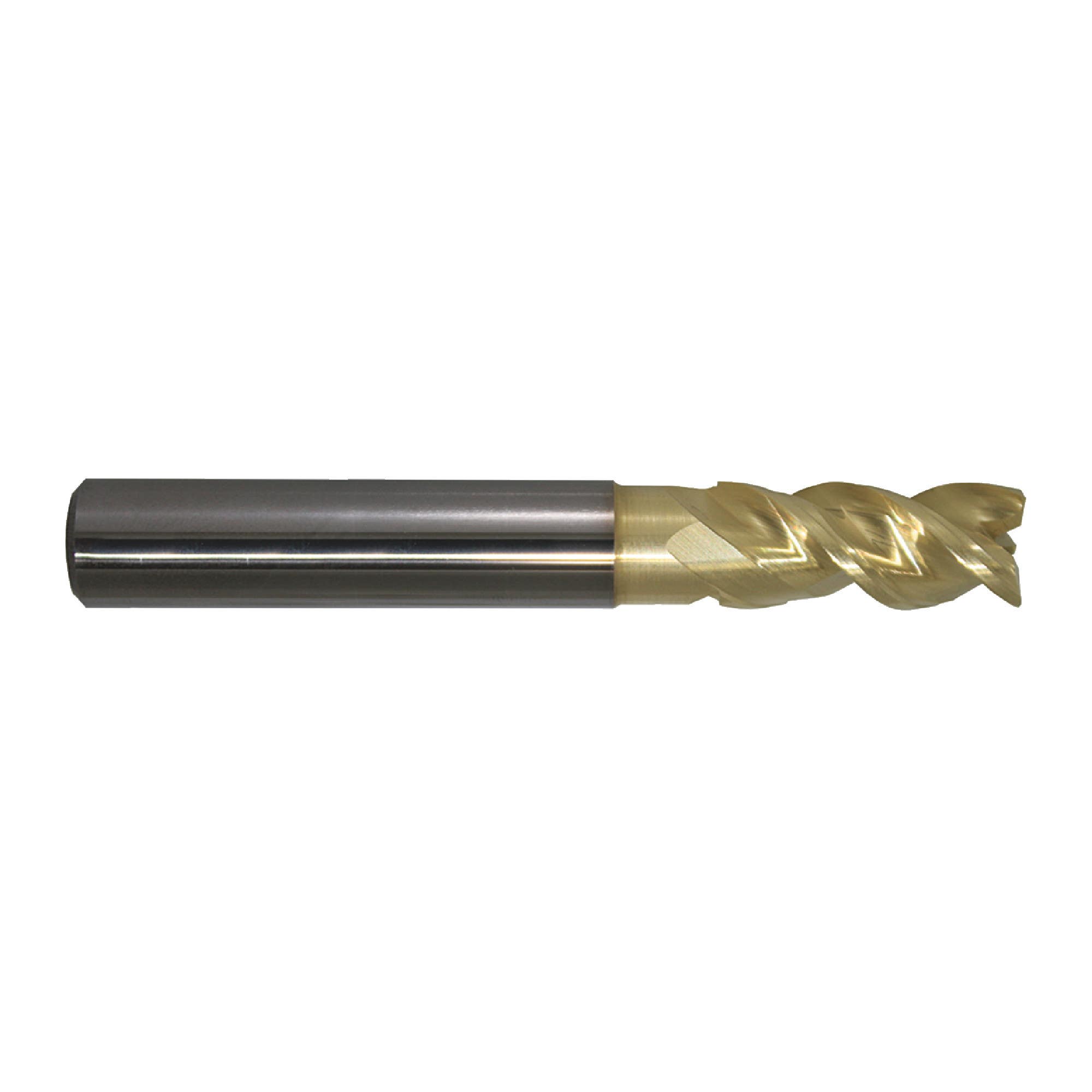

CERATIZIT 100% Original US360042 5/8 Size, 1 LOC, 3 Flute, ZrN Solid Carbide Finishing End Mill 1 pcs
Original price was: $73.58.$24.53Current price is: $24.53.
- 42.5°/45°/47.5° variable helix reduces vibration resulting in improved finishes.
- Minimal protective chamfer on corners to protect corners from chipping.
- Undercut shank allows for deeper access.
- Deep flutes for excellent chip evacuation allowing high chip volume and stable cutting.
- ZrN coating is specifically for machining aluminum and other non-ferrous materials as it keeps the chips from gumming up and sticking together.
- Coatings increase tool life, enhances chip flow and lubricates through the cut.
| Brand | CERATIZIT |
|---|---|
| Shank Diameter | 5/8" |
| Overall Length | 6" |
| Finish Coating | ZrN |
| Size Type | Fractional |
| Size | 5/8" |
| No. of Flutes | 3 |
| Length of Cut | 1" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | Variable |
| Center Cutting | Yes |
| Corner Radius | 0 |
| Neck Diameter | .600" |
| End Type | Square |
| Coolant Through | No |
| Model # | US360042 |
| Application | Milling Non-Ferrous Materials |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square |
| First Choice For: | Non-Ferrous |
| Flute Shape | Spiral Flute |
| Prop. 65 | Yes |
| Reach | 4" |
| Series | US360 |
| Shank Style | Cylindrical |
| Tolerance_Cutting Diameter | +.000" / -.002" |
| Tolerance_Shank | -.0001" / -.0004" |
| Tolerance_Shank Diameter | -.0001" / -.0004" |
| Weight | 0.5 lbs. |
| Workpiece Material | Aluminum, Aluminum High Silicone, Copper & Brass |
| Workpiece Material Range | Non-Ferrous, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
