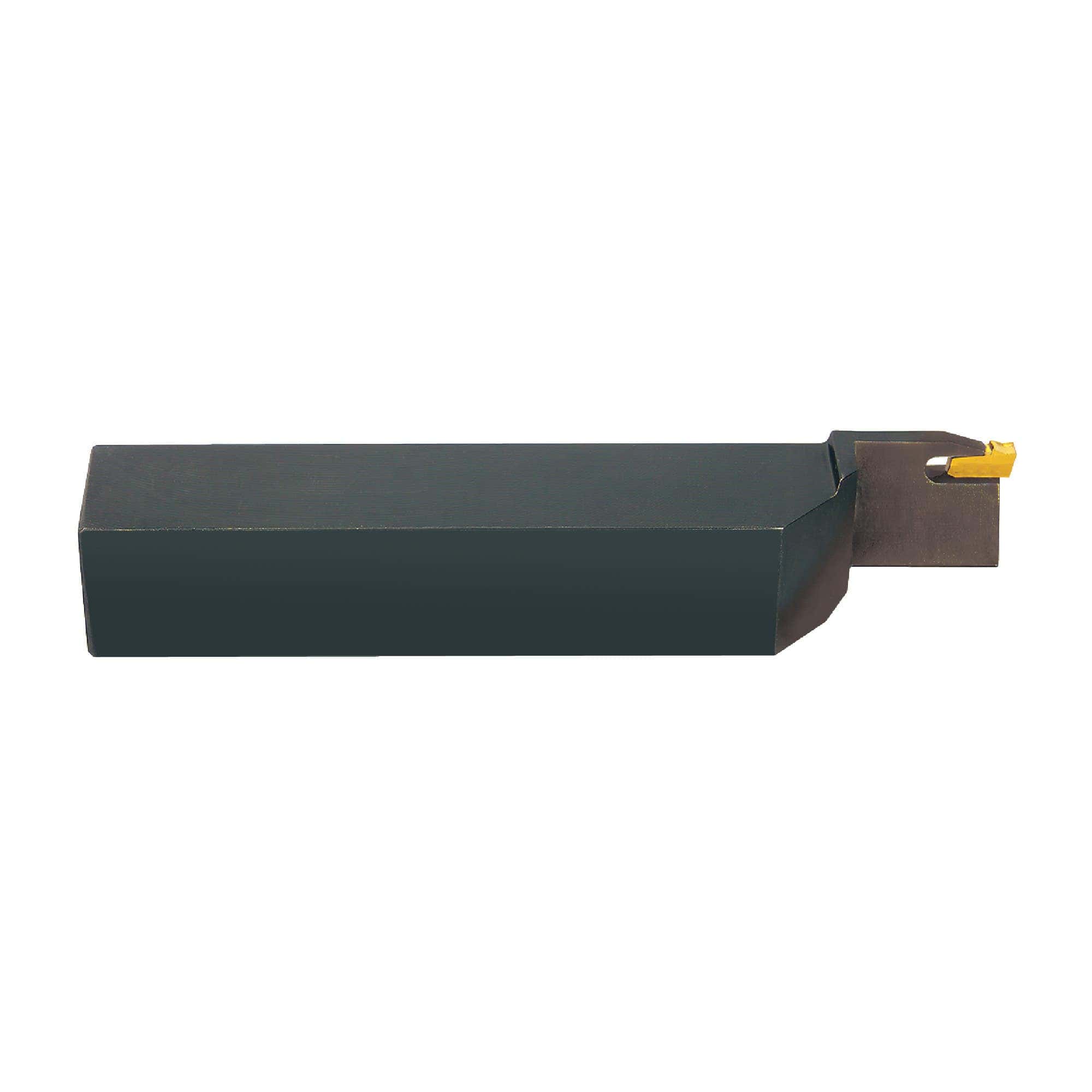

Iscar 100% Original 2300385 - 20mm Shank, Face Grooving Holder, GFF3R/L Self-Grip Inserts, Right Hand 1 pcs
Original price was: $80.40.$26.80Current price is: $26.80.
- FACE GROOVING
- Wedge clamping of insert provides superior stability in close quarters face grooving cuts.
- "F type" pocket and insert design provides for unobstructed chip flow out of groove being generated.
- Toolholder design easily allows for opening up of face groove width by taking multiple passes.
| Brand | ISCAR |
|---|---|
| Series | Self-Grip |
| Use Insert # | GFF3R/L |
| Shank Height | 20mm |
| Shank Width | 20mm |
| Coolant Use | No |
| Insert Width | 0.118" |
| Shank | 20mm |
| Overall Length | 4.72" |
| Maximum Depth of Cut | 0.630" |
| Hand | Right Hand |
| Minimum Diameter | 1.18" |
| Maximum Diameter | 1.38" |
| Holder | SGFFR 20-30-3 |
| Model # | 2300385 |
| Operation | Face Grooving |
| Prop. 65 | Yes |
| Weight | 0.73 lbs. |
| Country of Origin | ISRAEL |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
