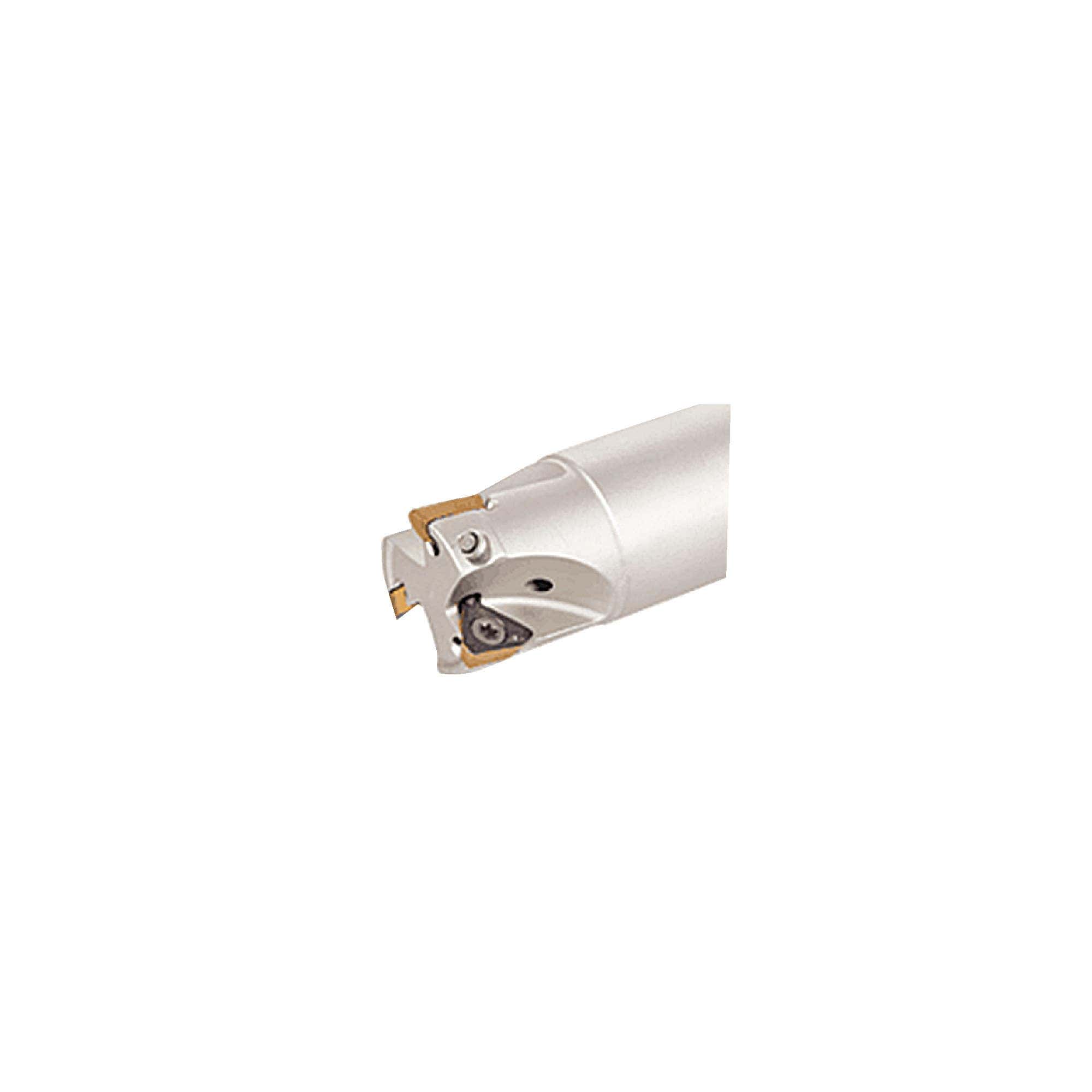

Iscar 100% Original 3106630 - HM390 ETP D1.25-4-C1.25-B, 1.250 90 Degree Indexable End Mill for TPKT1003 Inserts, Cylindrical, Right Hand 1 pcs
Original price was: $201.60.$67.20Current price is: $67.20.
- Inserts have three cutting edges
- Chip shredder geoemty available for rough millings
- Free cutting design is great for multiple applications and gummy materials
- Triangular insert with 3 cutting edges
- Economical high positive 90° shoulder
- Ramping down ability
- High axial rake angles
- Very strong and durable cutter
- Sharp clamping angle for higher clamping rigidity
- Coarse and fine pitch cutters
- For roughing and semi-finishing applications
- Coolant holes for each insert
| Brand | ISCAR |
|---|---|
| Use Insert # | TPKT1003 |
| Cutter Diameter | 1.250" |
| Shank Diameter | 1.250" |
| No. of Inserts | 4 |
| Maximum Depth of Cut | 0.315" |
| Overall Length | 7.870" |
| Hand | Right Hand |
| Coolant Use | Yes |
| Shank Type | Cylindrical |
| Series | HM390 |
| Accepts | TPCR1003 TPCT1003 TPKR1003 TPKT1003 |
| Application | Face Milling, Slotting, Shouldering, Ramping, & Helical Milling (Circular Interpolation) |
| Approach Angle | 90° |
| Designation | HM390 ETP D1.25-4-C1.25-B |
| Head Length | 1.570" |
| Maximum Ramping Angle | 2.1° |
| Model # | 3106630 |
| Prop. 65 | Yes |
| Use Torx Screw # | SR 14-562/S |
| Use Torx Wrench # | T-10 |
| Weight | 2.39 lbs. |
| Country of Origin | ISRAEL |
| Shipping Restrictions | UPS Ship (drop ship item) |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
