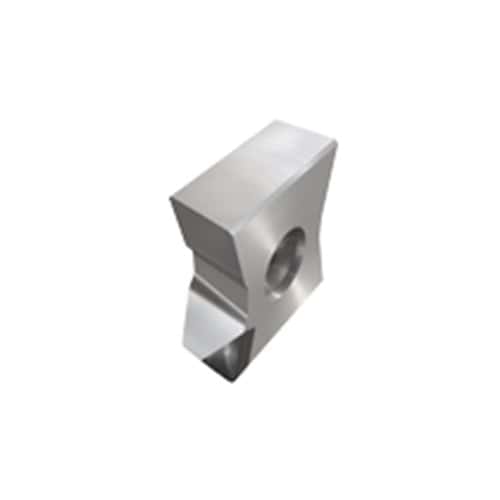

Iscar 100% Original 6004468 - TAG R1.4JS-10D IC808, TAG - Tang Grip Carbide Parting / Grooving Insert, 0.055 Cutting Width 10 pcs
Original price was: $73.20.$24.40Current price is: $24.40.
- Cutting edge with positive rake used at low-to-medium feeds.
- The JS-type has sharp corners.
- JT chip former has the basic positive configuration of the J-type and a reinforced negative frontal edge.
- Solid carbide is extremely heat resistant and used for high-speed applications.
- The tool design provides extra cutting-edge strength.
- Suitable for turning and planning at cutting speeds with large feeds.
- For machining in unfavorable conditions; permits use of sharp positive angles.
- Large assortments, available in all standard geometry and width.
- PVD-coated grade is the first choice for parting-off in stable conditions.
- C-Type chip breakers: First choice for parting of bars, hard materials, and tough applications.
- J-Type chip breakers: First choice for soft materials, parting of tubes, small diameters, and thin-walled parts.
- First choice for soft materials, alloy steel and austenitic stainless steel.
- Parting of tubes, small diameters and thin-walled parts.
- For grooves, parting off to center, and chamfering.
- Compatible with standard blades and holders.
- Use in all CNC machines and manual lathes.
- Iscar uniquely designed TAG inserts are the first choice for the parting of bars, hard materials and tough applications.
- A positive rake, single cavity (except 7mm & 12mm with double cavity), negative land and shoulders, provides extra cutting-edge strength.
- Medium-to-high feeds.
| Brand | ISCAR |
|---|---|
| Tool Material | Carbide |
| Chipbreaker | JS |
| Grade | IC808 |
| Insert Radius | 0.001" |
| Coating | PVD / TiAlN+AlTiN+TiN |
| Insert Style & Size | TAG R1.4JS-10D |
| Insert Cutting Width | 0.055" |
| Lead Angle Hand | RIGHT HAND |
| Lead Angle | 10° |
| Series | TAG - Tang Grip |
| Model # | 6004468 |
| Designation | TAG R1.4JS-10D IC808 |
| Insert # | TAG R1.4JS-10D |
| ISO H Hard Materials | X |
| ISO K CAST IRON | X |
| ISO M STAINLESS STEELS | X |
| ISO P STEEL | X |
| ISO S HRSA EXOTIC | X |
| No. of Cutting Sides | 1 |
| Prop. 65 | Yes |
| Weight | 0.015 lbs. |
| Country of Origin | ISRAEL |
| Shipping Restrictions | UPS Ship (drop ship item) |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
