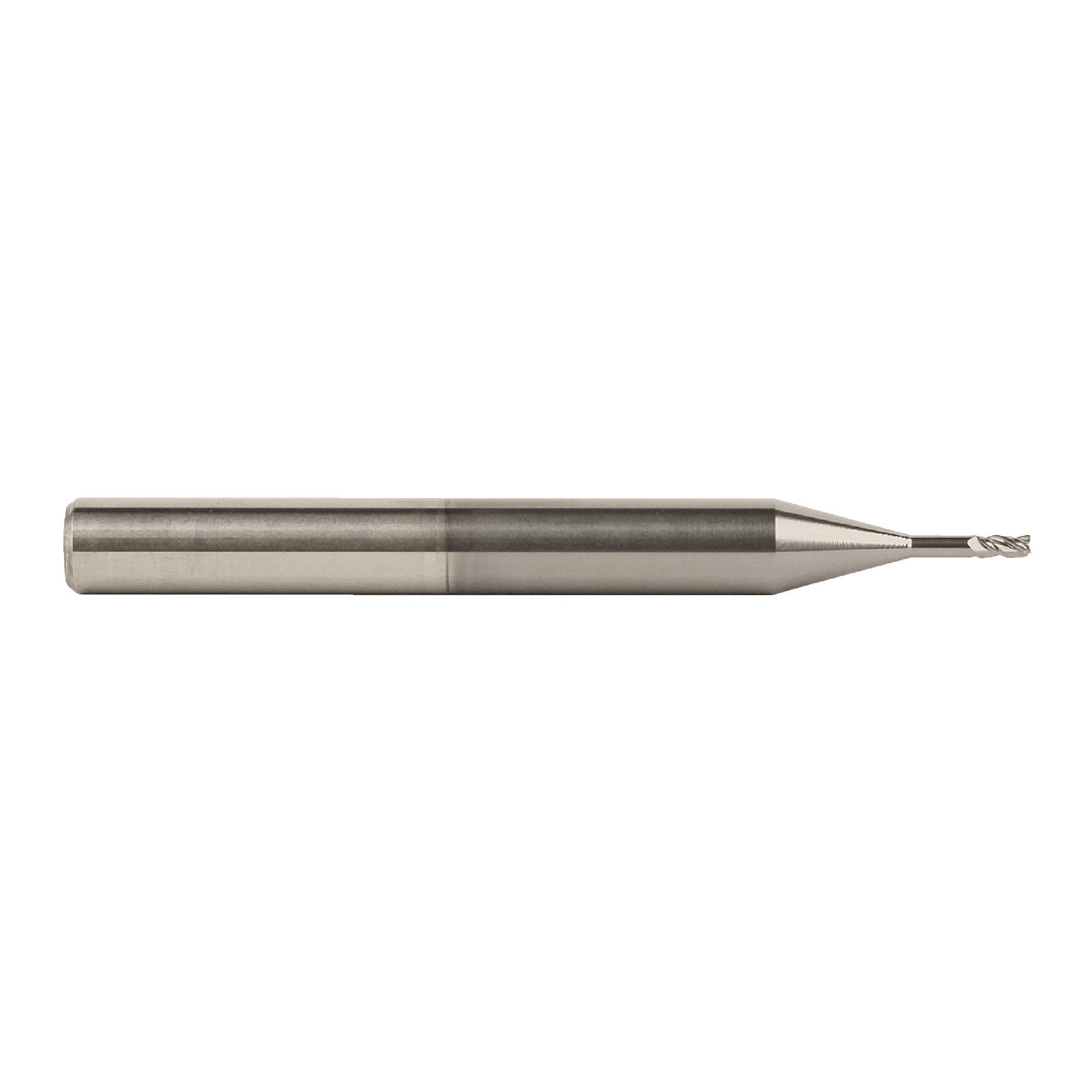

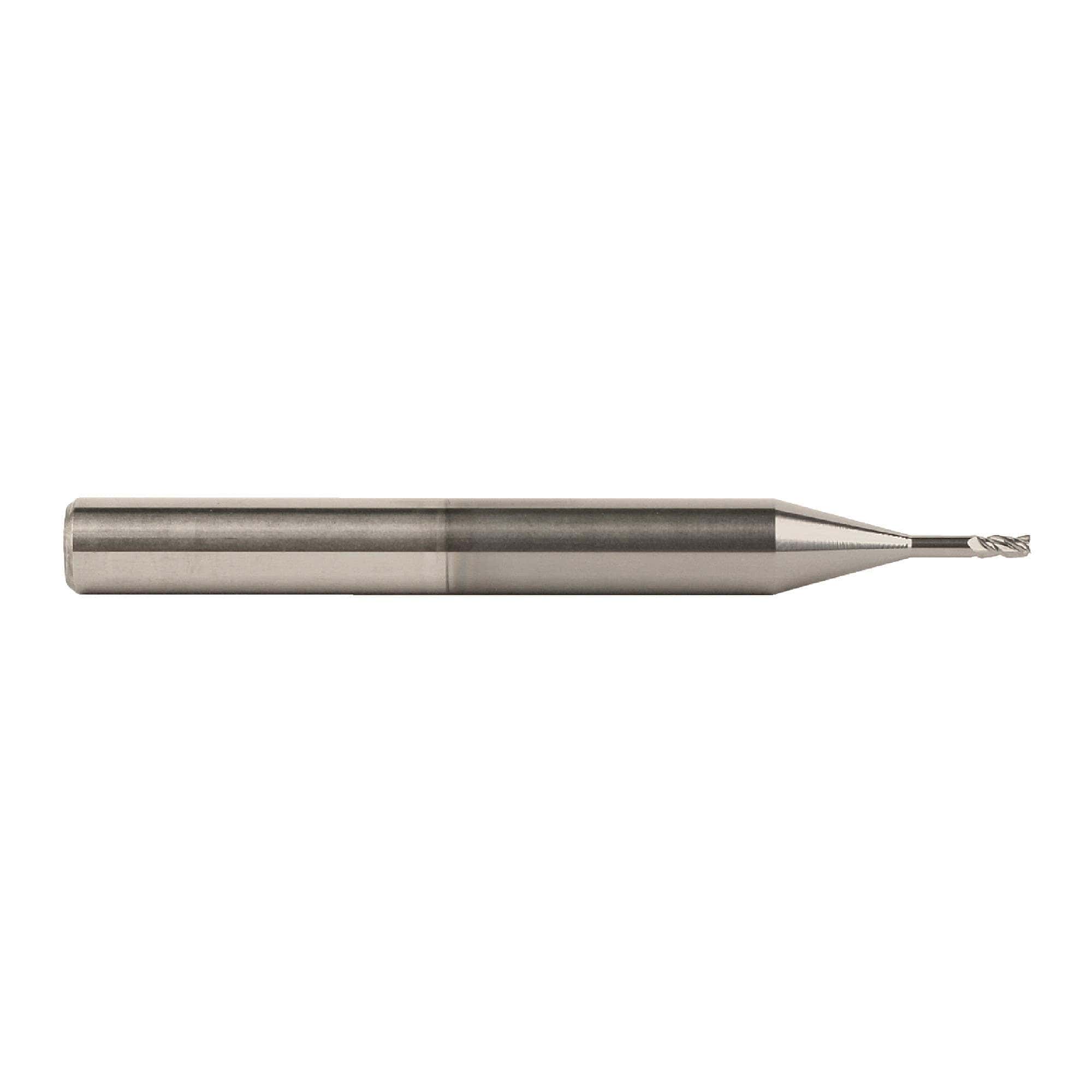

Kyocera 100% Original T0625O188ERC 1/16 Size, .188 LOC, 3 Flute, AlCrN Solid Carbide Finishing End Mill 1 pcs
Original price was: $16.10.$5.37Current price is: $5.37.
- Produces mirror surface finishes.
- AlCrN coating ( aluminum chromium nitride) delivers an excellent combination of hardness and wear resistance.
| Brand | KYOCERA |
|---|---|
| Shank Diameter | 1/4" |
| Overall Length | 2-1/2" |
| Finish Coating | AlCrN |
| Size Type | Fractional |
| Size | 1/16" |
| No. of Flutes | 3 |
| Length of Cut | .188" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | Variable |
| Center Cutting | Yes |
| Type | 1/4" Shank Solid Carbide 3 Flute Single End Mill |
| Corner Radius | .010" |
| Neck Length | .312" |
| End Type | Single |
| Model # | T0625O188ERC |
| Application | For tough machining applications; excels on stainless, hi-carbon steel, cast iron, nickel alloy & aluminum. |
| Cutting Direction | Right Hand |
| First Choice For: | High Temp Exotic Alloys |
| Flute Shape | Spiral Flute |
| Nose Type | Square Nose |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +0.0000"/ -0.0008" |
| UNSPSC | 27112803 |
| Workpiece Material | Excels on stainless, steel, hi-carbon steel, cast iron, nickel alloy & aluminum. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
