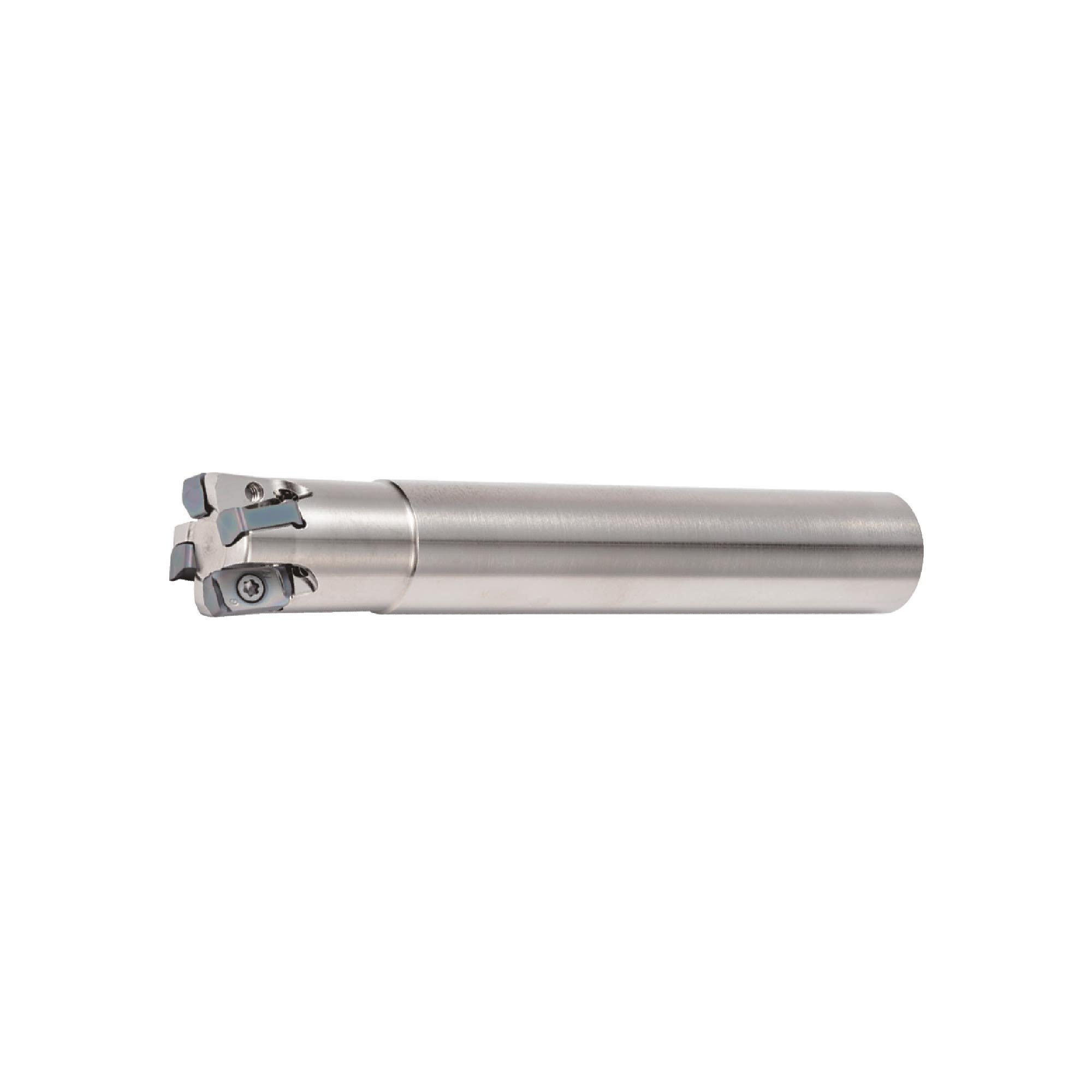

Kyocera 100% Original THN07814 - MFH 1000-S100-03-4T-7, 1.000 High Feed Indexable End Mill for LOGU030310ER Inserts, CYLINDRICAL, Right Hand 1 pcs
Original price was: $213.59.$71.20Current price is: $71.20.
- High feed milling tool capable with small diameter tooling for heavy metal removal rates
- Near perpendicular design provides the capability to slot and shoulder mill
- Insert geometry provides an excellent surface finish
- Screw on system and end mill design provides great chip evacuation and interference
- Coolant thru system allows for better chip evacuation and longer tool life with less heat
- Availabe in individual end mill sets with inserts
- Innovative negative insert with four cutting edges
- Near perpendicular insert placement
- Postive rake angle to reduce tool pressure.
- Coolant thru capable.
- Simple screw clamping
- Very strong and durable end mills
- Multiple lengths per cutting diameters
- Cylindrical and weldon shanks available
- Suitable for multiple all materials
| Brand | KYOCERA |
|---|---|
| Use Insert # | LOGU030310ER |
| Cutter Diameter | 1.000" |
| Shank Diameter | 1.000" |
| No. of Inserts | 4 |
| Maximum Depth of Cut | 0.039" |
| Overall Length | 7.000" |
| Hand | Right Hand |
| Coolant Use | Yes |
| Shank Type | Cylindrical |
| Series | MFH RAPTOR MINI |
| Accepts | LOGU030310ER |
| Application | Face Milling, Slotting, Shouldering, Ramping, Helical Milling (Circular Interpolation), & Plunging. |
| Designation | MFH 1000-S100-03-4T-7 |
| Head Length | 4.000" |
| Maximum Ramping Angle | 1.2掳 |
| Model # | THN07814 |
| Prop. 65 | Yes |
| Use Torx Screw # | SB-3065TRP |
| Use Torx Wrench # | T-08 |
| Weight | 0.6 lbs. |
| Country of Origin | JAPAN |
| Shipping Restrictions | UPS Ship (drop ship item) |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
