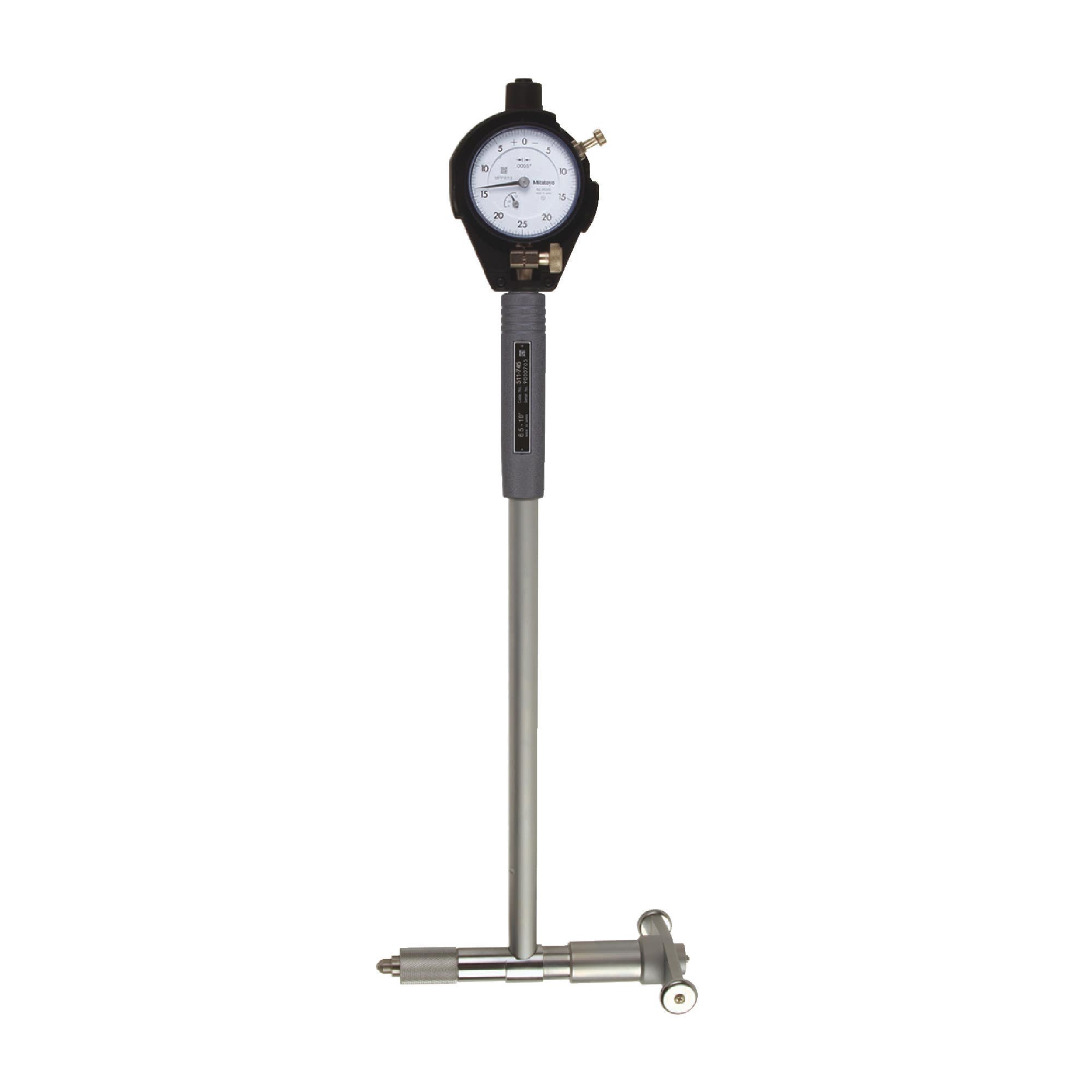

Mitutoyo 100% Original 511-745-20 6.5 - 10 Range, 10 Measuring Depth, .0005 Graduation Dial Bore Gage 1 pcs
Original price was: $279.20.$93.07Current price is: $93.07.
- The gage set from Mitutoyo includes interchangeable anvils that help in measuring the inner diameter of holes of different depths and sizes.
- The contact point of the gages comes with a carbide tip to ensure durability and longevity.
- AGD Group 2 dial indicators provide greater accuracy with less time and effort, and the protective cover helps alleviate external shocks.
- The gages also allow for repeated error-free measuring.
- The dial bore gages from Mitutoyo are the perfect tool for accurate inside diameter measurements in machining, metalworking, manufacturing, and other similar industries.
- The 511 series gages are effective to measure even deep bores, and for still deeper holes, you can go for the extension rods that are available as optional.
- If your work demands high-precision close-tolerance ID measurements, you can readily employ Mitutoyo s dial bore gages.
- Mitutoyo s 511 series dial bore gage sets are a collection of standard-type dial bore gages equipped with all required accessories.
- The contact point of the gages is tipped with carbide for long tool life.
- In the set, you get an AGD Group 2 dial indicator with a protective cover.
- The gages with 0.0001 inch and 0.0005 inch graduations have a measuring range of 1.4-2.5 inches.
- With ±0.0002 inch accuracy, the gages offer a measuring depth of 6 inches.
| Brand | Mitutoyo |
|---|---|
| Model # | 511-745-20 |
| Measuring Range | 6.5" - 10" |
| Measuring Depth | 10" |
| Graduation | .0005" |
| Type | Dial Bore Gage Set |
| Prop. 65 | Yes |
| Weight | 3 lbs. |
| Country of Origin | JAPAN |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
