Sale!

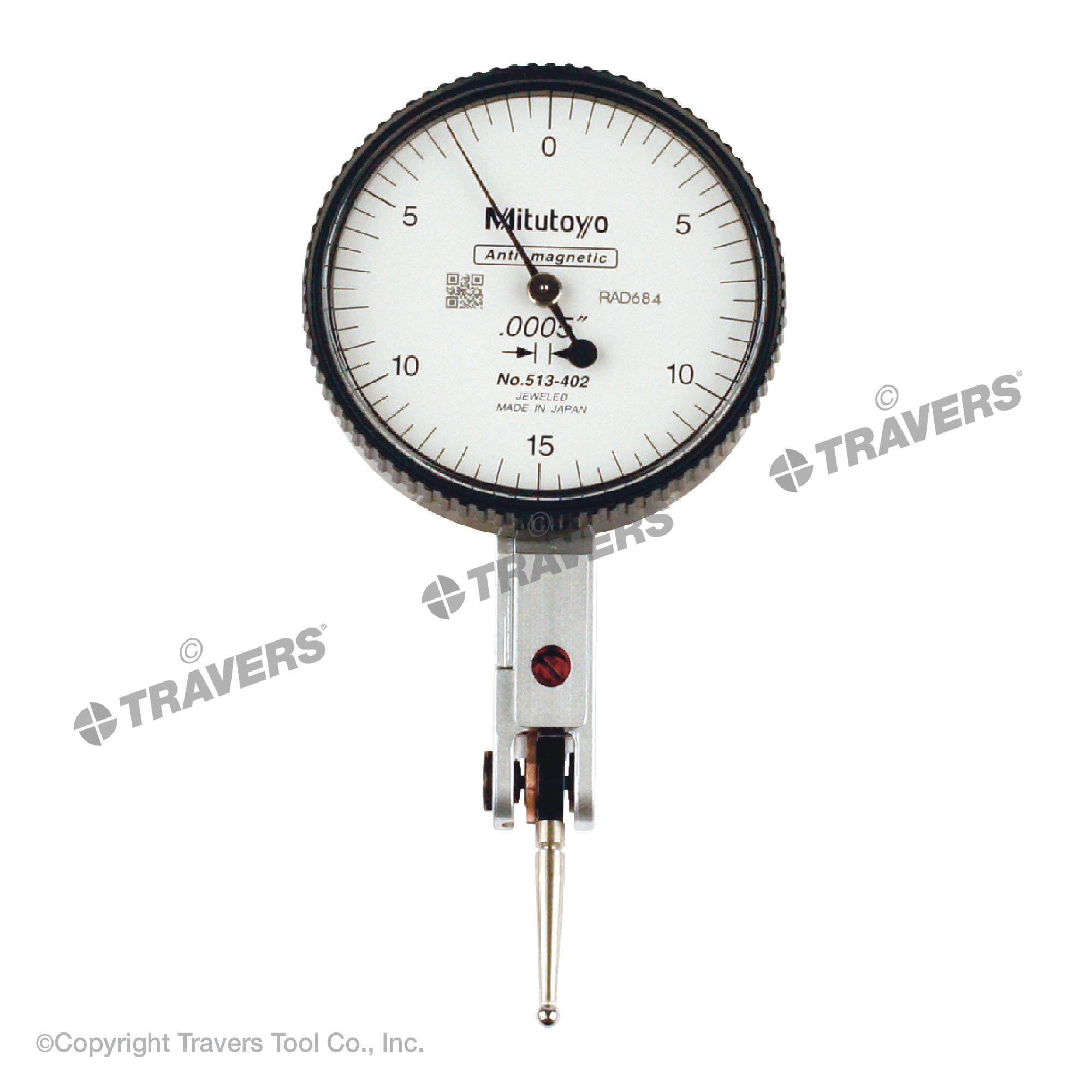

Mitutoyo 100% Original 513-402-10E 0 - 0.030 Range, 0-15-0 Reading Dial Test Indicator 1 pcs
Original price was: $61.20.$20.40Current price is: $20.40.
- With Mitutoyo dial test indicators, you can achieve easy and error-free measuring with improved sensitivity.
- The direction reversal of measurement is easy with their no-clutch design.
- The tight bonding between the bezel and the crystal on the dial face prevents the contamination of the dial face, thereby enhancing durability.
- The user-friendly fonts and color used on the dial face and the glare-free crystal help you read graduations effortlessly.
- Mitutoyo horizontal dial test indicators are the best choice for measurements to be taken in confined spaces.
- They are also great in measuring the inside and outside diameters of machine parts that are difficult for other products available in the market.
- You can use these dial indicators to align your workpiece on machines, including grinding, milling, and lathe machines.
- They can also measure the precision, surface roughness, and runout of various machines.
| Brand | Mitutoyo |
|---|---|
| Model # | 513-402-10E |
| Measuring Range | 0 - 0.030" |
| Dial Reading | 0-15-0 |
| Graduation | .0005" |
| Dial Color | White |
| Type | Horizontal |
| Contact Point Diameter | 0.078", 2mm |
| Includes | With Jeweled bearings |
| Nut Diameter | 3/8" |
| Prop. 65 | Yes |
| Stem Diameter | 3/8" |
| Travel | .030" |
| Type of Reading | Inch |
| Weight | 0.5 lbs. |
| Country of Origin | JAPAN |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
