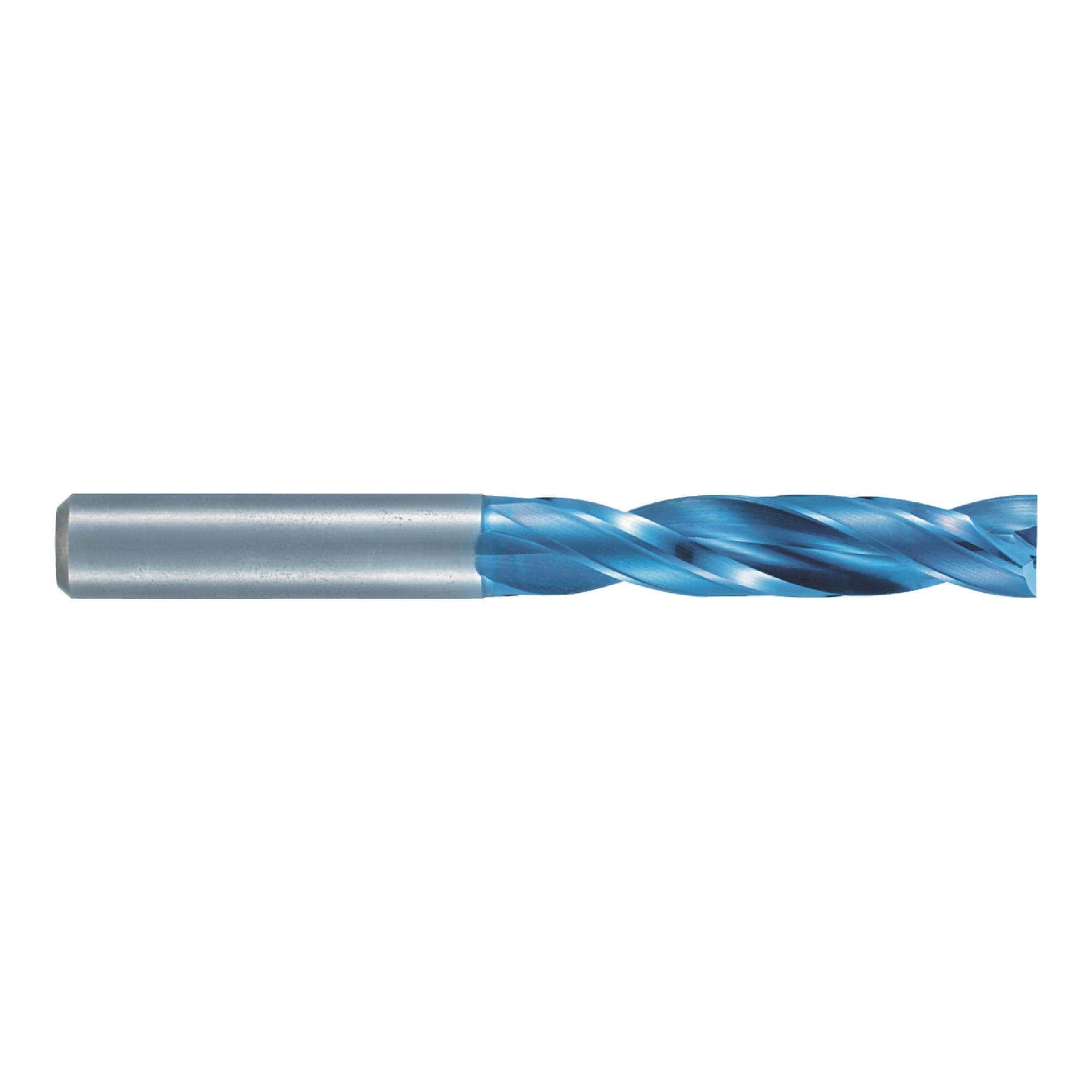

Nachi 100% Original 0719544 10.70mm 180° Solid Carbide Flat Bottom High Performance Drill 1 pcs
Original price was: $147.66.$49.22Current price is: $49.22.
- Corner chamfer.
- Double margin.
| Brand | NACHI |
|---|---|
| Size Type | Metric |
| Size | 10.70mm |
| Drill Point Angle | 180° |
| Tool Material | Solid Carbide |
| Finish Coating | Aqua EX TiAIN + AlTiCR |
| Shank Diameter | 11.00mm |
| Overall Length | 116.00mm |
| Type | Flat Bottom Drill |
| Flute Length | 49mm |
| Cutting Direction | Right Hand |
| First Choice For: | High Temp Exotic Alloys |
| Model # | 0719544 |
| Helix Angle | 30° |
| Coolant Through | coolant |
| Cutting Diameter | 10.7mm |
| Decimal Size | .4213" |
| Drill Type | Flat Bottom |
| Effective Length | 51mm |
| Flute Shape | Spiral |
| For Tap Size | 1/2"-13 |
| Helix Direction | Right Hand |
| Hole Depth | 3xD |
| No. of Flutes | 2 |
| Prop. 65 | Yes |
| Series | L9812 |
| Shank Style | Straight Shank |
| Single or Double End | Single |
| Tolerance_Cutting Diameter | +0/-.0007" |
| Web Style | Double margin & corner chamfer |
| Weight | 0.29471904188289344 |
| Workpiece Material | Structural Steels, Carbon Steels, Cast Irons, Alloy Steels, Heat Treated Steels, Mold Steels, Hardened Steels, Aluminum Alloys |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials |
| Country of Origin | JAPAN |
| Shipping Restrictions | UPS Ship (drop ship item) |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
