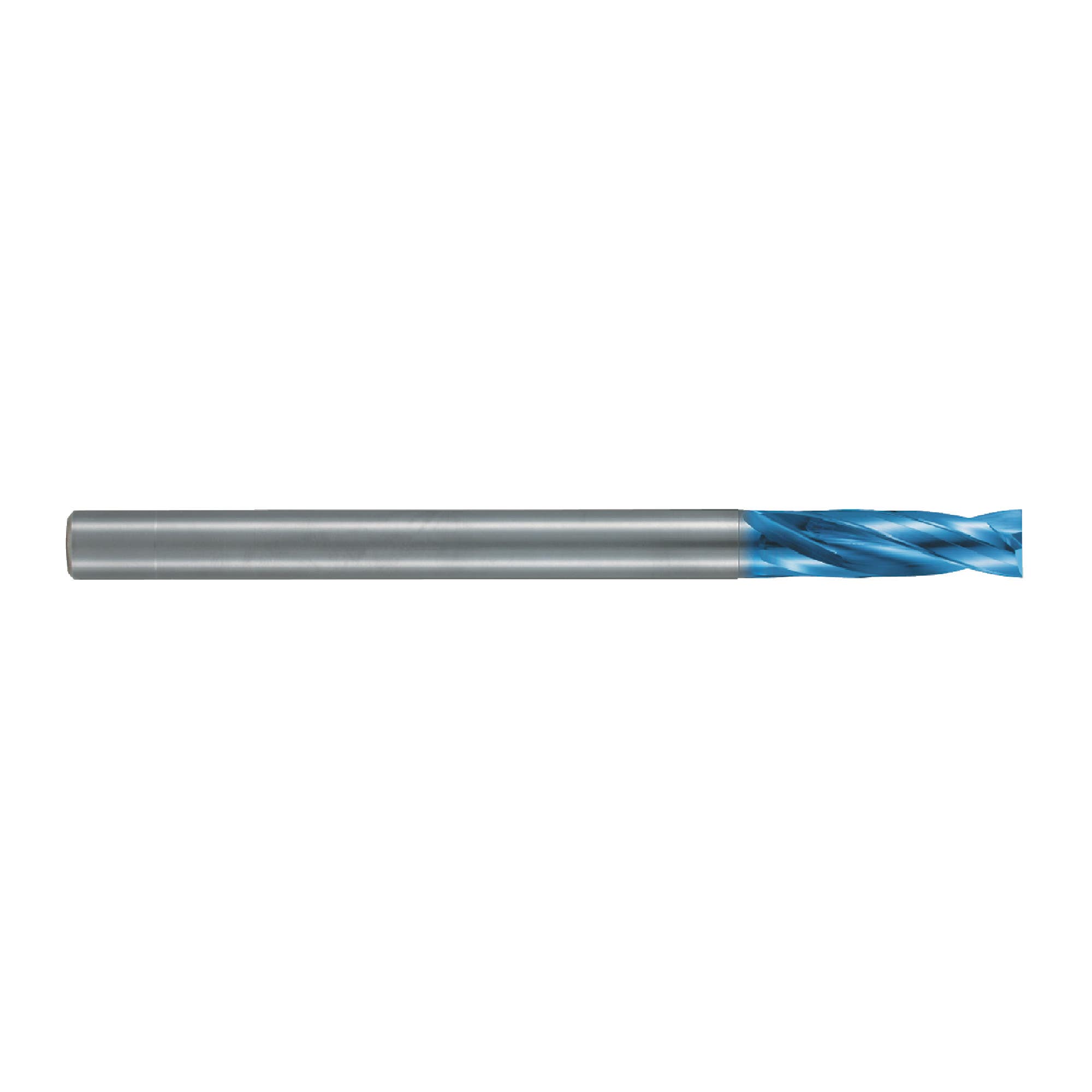

Nachi 100% Original 1489467 7/32 180° Solid Carbide Flat Bottom High Performance Drill 1 pcs
Original price was: $56.31.$18.77Current price is: $18.77.
- One drill does it all-eliminates the need to use a center drill or end mill on inclined or curved surfaces.
- Self lubricating AQUA EX coating offers superior resistance.
- Ideal for flat bottom applications in the oil & gas, automotive as well as general industries.
- True 180° flat cuttung edges creates minimal exit burr in tubing & thin plates.
- Improved heat & wear resistance with our AQUA EX Coating (TiAlN + AlTiCR).
- Ideal for counterboring, angled holes & intersecting holes.
| Brand | NACHI |
|---|---|
| Size Type | Fractional |
| Size | 7/32" |
| Drill Point Angle | 180° |
| Tool Material | Solid Carbide |
| Finish Coating | Aqua EX TiAIN + AlTiCR |
| Shank Diameter | 6.00mm |
| Overall Length | 110.00mm |
| Flute Length | 25mm |
| Cutting Direction | Right Hand |
| First Choice For: | High Temp Exotic Alloys |
| Model # | 1489467 |
| Point Sharpening Type | Double Margin |
| Decimal Size | .2188" |
| Flute Shape | Spiral Flute |
| Helix Angle & Style | 20° |
| Length Style | Long Length |
| No. of Flutes | 2 |
| Prop. 65 | Yes |
| Series | L9817 |
| Shank Style | Straight Shank |
| Single or Double End | Single |
| Weight | 0.08 lbs. |
| Workpiece Material | Structural Steels, Carbon Steels, Cast Irons, Alloy Steels, Heat Treated Steels, Hardened Steels, Stainless steels, Aluminum Alloys, Aluminum Castings |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials |
| Country of Origin | JAPAN |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
