Sale!

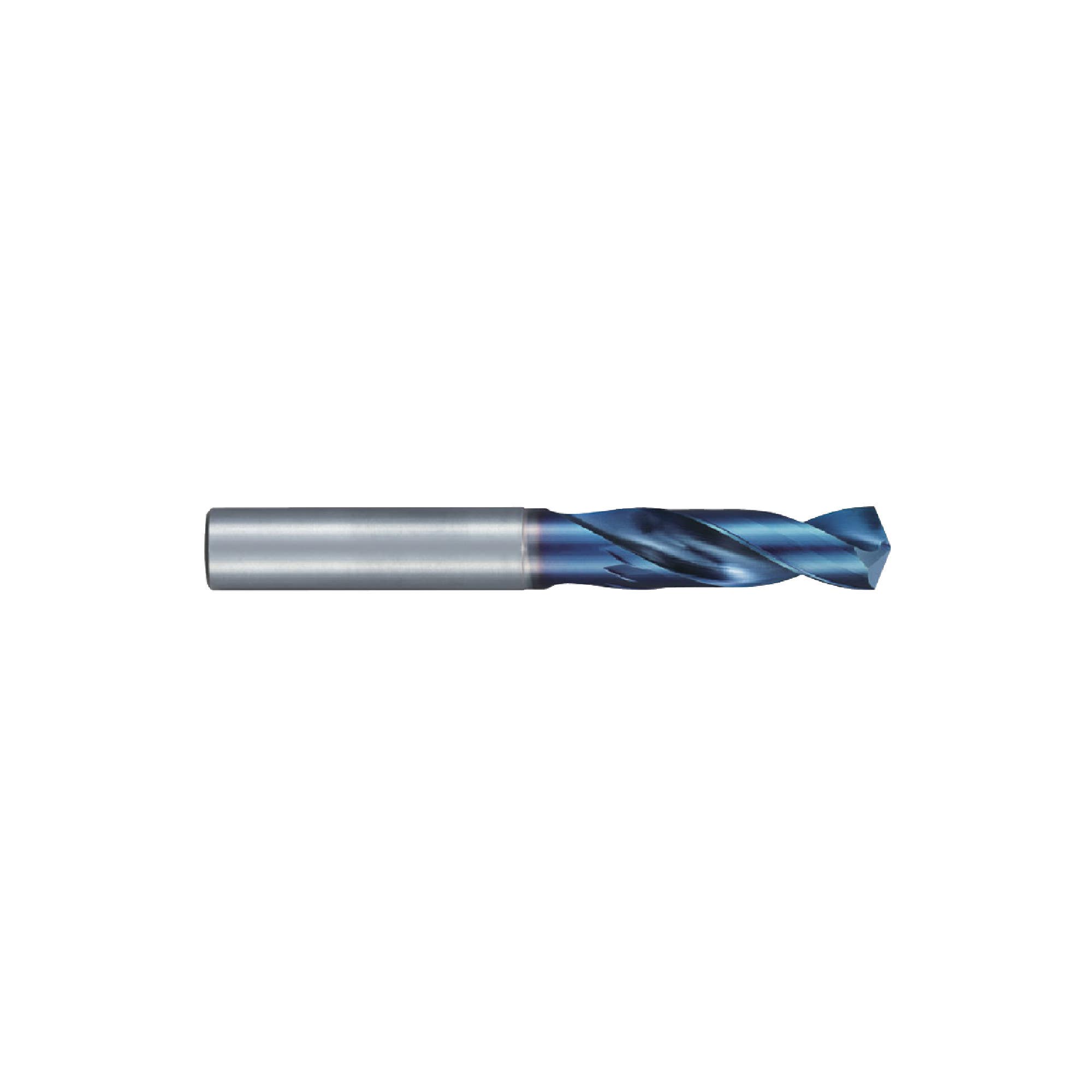

Nachi 100% Original 1547905 11/32 Size 135° Solid Carbide Screw Machine Length Stub Drill 1 pcs
Original price was: $45.25.$15.08Current price is: $15.08.
- New carbide material adds both hardness & toughness.
- Improved wear resistance & chipping resistance.
- New straight cutting edges breaks up cutting stress.
- Improved strength against corner chipping.
- New coating REVO-D suitable for drilling multiple materials.
- Effective on aluminum (casting & billet), brass & copper, cast iron (ductile & cast), stainless steel (400 & 300 series, as well as 17-4 PH), titanium & nickel alloys, & hardened steels up to 50HRc.
- High oxidation & wear resistance.
- Low friction & smooth chip evaluation from super smooth surface treatment.
- Helix angle: 30°
| Brand | NACHI |
|---|---|
| Size Type | Fractional |
| Size | 11/32" |
| Drill Point Angle | 135° |
| Tool Material | Solid Carbide |
| Finish Coating | REVO D |
| Shank Diameter | 10.00mm |
| Overall Length | 83.00mm |
| Type | Aqua Revo Carbide Stub Drill |
| Flute Length | 40mm |
| Cutting Direction | Right Hand |
| Model # | 1547905 |
| Point Sharpening Type | 2 Rake + XR Type |
| Helix Angle | 30° |
| Decimal Size | .3438" |
| Drill Type | Screw Machine Length |
| Flute Shape | Helical |
| Hole Depth | 3XD |
| No. of Flutes | 2 |
| Prop. 65 | Yes |
| Series | 9861 |
| Shank Style | Straight Shank |
| Single or Double End | Single |
| Tolerance_Cutter Diameter | h7 |
| Tolerance_Shank Diameter | h6 |
| UNSPSC | 23241635 |
| Workpiece Material | Steels, Aluminum, Brass, Copper, Cast Iron, Stainless Steel, Titanium & Nickel Alloys, & Hardened Steels |
| Country of Origin | JAPAN |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
