Nachi 100% Original 1561530 1/8 140° 62.00mm OAL Solid Carbide Coolant Fed Drill 1 pcs
Original price was: $37.40.$12.47Current price is: $12.47.
- Coolant holes designed to increase flow rate by more than twice that of conventional holes.
- New hole design produces a decrease in work hardening, prolonging tool life.

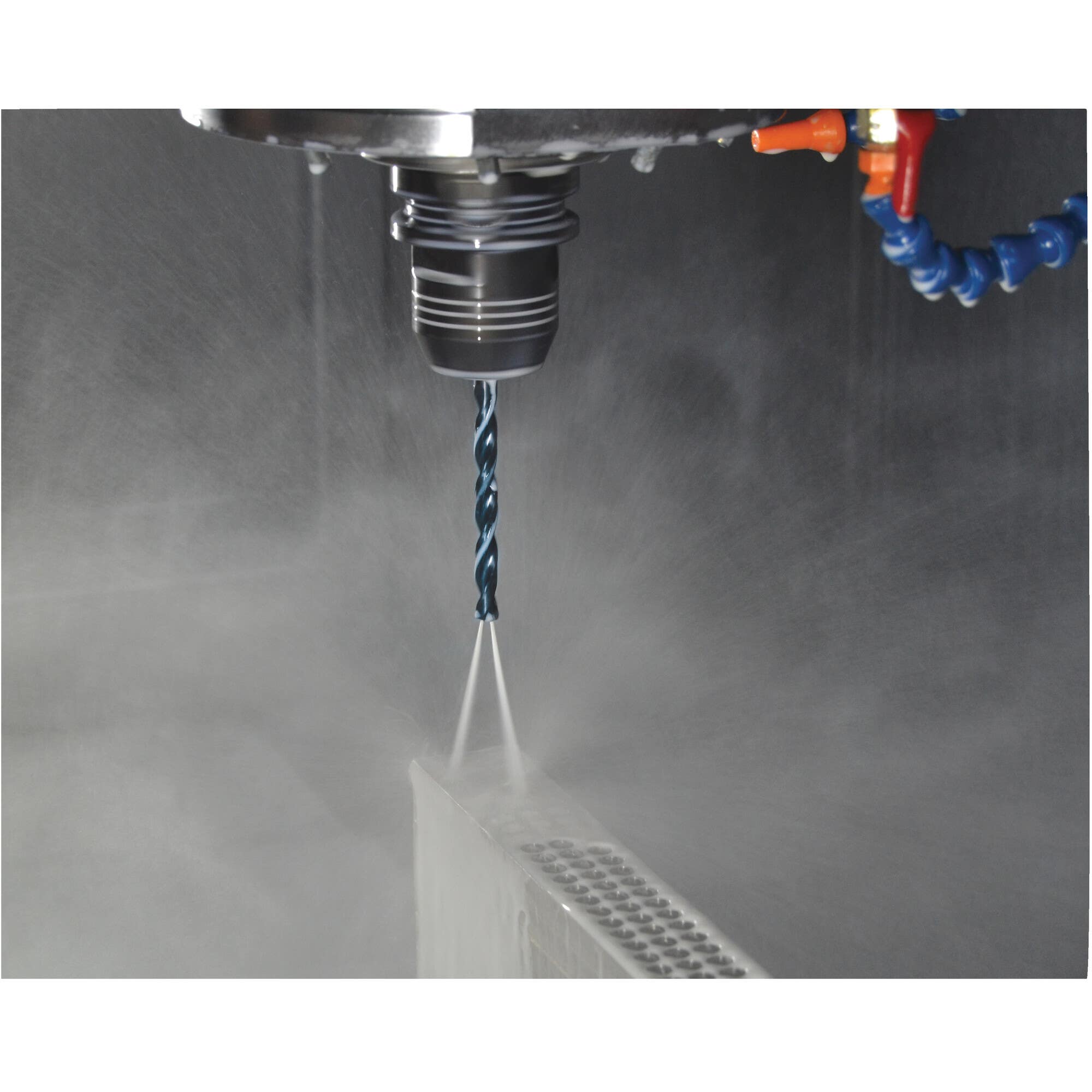

- Power cooler s unique design directs coolant to the cutting edge, resulting in longer tool life by keeping the drill cooler when drilling.
- Increase number of cutting holes by up to 1.8 times.
- Incredible tool life even in stainless steel.
- Helix angle 26°/30°.
| Brand | NACHI |
|---|---|
| Size Type | Fractional |
| Size | 1/8" |
| Drill Point Angle | 140° |
| Tool Material | Solid Carbide |
| Finish Coating | REVO D |
| Shank Diameter | 6.00mm |
| Overall Length | 62.00mm |
| Type | Aqua Revo Coolant Through 3XD Carbide Drill |
| Morse Taper | None |
| Flute Length | 20mm |
| Model # | 1561530 |
| Helix Angle | 26/30° |
| Application | High Performance Holemaking |
| Decimal Size | .1250" |
| Drill Type | Coolant Fed |
| Flute Shape | Helical |
| Hole Depth | 3XD |
| No. of Flutes | 2 |
| Prop. 65 | Yes |
| Series | 9873 |
| Shank Style | Straight Shank |
| Single or Double End | Single |
| Tolerance_Cutting Diameter | h7 |
| Tolerance_Shank | h6 |
| Workpiece Material | Structural Steel. Carbon Steel, Alloy Steel, Heat Treated Steel, Hardened Steel Up To 40-50 HRc, Stainless Steel (SUS 304, 316, 420, 630), & Cast Iron. |
| Country of Origin | JAPAN |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
