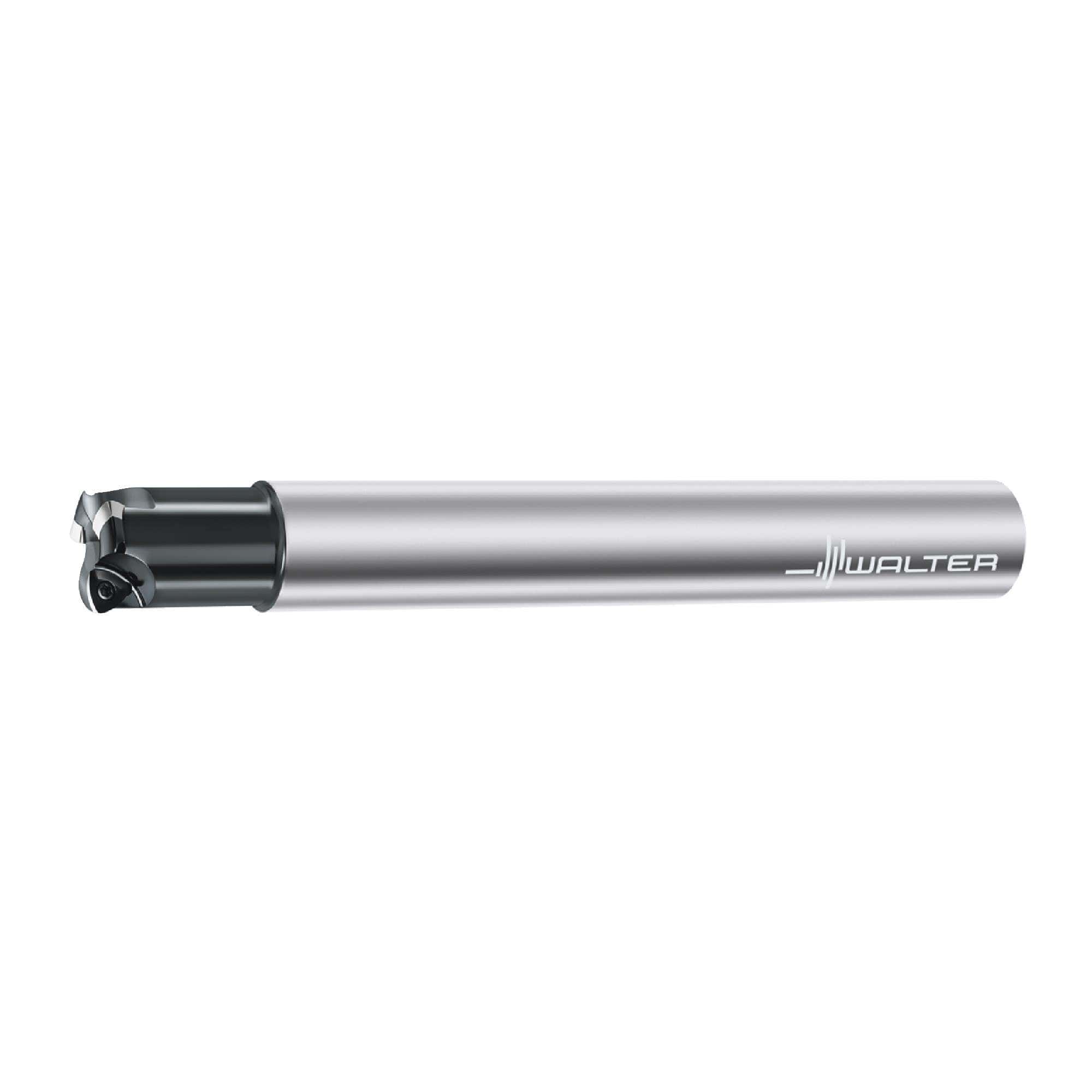

Walter 100% Original 5108534 - F2330.UZ26.031.Z03.01,5, 1.250 High Feed Indexable End Mill for P2633R14 Inserts, WELDON, Right Hand 1 pcs
Original price was: $204.40.$102.20Current price is: $102.20.
- High feed milling tool with economical three cutting edges for heavy metal removal
- Insert geometries provides excellent cutting geometries for reduced tool pressure
- Screw on system and end mill design provides great chip evacuation and interference
- Coolant thru system allows for better chip evacuation and longer tool life with less heat
- Trigon shaped insert with three cutting edges
- Available in multiple insert geometries and grades
- Postive rake angle to reduce tool pressure
- Coolant thru capable.
- Multiple lengths per cutting diameters
- Cylindrical and weldon shanks available
- Optimized gullets
- Suitable for multiple all materials
| Brand | WALTER |
|---|---|
| Use Insert # | P2633R14 |
| Cutter Diameter | 1.250" |
| Shank Diameter | 1.000" |
| No. of Inserts | 3 |
| Maximum Depth of Cut | 0.059" |
| Overall Length | 10.000" |
| Hand | Right Hand |
| Coolant Use | Yes |
| Shank Type | WELDON |
| Series | F2330 |
| Accepts | P2633R14 |
| Application | Face Milling, Ramping, Helical Milling (Circular Interpolation), Contour Milling, & Plunging |
| Approach Angle | 75° |
| Designation | F2330.UZ26.031.Z03.01,5 |
| Head Length | 3.000" |
| Model # | 5108534 |
| Prop. 65 | Yes |
| Use Torx Screw # | FS923 |
| Use Torx Wrench # | T-15 |
| Weight | 1.32 lbs. |
| Country of Origin | GERMANY |
| Shipping Restrictions | UPS Ship (drop ship item) |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
