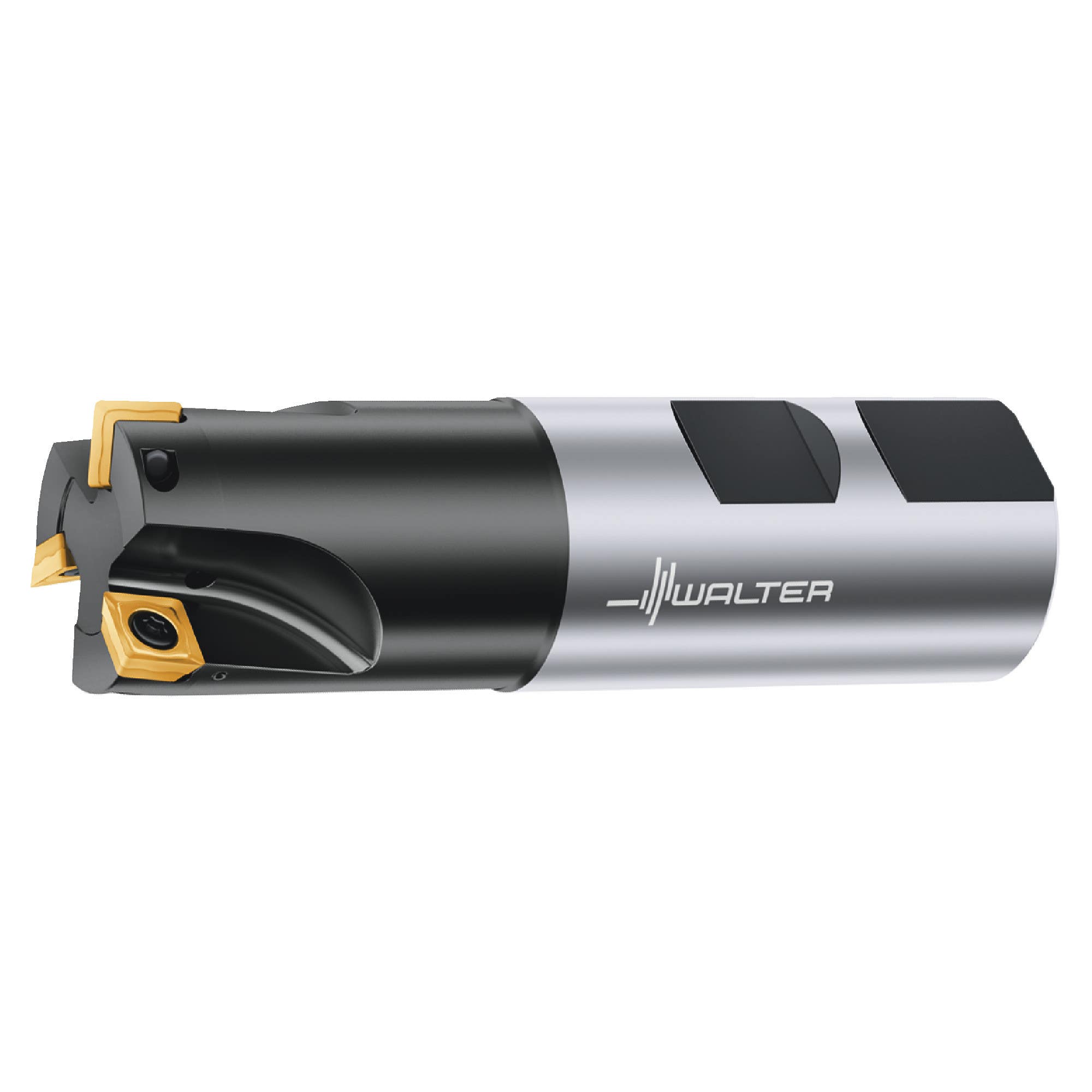

Walter 100% Original 6556157 - M4132.026-W26-02-09, 1.000 90 Degree Indexable End Mill for SDMT09T3__ Inserts, Weldon, Right Hand 1 pcs
Original price was: $170.40.$85.20Current price is: $85.20.
- Available in multiple inserts sizes for varying depth of cuts and feed rates.
- Inserts can be used in both 90° M4132 square shoulder mills and M4002 high feed mills.
- Coolant thru system allows for better chip evacuation and longer tool life with less heat.
- Screw on system for less chip interference.
- Nickel plated bodies help with lubricity.
- Available in multiple insert sizes, chip breakers, tolerances and grades.
- Indexable insert with a fully ground circumference is available for maximum precision.
- Versatile 90° approach angle.
- 15° relief angle to reduce tool pressure.
- Coolant thru capable.
- Simple screw clamping.
- Progressive cutting edges and high rake angles.
- Multiple length and style shanks.
- Strong durable nickel plated cutter bodies.
- Suitable for multiple materials.
| Brand | WALTER |
|---|---|
| Use Insert # | SDMT09T3__ |
| Cutter Diameter | 1.000" |
| Shank Diameter | 1.000" |
| No. of Inserts | 2 |
| Maximum Depth of Cut | 0.331" |
| Overall Length | 3.622" |
| Hand | Right Hand |
| Coolant Use | Yes |
| Shank Type | WELDON |
| Series | M4132 |
| Accepts | SDGT1204__ SDHT1204__ SDMT1204__ |
| Application | Face Milling, Slotting, & Shouldering |
| Approach Angle | 90° |
| Designation | M4132.026-W26-02-09 |
| Head Length | 1.339" |
| Model # | 6556157 |
| Prop. 65 | Yes |
| Use Torx Screw # | FS2266 |
| Use Torx Wrench # | T-10 |
| Weight | 1 lbs. |
| Country of Origin | GERMANY |
| Shipping Restrictions | UPS Ship (drop ship item) |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
