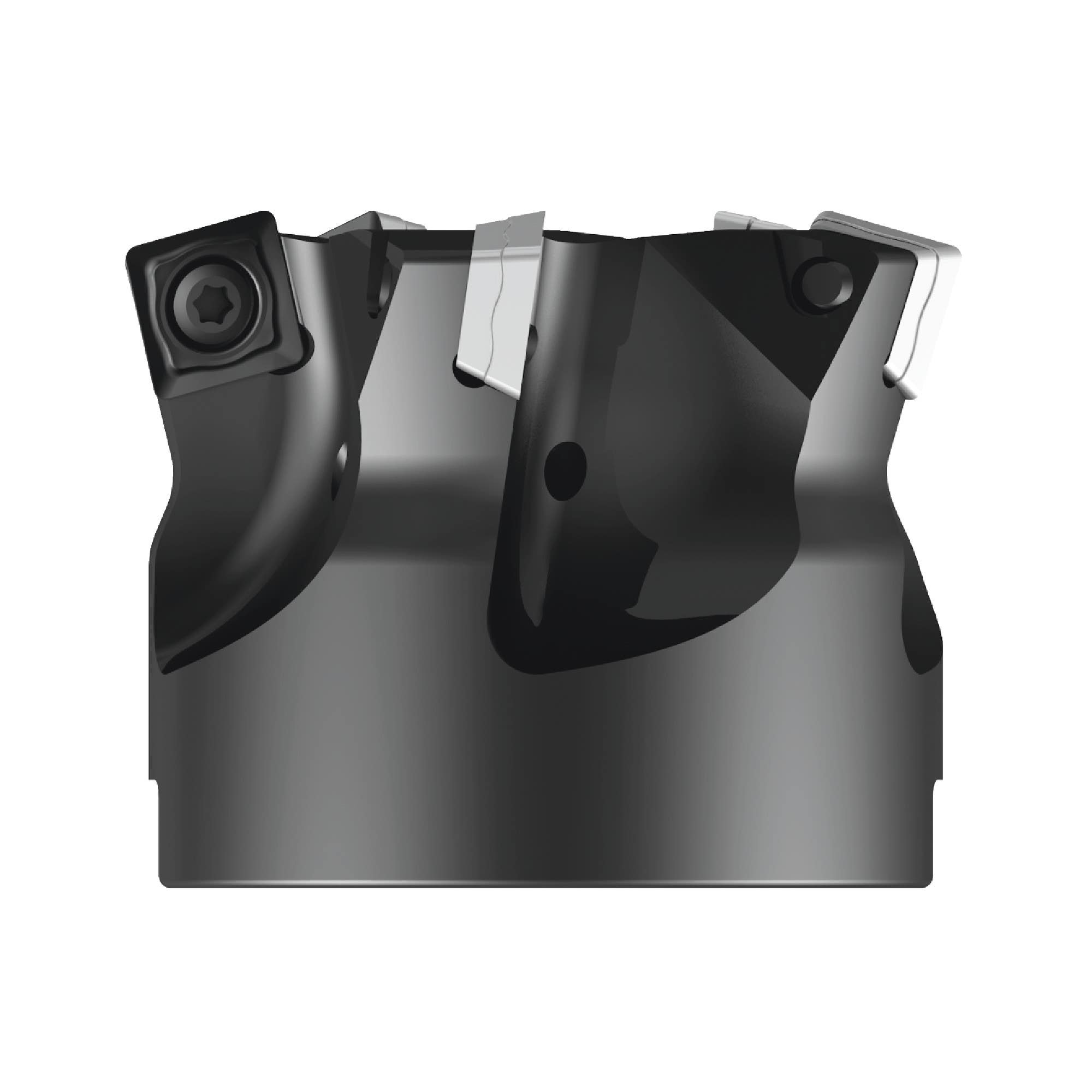

Walter 100% Original 6796961 - M4002.076-B26-06-02, 3.000 Hi-Feed Indexable Face Mill for SDMT1204__ Inserts, Right Hand 1 pcs
Original price was: $349.20.$174.60Current price is: $174.60.
- Used for high feed applications that excel in removing a high amount of material.
- Available in multiple inserts sizes for varying depth of cuts and feed rates.
- Inserts can be used in both 90° M4132 square shoulder mills and M4002 high feed mills.
- Coolant thru system allows for better chip evacuation and longer tool life with less heat.
- Screw on system for less chip interference.
- Nickel plated bodies help with lubricity.
- Available in multiple insert sizes, chip breakers, tolerances and grades.
- Indexable insert with a fully ground circumference is available for maximum precision.
- Versatile 90° approach angle.
- 15° relief angle to reduce tool pressure.
- Coolant thru capable.
- Simple screw clamping..
- Progressive cutting edges and high rake angles
- Multiple length and style shanks.
- Strong durable nickel plated cutter bodies.
- Suitable for multiple materials.
| Brand | WALTER |
|---|---|
| Use Insert # | SDMT1204__ |
| Cutter Diameter | 3.000" |
| Arbor Hole Diameter | 1.000" |
| No. of Inserts | 6 |
| Maximum Depth of Cut | 0.079" |
| Overall Height | 1.969" |
| Hand | Right Hand |
| Coolant Use | Yes |
| Series | M4002 |
| Accepts | SDGT1204__ SDHT1204__ SDMT1204__ |
| Application | Face Milling, Slotting, Shouldering, Ramping, Helical Milling (Circular Interpolation), & Plunging. |
| Approach Angle | 15° |
| Designation | M4002.076-B26-06-02 |
| Model # | 6796961 |
| Prop. 65 | Yes |
| Use Socket Head # | FS1519 |
| Use Torx Screw # | FS1453 |
| Use Torx Wrench # | T-15 |
| Weight | 2.6 lbs. |
| Country of Origin | GERMANY |
| Shipping Restrictions | UPS Ship (drop ship item) |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
