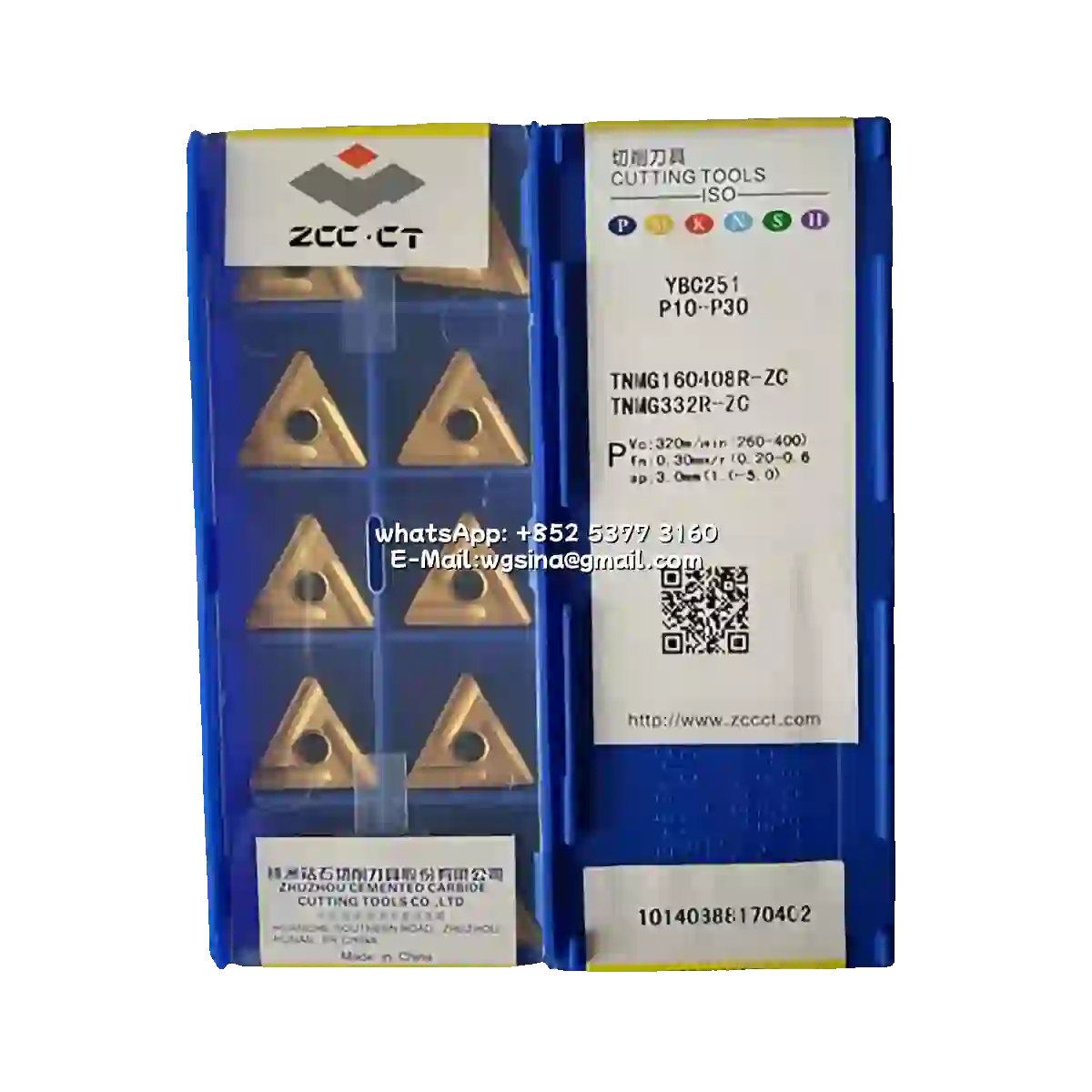

ZCC TNMG160408R-ZC YBC251 Carbide Insert – Triangle | Steel (10 PCS)
Original price was: $10.00.$5.00Current price is: $5.00.
ZCC TNMG160408R-ZC YBC251 – Carbide Insert
The ZCC TNMG160408R-ZC YBC251 is a high-performance carbide insert designed for finish machining of steel. Features advanced tin coating technology for superior wear resistance and extended tool life. Triangle insert geometry provides optimal performance.
TNMG 160408 – Cutting conditions … The above data is given for alloy steel material at average application stability. For more accurate results, use the Speeds and Feeds Calculator. The cutting speeds depend mostly on the workpiece material and carbide grade, and the influence of the insert's
Key Specifications
| Brand | ZCC |
| Model | TNMG160408R-ZC |
| Grade | YBC251 |
| Coating | tin |
| Insert Shape | Triangle |
| Clearance Angle | 0° |
| IC (Inscribed Circle) | 16mm |
| Thickness | 0.4mm |
| Nose Radius | 0.8mm |
| Workpiece Materials | Steel |
| Application | Finish Machining |
| Geometry | Positive |
| Quantity | 10 PCS |
Grade YBC251 Characteristics
ZCC YBC251 grade features tin coating technology, specifically engineered for finish machining operations on steel. This grade offers an excellent balance of wear resistance and toughness for reliable performance in demanding machining environments.
Features & Benefits
- 100% Genuine ZCC – Original product with full quality guarantee
- tin Coating – Superior wear resistance and extended tool life
- Precision Ground – Tight dimensional tolerances for consistent performance
- Optimized Chip Breaker – Efficient chip control reduces machine downtime
- Professional CNC Tooling – Compatible with major CNC machine brands
Recommended Applications
- Finish Machining of steel
- CNC lathe and machining center compatible
- Suitable for both wet and dry machining conditions
Note: Compatible tool holders sold separately. Please verify insert-holder compatibility before ordering.
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
