Sale!

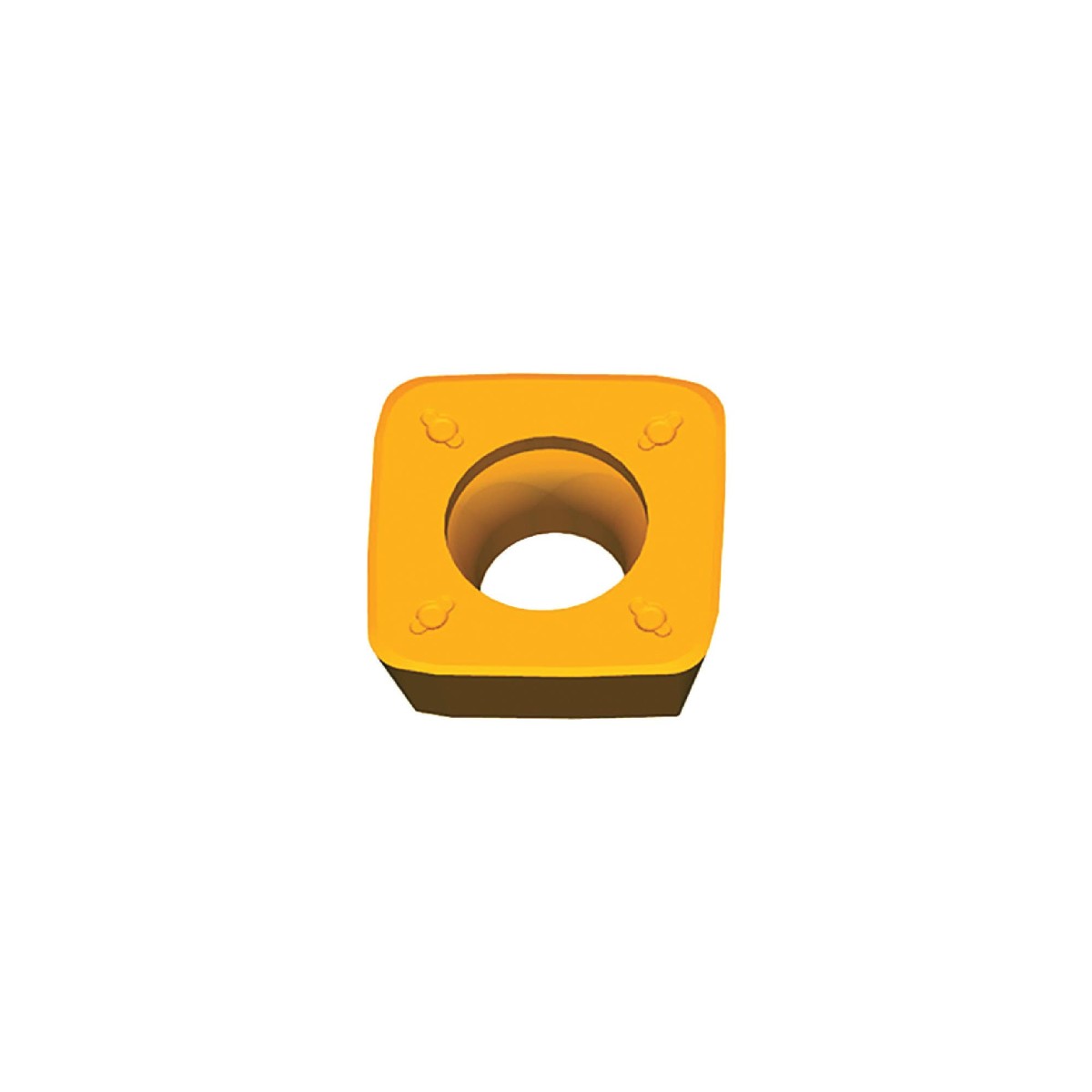

Zcc.ct 100% Original 4230000417 - SDMT3(2.5)3-DM YBG202, Square, Indexable Carbide Milling Insert 10 pcs
Original price was: $33.64.$16.82Current price is: $16.82.
| Brand | ZCC-CT |
|---|---|
| Insert Shape & Angle | Square |
| Tool Material | Carbide |
| Insert Style | SDMT |
| Insert Size | 3(2.5)3 |
| Chipbreaker | DM |
| Grade | YBG202 |
| Insert IC | 0.375" |
| Insert Thickness | 0.156" |
| Insert Radius | 0.047" |
| Relief Angle | 15° |
| Coating | PVD / TiAlN |
| Feed Rate | 0.032"-0.056" |
| Series | XMR01 |
| Insert Hand | Right Hand |
| Insert Length | 0.375" |
| Model # | 4230000417 |
| ANSI | SDMT3(2.5)3-DM |
| Coated | YES |
| Designation | SDMT3(2.5)3-DM YBG202 |
| I.C. | 0.375" |
| Insert # | SDMT3(2.5)3-DM |
| ISO | SDMT09T312-DM YBG202 |
| ISO K CAST IRON | X |
| ISO M STAINLESS STEELS | X |
| ISO P STEEL | X |
| Material | Carbide |
| Maximum Depth of Cut | 0.055" |
| No. of Cutting Sides | 4 |
| Prop. 65 | Yes |
| Surface Feet Per Minute | 300-700 |
| Weight | 0.006 lbs. |
| Country of Origin | IMPORT |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
