Sale!

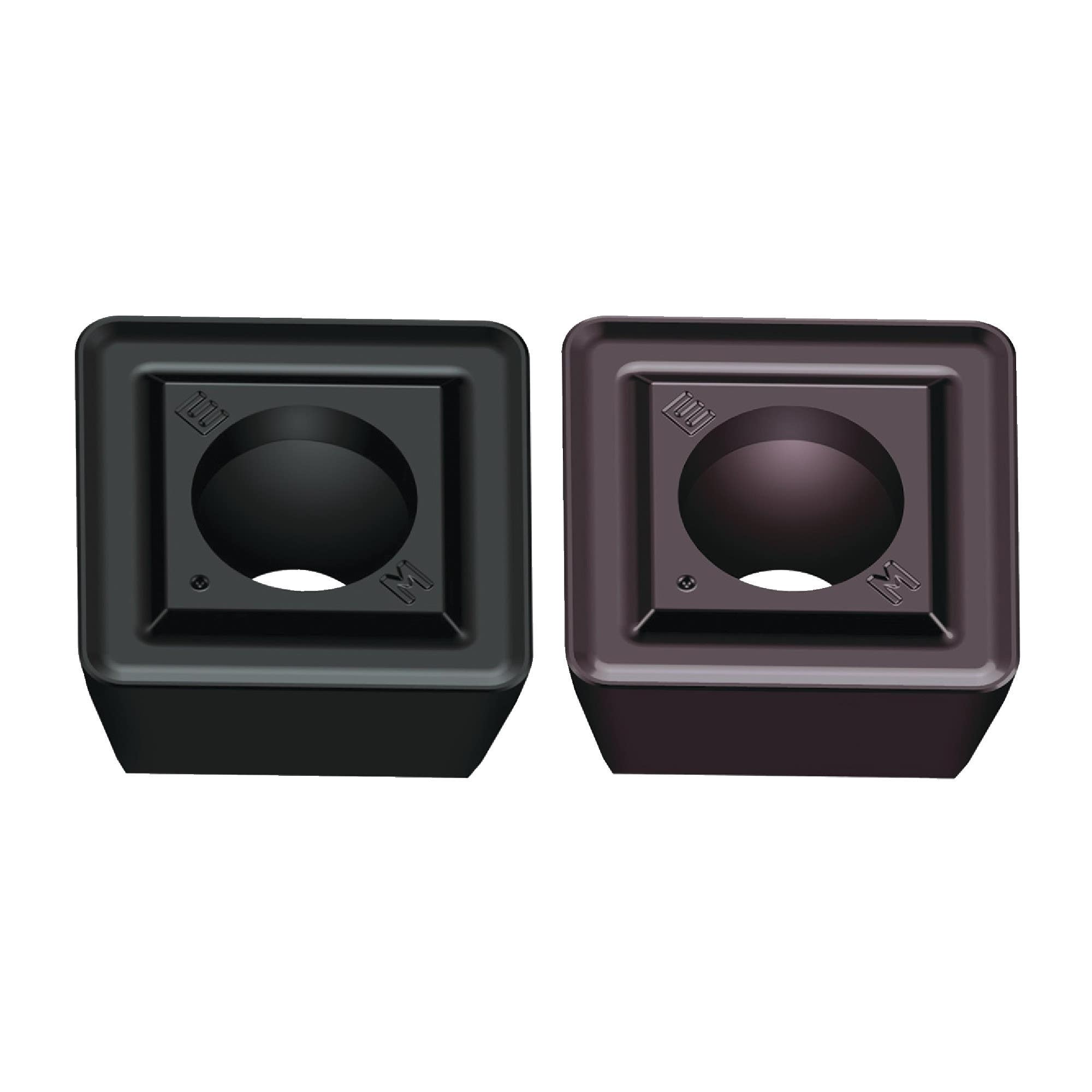

Zcc.ct 100% Original 4230004079 - SPGT050204-EM YBG212, Indexable Carbide Multiple Point Drilling Insert for ZTD Series 10 pcs
Original price was: $29.48.$14.74Current price is: $14.74.
- PM chip breaker recommended for Steels and Cast Irons.
- EM chip breaker recommended for Stainless Steels and Non-Ferrous materials.
- YBG205 grade for peripheral inserts.
- YBG212 grade for center inserts.
| Brand | ZCC-CT |
|---|---|
| Insert Shape & Angle | 90° Square |
| Tool Material | Carbide |
| Insert Style | SPGT |
| Insert Size | 050204 |
| Chipbreaker | EM |
| Grade | YBG212 |
| Insert IC | 0.197" |
| Insert Thickness | 0.094" |
| Insert Radius | 0.016" |
| Relief Angle | 11° |
| Coating | PVD / TiAlN |
| Series | ZTD |
| Insert Length | 0.197" |
| Model # | 4230004079 |
| Coated | YES |
| Cutting Edge Length | 0.197" |
| Designation | SPGT050204-EM YBG212 |
| Edges of Cut | 4 |
| Insert # | SPGT050204-EM |
| Insert Width | 0.197" |
| ISO | SPGT050204-EM YBG212 |
| ISO K CAST IRON | X |
| ISO M STAINLESS STEELS | X |
| ISO N NON FERROUS | X |
| ISO P STEEL | X |
| No. of Cutting Sides | 4 |
| Prop. 65 | Yes |
| Shape and Angle | 90° Square |
| Weight | 0.001 lbs. |
| Country of Origin | IMPORT |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
