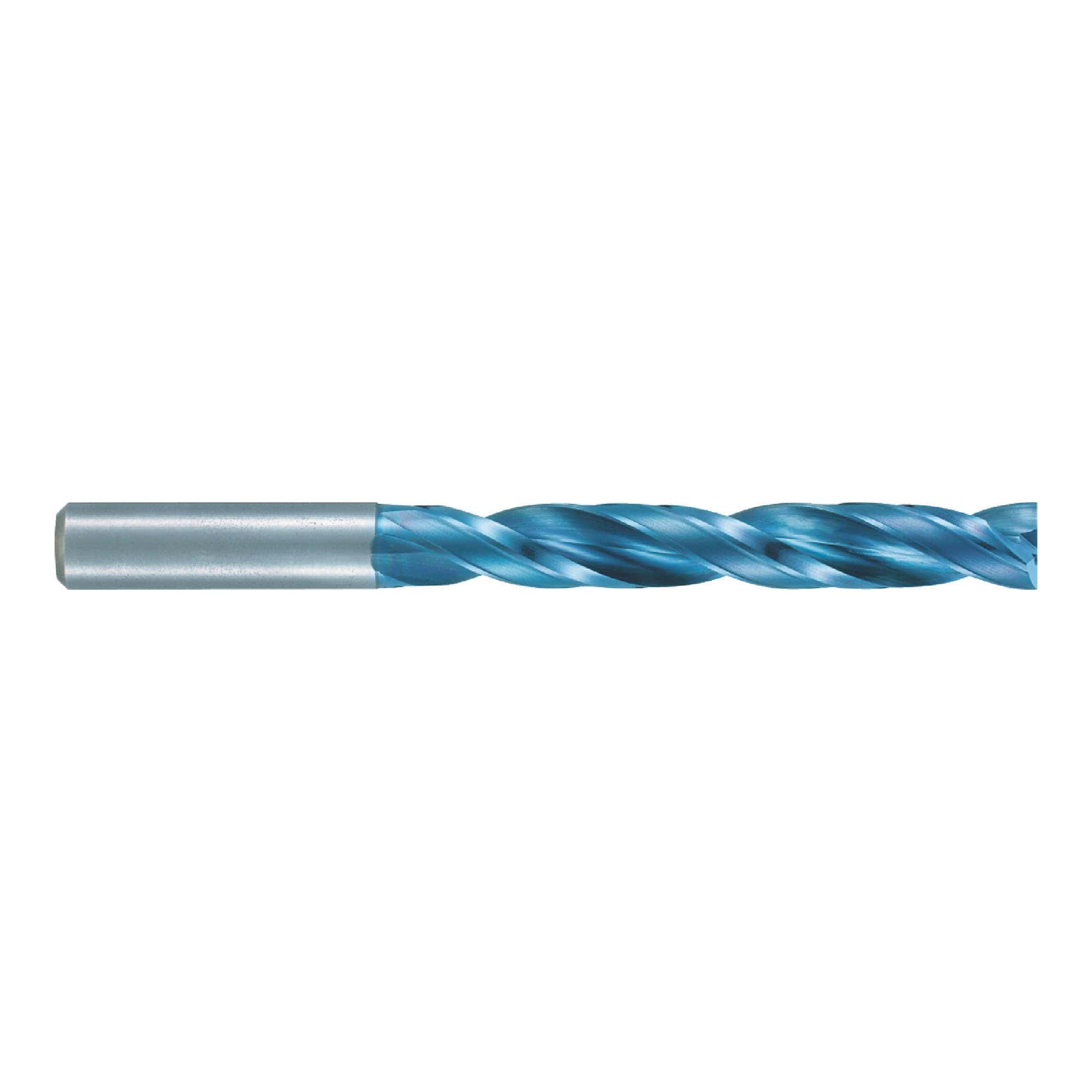

Nachi 100% Original 0720350 8.90mm 180° Solid Carbide Flat Bottom High Performance Drill 1 pcs
Original price was: $129.42.$43.14Current price is: $43.14.
- One drill does it all-eliminates the need to use a center drill or end mill on inclined or curved surfaces.
- Self lubricating AQUA EX coating offers superior resistance.
- Ideal for flat bottom applications in the oil & gas, automotive as well as general industries.
- True 180° flat cuttung edges creates minimal exit burr in tubing & thin plates.
- Improved heat & wear resistance with our AQUA EX Coating (TiAlN + AlTiCR).
- Ideal for counterboring, angled holes & intersecting holes.
| Brand | NACHI |
|---|---|
| Size Type | Metric |
| Size | 8.90mm |
| Drill Point Angle | 180° |
| Tool Material | Solid Carbide |
| Finish Coating | Aqua EX TiAIN + AlTiCR |
| Shank Diameter | 9.00mm |
| Overall Length | 117.00mm |
| Type | Flat Bottom Drill |
| Flute Length | 58mm |
| Cutting Direction | Right Hand |
| First Choice For: | High Temp Exotic Alloys |
| Model # | 0720350 |
| Helix Angle | 30° |
| Coolant Through | coolant |
| Cutting Diameter | 8.9mm |
| Decimal Size | .3504" |
| Drill Type | Flat Bottom |
| Effective Length | 59mm |
| Flute Shape | Spiral |
| Helix Direction | Right Hand |
| Hole Depth | 5xD |
| No. of Flutes | 2 |
| Prop. 65 | Yes |
| Series | L9814 |
| Shank Style | Straight Shank |
| Single or Double End | Single |
| Tolerance_Cutting Diameter | +0/-.0006" |
| Web Style | Double margin & corner chamfer |
| Weight | 0.1953588685718442 |
| Workpiece Material | Structural Steels, Carbon Steels, Cast Irons, Alloy Steels, Heat Treated Steels, Mold Steels, Hardened Steels, Aluminum Alloys |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials |
| Country of Origin | JAPAN |
| Shipping Restrictions | UPS Ship (drop ship item) |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
