Sale!

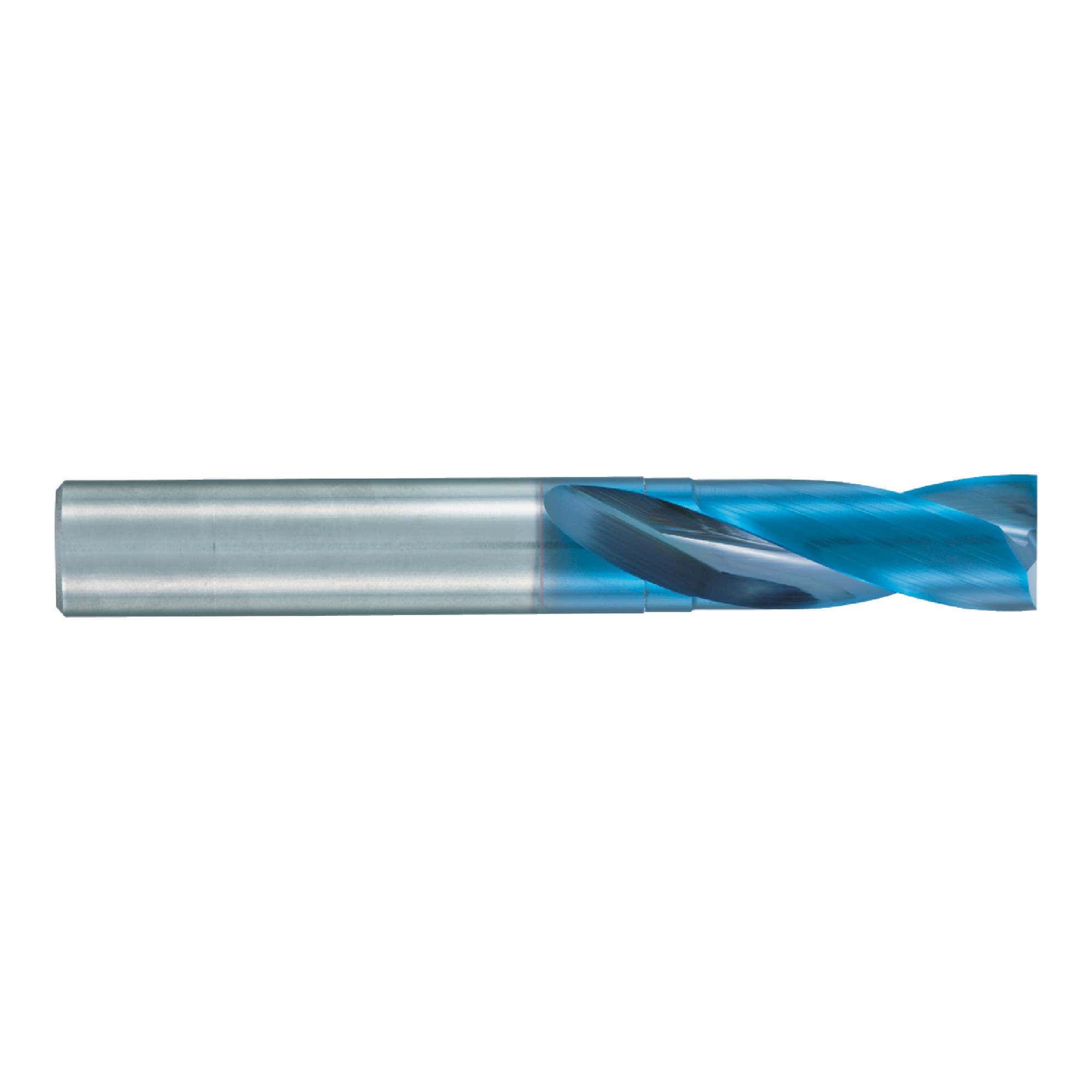

Nachi 100% Original 1455761 11/16 180° Solid Carbide Flat Bottom High Performance Drill 1 pcs
Original price was: $201.72.$67.24Current price is: $67.24.
- For use in Structural Steel,s Carbon Steels, Hardened Alloys, Mold Steels, and Hardened Steels to 50HRC.
- True 180° flat bottoming applications.
- Combined counterbore and pilot hole in single pass.
- Better heat and wear resistance from Aqua EX coating for a super long life.
- True 180° edge greatly reduces exit burrs.
- Counter boring and guide hole drilled at the same time.
- Excellent for thin or uneven surfaces without the need of center drills.
| Brand | NACHI |
|---|---|
| Size Type | Fractional |
| Size | 11/16" |
| Drill Point Angle | 180° |
| Tool Material | Solid Carbide |
| Finish Coating | Aqua EX TiAIN + AlTiCR |
| Shank Diameter | 16.00mm |
| Overall Length | 125.00MM |
| Type | Flat Bottom Drill |
| Flute Length | 79mm |
| Cutting Direction | Right Hand |
| First Choice For: | High Temp Exotic Alloys |
| Model # | 1455761 |
| Helix Angle | 20° |
| Cutting Diameter | 11/16" |
| Decimal Size | .6875" |
| Drill Type | Flat Bottom |
| Effective Length | 81mm |
| Flute Shape | Spiral |
| Helix Direction | Right Hand |
| Hole Depth | 3xD |
| No. of Flutes | 2 |
| Prop. 65 | Yes |
| Series | L9611 |
| Shank Style | Straight Shank |
| Single or Double End | Single |
| Tolerance_Cutting Diameter | +0/-.0007" |
| Weight | 0.75 |
| Workpiece Material | Structural Steels, Carbon Steels, Cast Irons, Alloy Steels, Heat Treated Steels, Hardened Steels, Stainless steels, Aluminum Alloys, Aluminum Castings |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials |
| Country of Origin | JAPAN |
| Shipping Restrictions | UPS Ship (drop ship item) |
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 18 × 4 cm |
