Original Iscar 3-2-GN IC9150 Carbide Insert | Steel & More WNMG WNMG 3-2-GN IC9150

Name: Original Iscar 3-2-GN IC9150 Carbide Insert | Steel &amp; More WNMG WNMG 3-2-GN IC9150
Brand: Iscar
SKU: WNMG 3-2-GN IC9150
Rating: 4.8 (18 reviews)

Brand: Iscar

$17.01

★★★★⯨ 4.8 (18 reviews)

Buy original Iscar 3-2-GN (WNMG 3-2-GN IC9150) IC9150 Carbide Insert for steel, stainless steel, cast iron, titanium machining. tin coating. From $17.01. Fre…

500 in stock

Need a different quantity, brand or specification?Send us the part number — typical reply time: a few hours.

WhatsApp Inquiry ✉ Email 📞 +1 743 279 9499

🔒Guaranteed Safe & Secure Checkout
🚚Free shipping on orders over $99
↩️30-day money-back guarantee

We accept

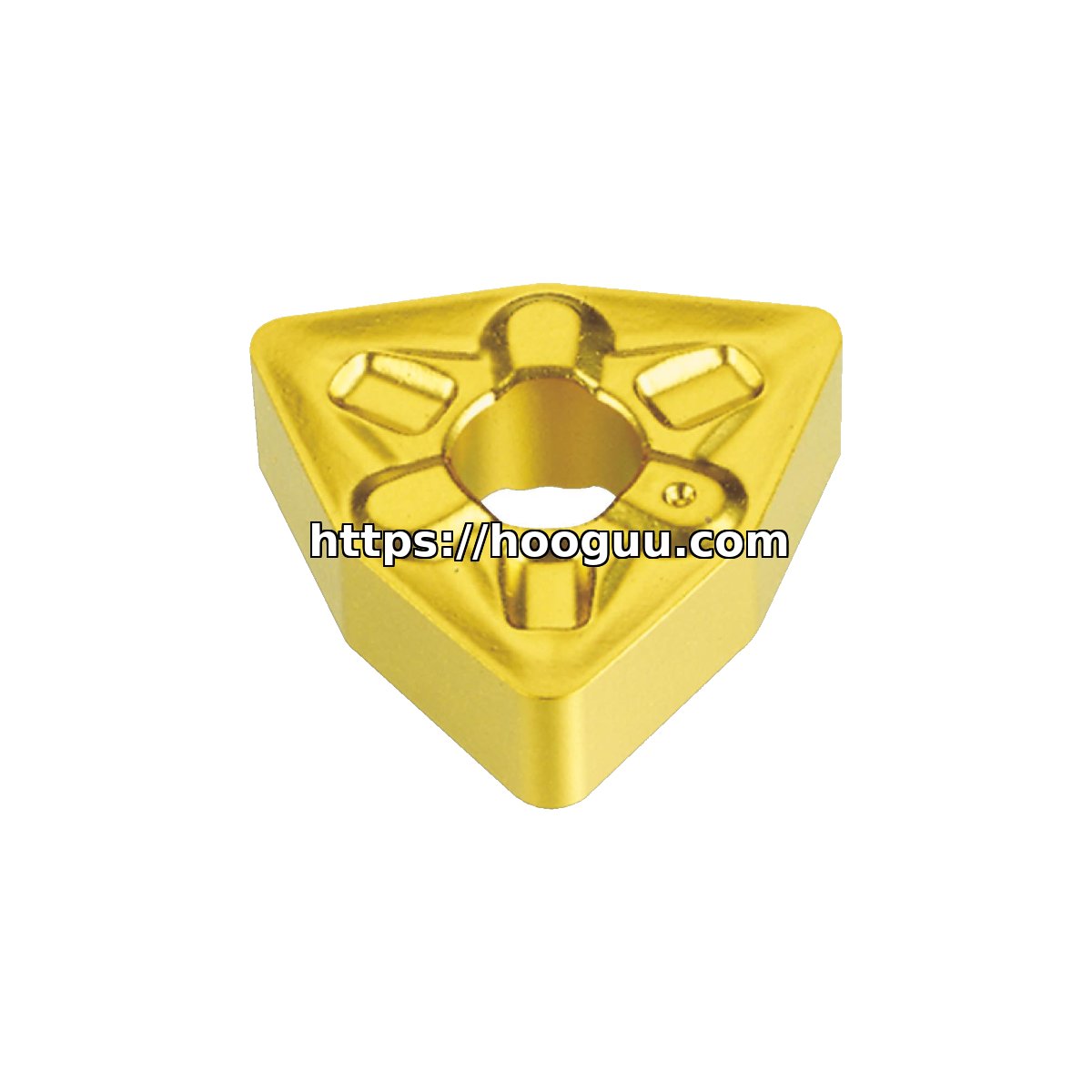

Iscar 3-2-GN IC9150 – Carbide Insert

Specifications:
Subcategory: Indexable Inserts & Blades
Leaf Category: Turning & Boring Carbide Inserts
Brand: ISCAR
Model #: 5507228
Tool Material: Carbide
Unit of Measure: Each
Inventory Status: Stock
Catalog Page: 233
Grade: IC9150
Chipbreaker 3875: GN
Coating: CVD / TiCN+Al2O3+TiN
Insert IC: 3/8″
Insert Radius: 0.031″
Insert Shape & Angle: 80° Trigon
Insert Size: 3(2.5)2
Insert Style: WNMG
Insert Thickness: 5/32″
Relief Angle: 0°
Insert #: WNMG 3-2-GN
Weight: 0.015 lbs.
Designation: WNMG 3-2-GN IC9150

Industry references for Iscar 3-2-GN: ISC Metals| Turning > External Turning > Turning Indexable Inserts > WNMG-GN | ISC5506967|Turning Indexable Inserts WNMG 432-GN IC9150 Double-Sided Trigon Inserts for General Applications ISC Iscar | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Steel | Cast Iron | Carbide Turn Negative Inserts Chip Breaker Type GN Corner Radius (RE) 0.0315″ Cutting E

Key Specifications

Brand	Iscar
Model	3-2-GN
Grade	IC9150
Coating	tin
Workpiece Materials	Steel, Stainless Steel, Cast Iron, Titanium
Application	Rough Machining
Geometry	Negative
Quantity	1 PCS

Why Grade IC9150

Iscar’s IC9150 sits between general-purpose and high-performance offerings — strong enough for production rough machining on steel, stainless steel, cast iron, titanium, conservative enough to forgive the occasional spike in feed rate. tin layer keeps cutting temperatures workable.

Features & Benefits

100% Genuine Iscar – Original product with full quality guarantee, traceable batch.
Predictable Wear – Even flank wear pattern simplifies tool-life prediction and scheduling.
tin Coating – Superior wear resistance and extended tool life under continuous load.
Bulk Pricing Available – Discount tiers for production-volume orders; contact sales.
QC Inspected – Each batch sampled for edge profile, dimensional accuracy, and coating adhesion.
Optimized Chip Breaker – Engineered chip geometry reduces re-cutting and machine downtime.

Recommended Applications

Rough Machining of steel, stainless steel, cast iron, titanium in production CNC lines
Pairs well with through-coolant setups for chip evacuation
Designed for shop conditions typical of Iscar tooling users worldwide
Holds dimensional tolerance over multiple indexings (insert)

Buying Considerations

Single-pack option — useful for prototype runs or qualification before bulk commitment. Entry-tier pricing makes this a low-risk option for trialing Iscar tooling on a new material.

Tip: Match this insert to a holder whose seat matches the ISO designation. If you’re unsure, send us the holder model and we’ll confirm compatibility before shipping.

Weight	0.015 kg
Dimensions	15 × 18 × 4 cm

SKU: WNMG 3-2-GN IC9150 Category: Insert Brand: Iscar
