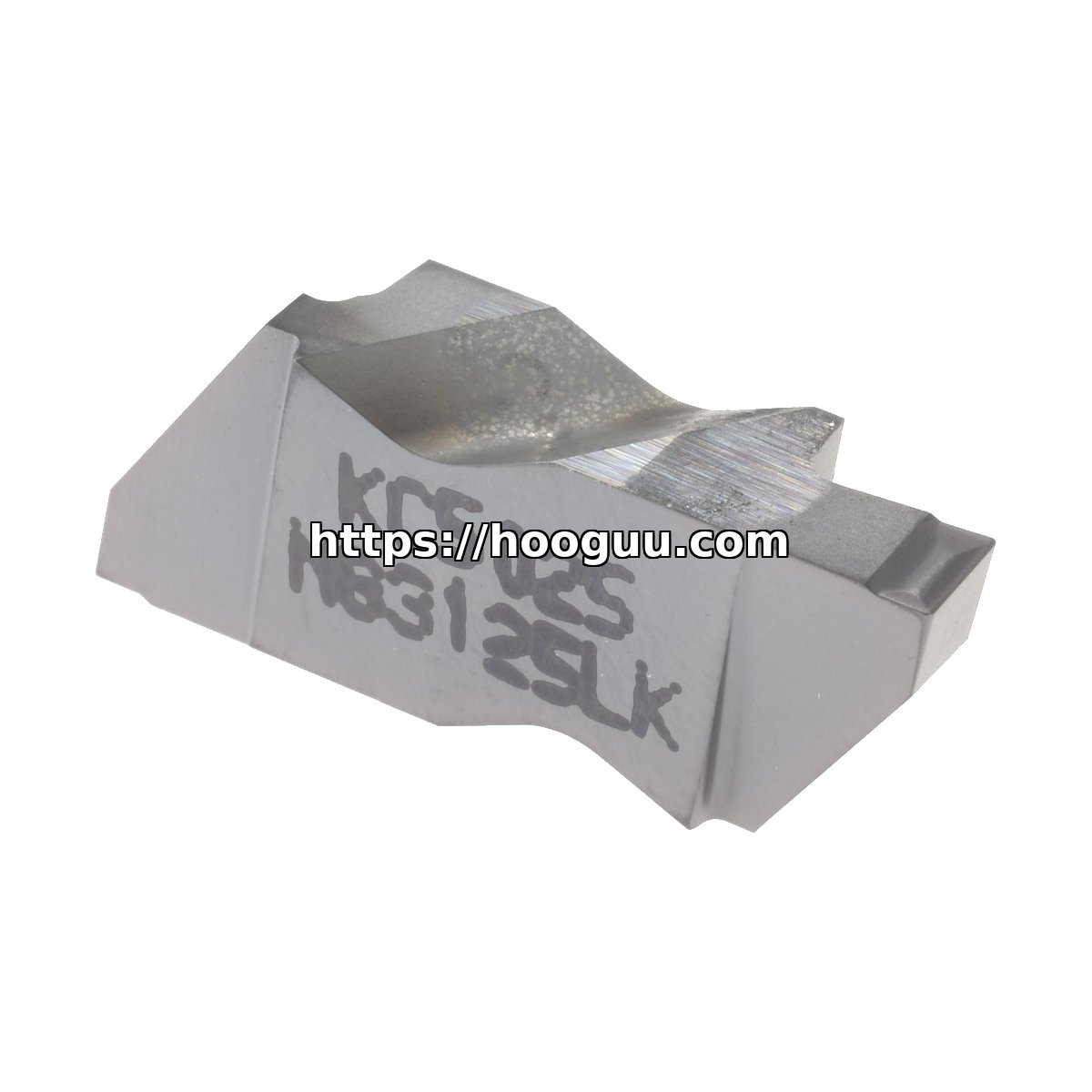

Original Kennametal KC5025 KC5025 Carbide Grooving/Parting Insert – Parallelogram 55° | Titanium, Non-ferrous NG3125LK NG3125LK KC5025

Name: Original Kennametal KC5025 KC5025 Carbide Grooving/Parting Insert - Parallelogram 55° | Titanium, Non-ferrous NG3125LK NG3125LK KC5025
Brand: Kennametal
SKU: NG3125LK KC5025
Price: 43.68 USD
Availability: InStock
Rating: 4.7 (47 reviews)

Brand: Kennametal

$43.68

★★★★⯨ 4.7 (47 reviews)

Grooving Insert: NG3125LK KC5025, Carbide – KC5025, TiAlN Finish, Left Hand, 3.180 mm Cutting Width, 3.81 mm Max Depth, Series Top Notch

500 in stock

Need bulk pricing? Chat on WhatsApp

🚚Free worldwide shipping on all orders
⏱️Delivery in 15–30 days · express (DHL/FedEx) on request
🛃Free customs clearance handling & correct HS/NCM documents
💬Customer service replies within 24 hours, 7 days a week
✅100% genuine OEM — certificates available on request
🔒Guaranteed safe & secure checkout · 30-day money-back guarantee
📷Need test samples or real photos of this exact item? Just ask our team.

We accept

Verified on global marketplaces

Ozon★4.91,679 reviews · 5,188 ordersVerified store ↗AliExpress★4.898.9% positive · 4-year storeVerified store ↗Amazon US★5.0Verified store ↗

Specifications
Brand	Kennametal
Part No. (MPN)	NG3125LK
Grade	KC5025
Type	Carbide Insert
Shape	Parallelogram 55°
Suitable Material	Titanium
Category	Insert

Kennametal KC5025 KC5025 – Grooving/Parting Carbide Insert

The Kennametal KC5025 grooving insert excels in general-purpose machining of titanium and non-ferrous workpieces, thanks to its TiAlN coating which provides excellent wear resistance and reduces the risk of built-up edge. With a parallelogram 55° shape and 3.180 mm cutting width, this left-hand insert is well-suited for a range of grooving and parting operations, allowing for precise control and stable cutting performance. Its 3.81 mm maximum depth capability makes it a versatile choice for various machining applications, from narrow grooves to deeper parting cuts.

Field reports & vendor notes: Kennametal Grooving Insert: NG3125L KC5025, Carbide KC5025, TiAlN Finish, Left Hand, 3.18 mm Cutting Width, 3.81 mm Max Depth, Series Top Notch KENGold™ PVD, multilayer coating for easy wear-detection A positive chipbreaker that delivers very low cutting forces for excellent chip control Precision-ground inserts for accurate indexing, resulting in reliability and repeatability

Key Specifications

Brand	Kennametal
Model	KC5025
Grade	KC5025
Coating	TiAlN
Insert Shape	Parallelogram 55°
Clearance Angle	7°
IC (Inscribed Circle)	5mm
Thickness	2.5mm
Workpiece Materials	Titanium, Non-ferrous
Application	General Purpose
Geometry	Positive
Quantity	1 PCS

Grade KC5025 Performance Profile

Operators running titanium, non-ferrous with the Kennametal KC5025 typically report stable wear progression rather than catastrophic edge loss. The tialn system is the reason: it slows abrasion at the rake face while keeping the substrate from softening at the cutting zone.

Features & Benefits

100% Genuine Kennametal – Original product with full quality guarantee, traceable batch.
Professional CNC Tooling – Compatible with major CNC machine brands (Mazak, DMG, Haas, Doosan).
Edge Stability – Substrate chemistry tuned to limit micro-chipping on titanium, non-ferrous interruptions.
Thermal Resistance – tialn layer holds hardness above typical cutting-zone temperatures.
Precision Ground – Tight dimensional tolerances for repeatable performance across batches.
Optimized Chip Breaker – Engineered chip geometry reduces re-cutting and machine downtime.

Recommended Applications

General Purpose of titanium, non-ferrous in production CNC lines
Suitable for both wet and dry machining conditions
CNC lathe and machining center compatible
Effective in interrupted and continuous cutting passes

Buying Considerations

Single-pack option — useful for prototype runs or qualification before bulk commitment. Entry-tier pricing makes this a low-risk option for trialing Kennametal tooling on a new material.

Tip: Match this insert to a holder whose seat matches the ISO designation. If you’re unsure, send us the holder model and we’ll confirm compatibility before shipping.

Weight	0.1 kg
Dimensions	15 × 18 × 4 cm
