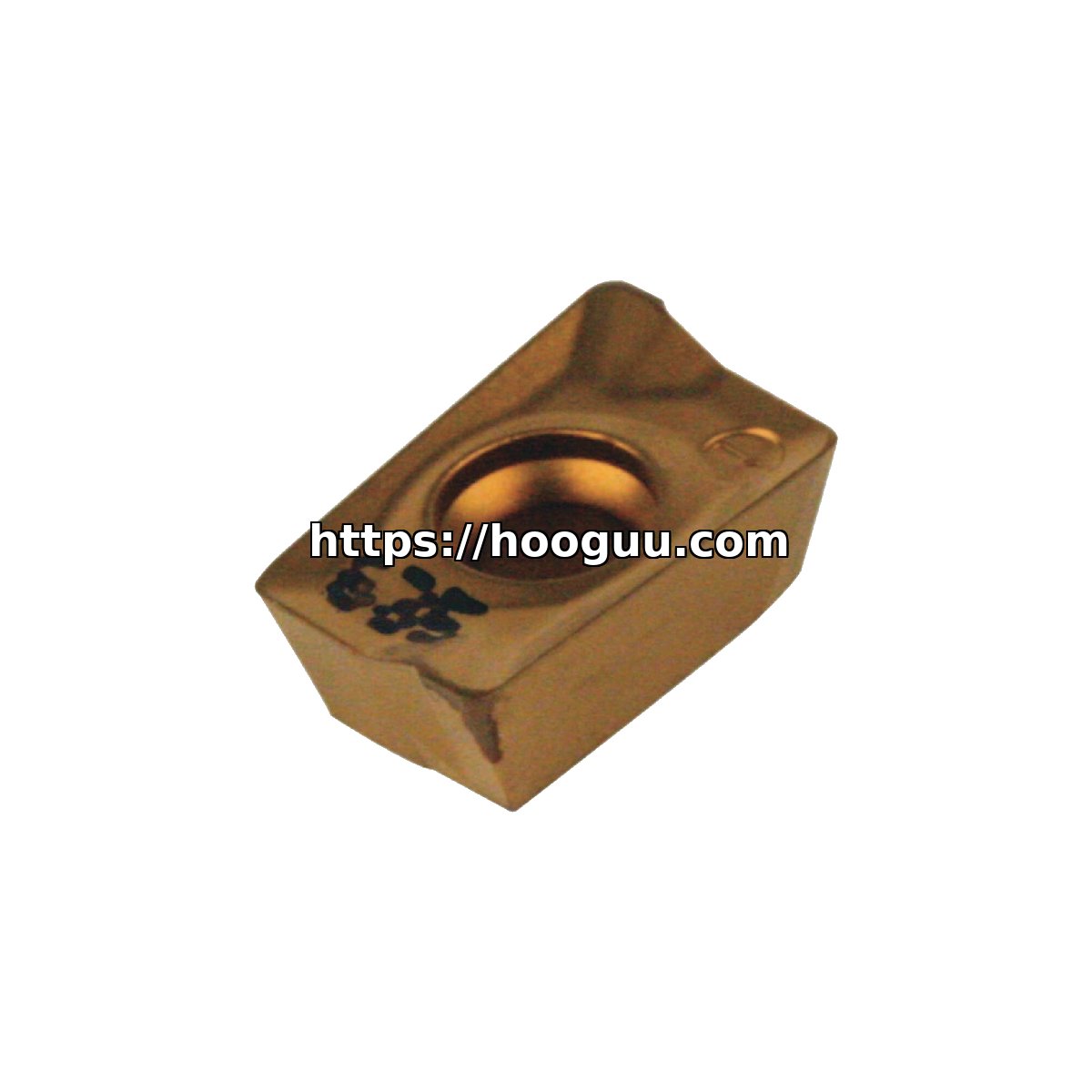

Original Korloy APMT160416PDSR-MM NC5330 Carbide Milling Insert – Parallelogram 85° | Steel, Cast Iron

Name: Original Korloy APMT160416PDSR-MM NC5330 Carbide Milling Insert - Parallelogram 85° | Steel, Cast Iron
Brand: Korloy
SKU: APMT160416PDSR-MM NC5330
Price: 29.45 USD
Availability: InStock
Rating: 5 (67 reviews)

Brand: Korloy

$29.45

★★★★★ 5 (67 reviews)

Buy original Korloy APMT160416PDSR-MM (APMT160416PDSR-MM NC5330) NC5330 Carbide Insert for steel, cast iron machining. TiAlN coating. From $29.45. Free shipp…

500 in stock

Need a different quantity, brand or specification?Send us the part number — typical reply time: a few hours.

WhatsApp Inquiry ✉ Email 📞 +1 743 279 9499

🔒Guaranteed Safe & Secure Checkout
🚚Free shipping on orders over $99
↩️30-day money-back guarantee

We accept

Korloy APMT160416PDSR-MM NC5330 – Milling Carbide Insert

Specifications:
Subcategory: Indexable Inserts & Blades
Leaf Category: Carbide Milling Inserts
Brand: KORLOY
Model #: 1-02-039413
Tool Material: Carbide
Unit of Measure: Each
Inventory Status: Order as needed
Catalog Page: 9923
Grade: NC5330
Chipbreaker 3875: MM
Coating: CVD
Insert Radius: 0.063″
Insert Shape & Angle: Parallelogram
Insert Size: 160416
Insert Style: APMT
Insert Thickness: 3/16″
Relief Angle: 11°
Insert Hand 7891: Right Hand
Insert #: APMT160416PDSR-MM
Weight: 0.017 lbs.
Designation: APMT160416PDSR-MM NC5330

What machinists are saying about APMT160416PDSR-MM: KORLOY 1-02-038376 – APMT160416PDSR-MM PC5300, Parallelogram, Indexable Carbide Milling Insert Item # 22-286-275 Write a review Ask a question Manufacturer Part Number 1-02-051254 ISO Part Number APMT160416PDSR-MM ANSI Part Number APMT160416PDSR-MM Primary Application Milling Country of Origin Korea Grade PC5400 Type Insert Chip Breaker MM PC5300 Universal grade for stainless,

Key Specifications

Brand	Korloy
Model	APMT160416PDSR-MM
Grade	NC5330
Coating	TiAlN
Insert Shape	Parallelogram 85°
Clearance Angle	11°
IC (Inscribed Circle)	16mm
Thickness	0.4mm
Nose Radius	1.6mm
Workpiece Materials	Steel, Cast Iron
Application	Finish Machining
Geometry	Chip breaker mm
Quantity	1 PCS

Grade NC5330 Performance Profile

Operators running steel, cast iron with the Korloy NC5330 typically report stable wear progression rather than catastrophic edge loss. The tialn system is the reason: it slows abrasion at the rake face while keeping the substrate from softening at the cutting zone.

Features & Benefits

100% Genuine Korloy – Original product with full quality guarantee, traceable batch.
Professional CNC Tooling – Compatible with major CNC machine brands (Mazak, DMG, Haas, Doosan).
Edge Stability – Substrate chemistry tuned to limit micro-chipping on steel, cast iron interruptions.
Thermal Resistance – tialn layer holds hardness above typical cutting-zone temperatures.
Precision Ground – Tight dimensional tolerances for repeatable performance across batches.
Optimized Chip Breaker – Engineered chip geometry reduces re-cutting and machine downtime.

Recommended Applications

Finish Machining of steel, cast iron in production CNC lines
Useful for batch production where tool-life predictability matters
Performs across a range of cutting speeds and feed rates
Effective in interrupted and continuous cutting passes

Buying Considerations

Single-pack option — useful for prototype runs or qualification before bulk commitment. Entry-tier pricing makes this a low-risk option for trialing Korloy tooling on a new material.

Tip: Match this insert to a holder whose seat matches the ISO designation. If you’re unsure, send us the holder model and we’ll confirm compatibility before shipping.

Weight	0.017 kg
Dimensions	15 × 18 × 4 cm

SKU: APMT160416PDSR-MM NC5330 Category: Insert Brand: Korloy
