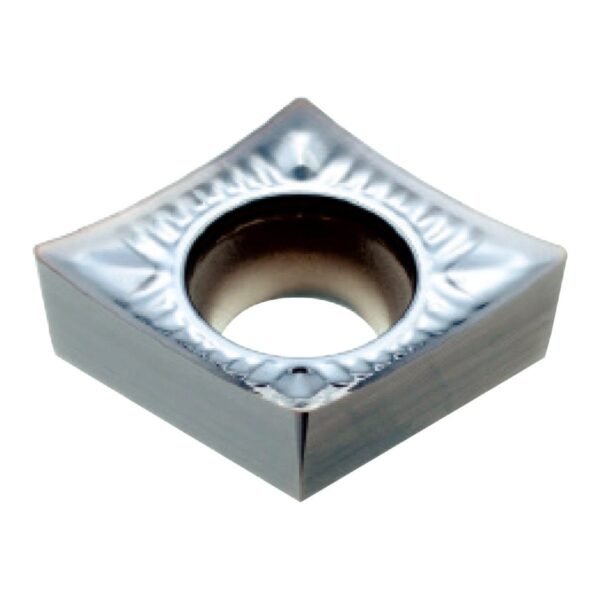

Original Korloy CCGT09T302-AK2 H01 Carbide Turning Insert – Diamond 80° | Aluminum, Non-Ferrous (10 PCS)

Name: Original Korloy CCGT09T302-AK2 H01 Carbide Turning Insert - Diamond 80° | Aluminum, Non-Ferrous (10 PCS)
Brand: Korloy
SKU: CCGT09T302-AK2 H01
Availability: InStock
Rating: 4.8 (27 reviews)

Brand: Korloy

$17.50

★★★★⯨ 4.8 (27 reviews)

CCGT style Carbide Turning Inserts
Positive Geometry
Ground AK chipbreaker with sharp cutting edge, ultra-high positive rake and buffed top face. Provides excellent chip control in small to large depths of cut whilst ensuring mirror finish results
Rhombic 80° Shape

Need a different quantity, brand or specification?Send us the part number — typical reply time: a few hours.

WhatsApp Inquiry ✉ Email 📞 +1 743 279 9499

🔒Guaranteed Safe & Secure Checkout
🚚Free shipping on orders over $99
↩️30-day money-back guarantee

We accept

Korloy CCGT09T302-AK2 H01 – Turning Carbide Insert

The Korloy CCGT09T302-AK2 H01 is a high-performance turning carbide insert designed for non-ferrous machining of aluminum, non-ferrous. Features advanced Uncoated Carbide coating technology for superior wear resistance and extended tool life. Diamond 80° insert geometry provides optimal performance.

Key Specifications

Brand	Korloy
Model	CCGT09T302-AK2
Grade	H01
Coating	Uncoated Carbide
Insert Shape	Diamond 80°
Clearance Angle	7°
Workpiece Materials	Aluminum, Non-Ferrous
Application	Non-Ferrous Machining
Quantity	10 PCS

Grade H01 Characteristics

Korloy H01 grade features Uncoated Carbide coating technology, specifically engineered for non-ferrous machining operations on aluminum, non-ferrous. This grade offers an excellent balance of wear resistance and toughness for reliable performance in demanding machining environments.

Features & Benefits

100% Genuine Korloy – Original product with full quality guarantee
Uncoated Carbide Coating – Superior wear resistance and extended tool life
Precision Ground – Tight dimensional tolerances for consistent performance
Optimized Chip Breaker – Efficient chip control reduces machine downtime
Professional CNC Tooling – Compatible with major CNC machine brands

Recommended Applications

Non-Ferrous Machining of aluminum, non-ferrous
CNC lathe and machining center compatible
Suitable for both wet and dry machining conditions

Note: Compatible tool holders sold separately. Please verify insert-holder compatibility before ordering.

Weight	0.1 kg
Dimensions	15 × 18 × 4 cm

SKU: CCGT09T302-AK2 H01 Category: Insert Tag: Korloy Brand: Korloy
