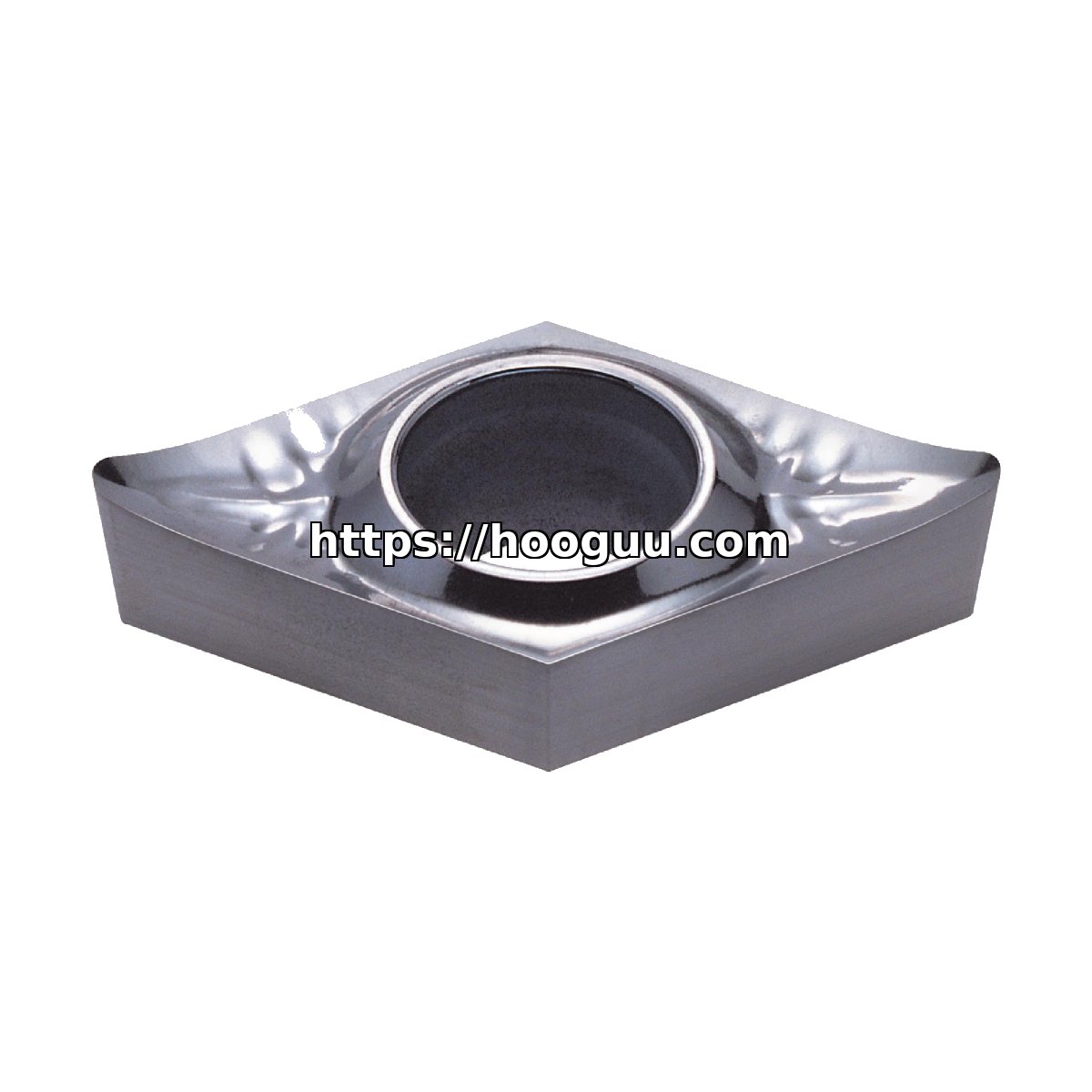

Original Korloy KORLOY NC9135 Carbide Turning Insert – Parallelogram 55° | Steel, Stainless Steel DCMT3(2.5)1-MP DCMT3(2.5)1-MP NC9135

Name: Original Korloy KORLOY NC9135 Carbide Turning Insert - Parallelogram 55° | Steel, Stainless Steel DCMT3(2.5)1-MP DCMT3(2.5)1-MP NC9135
Brand: Korloy
SKU: DCMT3(2.5)1-MP NC9135
Price: 18.79 USD
Availability: InStock
Rating: 4.6 (32 reviews)

Brand: Korloy

$18.79

★★★★⯨ 4.6 (32 reviews)

Buy original Korloy KORLOY (DCMT3(2.5)1-MP NC9135) NC9135 Carbide Insert for steel, stainless steel machining. Diamond coating. From $18.79. Free shipping. G…

500 in stock

Need bulk pricing? Chat on WhatsApp

🚚Free worldwide shipping on all orders
⏱️Delivery in 15–30 days · express (DHL/FedEx) on request
🛃Free customs clearance handling & correct HS/NCM documents
💬Customer service replies within 24 hours, 7 days a week
✅100% genuine OEM — certificates available on request
🔒Guaranteed safe & secure checkout · 30-day money-back guarantee
📷Need test samples or real photos of this exact item? Just ask our team.

We accept

Verified on global marketplaces

Ozon★4.91,679 reviews · 5,188 ordersVerified store ↗AliExpress★4.898.9% positive · 4-year storeVerified store ↗Amazon US★5.0Verified store ↗

Specifications
Brand	Korloy
Part No. (MPN)	DCMT3(2.5)1-MP
Grade	NC9135
Type	Carbide Insert
Shape	Parallelogram 55°
Suitable Material	Steel
Category	Insert

Korloy KORLOY NC9135 – Turning Carbide Insert

Specifications:
Subcategory: Indexable Inserts & Blades
Leaf Category: Turning & Boring Carbide Inserts
Brand: KORLOY
Model #: 1-02-061760
Tool Material: Carbide
Unit of Measure: Each
Inventory Status: Order as needed
Catalog Page: 9923
Grade: NC9135
Chipbreaker 3875: MP
Coating: CVD / TiCN+Al2O3+TiN
Insert IC: 3/8″
Insert Radius: 0.016″
Insert Shape & Angle: 55° Diamond
Insert Size: 3(2.5)1
Insert Style: DCMT
Insert Thickness: 5/32″
Relief Angle: 7°
Insert #: DCMT3(2.5)1-MP
Weight: 0.015 lbs.
Designation: DCMT3(2.5)1-MP NC9135

What machinists are saying about KORLOY: KORLOY 1-02-061760 – DCMT3 (2.5)1-MP NC9135, 55° Diamond, Indexable Carbide Turning / Boring Insert Item # 22-290-587 Write a review Ask a question LP / MP Chip breakers have two step dots at the corner and bring measurable increase in productivity when machining forged steel at high speed (max. 350m/min) and high feed (max. .35mm/rev). NC3215 / NC3225 in combination with LP /

Key Specifications

Brand	Korloy
Model	KORLOY
Grade	NC9135
Coating	Diamond
Insert Shape	Parallelogram 55°
Clearance Angle	Other
Workpiece Materials	Steel, Stainless Steel
Application	High-Speed Machining
Geometry	Positive
Quantity	1 PCS

Grade NC9135 Performance Profile

Operators running steel, stainless steel with the Korloy NC9135 typically report stable wear progression rather than catastrophic edge loss. The diamond system is the reason: it slows abrasion at the rake face while keeping the substrate from softening at the cutting zone.

Features & Benefits

100% Genuine Korloy – Original product with full quality guarantee, traceable batch.
Ready Stock – In-stock for same-day dispatch from our CNC tooling warehouse.
Precision Ground – Tight dimensional tolerances for repeatable performance across batches.
Thermal Resistance – diamond layer holds hardness above typical cutting-zone temperatures.
Edge Stability – Substrate chemistry tuned to limit micro-chipping on steel, stainless steel interruptions.
Optimized Chip Breaker – Engineered chip geometry reduces re-cutting and machine downtime.

Recommended Applications

High-Speed Machining of steel, stainless steel in production CNC lines
Performs across a range of cutting speeds and feed rates
Effective in interrupted and continuous cutting passes
CNC lathe and machining center compatible

Buying Considerations

Single-pack option — useful for prototype runs or qualification before bulk commitment. Entry-tier pricing makes this a low-risk option for trialing Korloy tooling on a new material.

Tip: Match this insert to a holder whose seat matches the ISO designation. If you’re unsure, send us the holder model and we’ll confirm compatibility before shipping.

Weight	0.015 kg
Dimensions	15 × 18 × 4 cm
