Original Korloy SPMR322-M NC3030 Carbide Turning Insert – Square | Steel & More

Name: Original Korloy SPMR322-M NC3030 Carbide Turning Insert - Square | Steel &amp; More
Brand: Korloy
SKU: SPMR322-M NC3030
Price: 13.08 USD
Availability: InStock
Rating: 4.8 (17 reviews)

Brand: Korloy

$13.08

★★★★⯨ 4.8 (17 reviews)

Buy original Korloy SPMR322-M (SPMR322-M NC3030) NC3030 Carbide Insert for steel, stainless steel, cast iron machining. tin coating. From $13.08. Free shippi…

500 in stock

Need a different quantity, brand or specification?Send us the part number — typical reply time: a few hours.

WhatsApp Inquiry ✉ Email 📞 +1 743 279 9499

Need bulk pricing? Chat on WhatsApp

🔒Guaranteed Safe & Secure Checkout
🚚Free shipping on orders over $99
↩️30-day money-back guarantee

We accept

Korloy SPMR322-M NC3030 – Turning Carbide Insert

Specifications:
Subcategory: Indexable Inserts & Blades
Leaf Category: Turning & Boring Carbide Inserts
Brand: KORLOY
Model #: 1-02-024425
Tool Material: Carbide
Unit of Measure: Each
Inventory Status: Order as needed
Catalog Page: 9923
Grade: NC3030
Chipbreaker 3875: M
Coating: CVD / TiCN+Al2O3+TiN

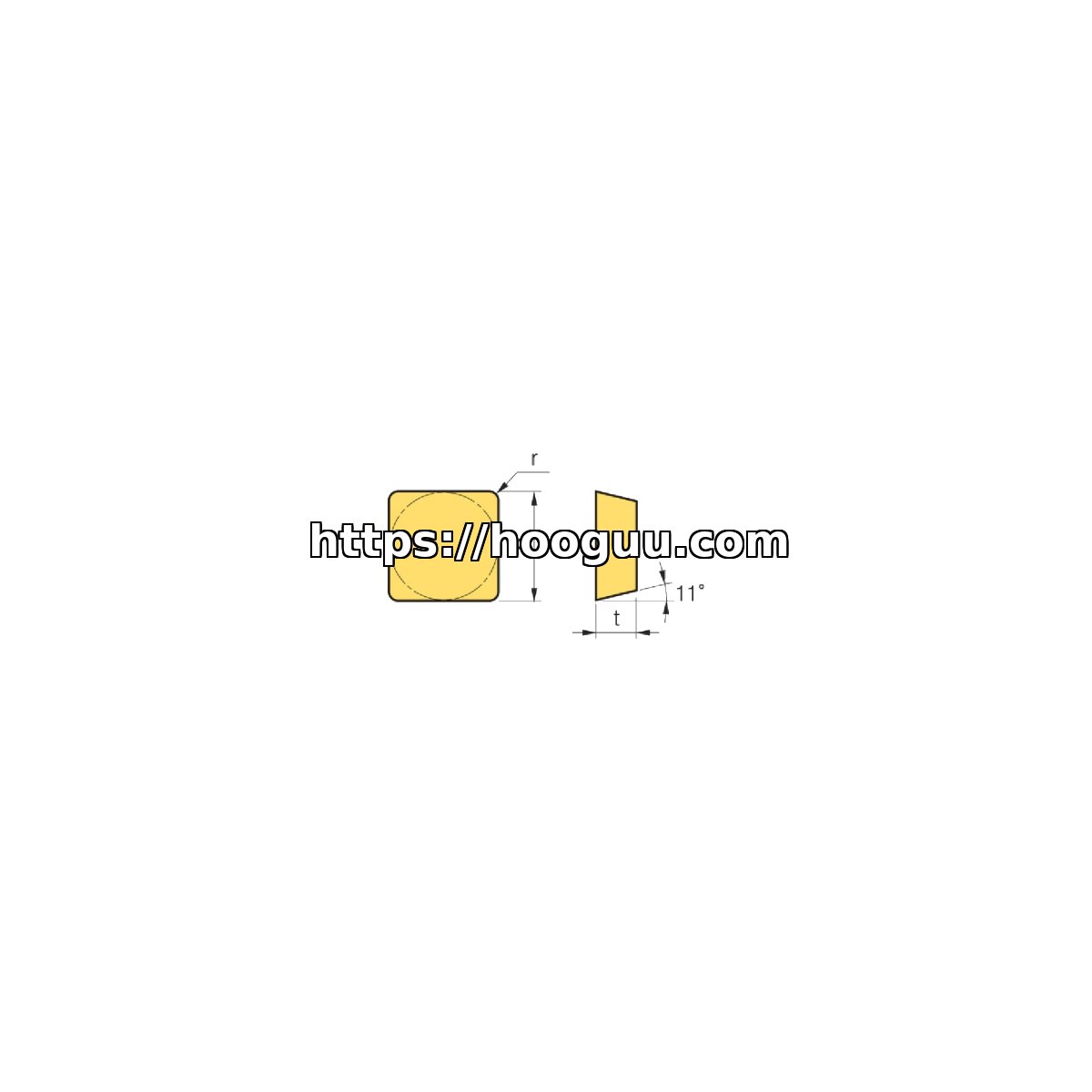

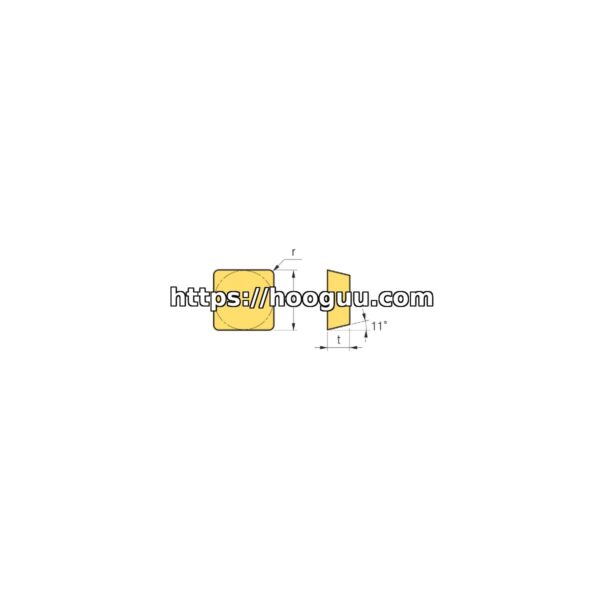

Insert IC: 3/8″
Insert Radius: 0.031″
Insert Shape & Angle: 90° Square
Insert Size: 322
Insert Style: SPMR
Insert Thickness: 1/8″
Relief Angle: 11°
Insert #: SPMR322-M
Weight: 0.015 lbs.
Designation: SPMR322-M NC3030

Industry references for Korloy SPMR322-M: Features90° Square Shaped Indexable Inserts."S" shaped inserts provide a strong insert shape, great for medium to roughing applications.Negative inserts can provide up to 8 cutting edges.Available in multiple chipbreakers & grades. Discover KORLOY's NC3030 product range, offering high-quality cutting tools for various industries. Manufacturer Part Number 1-02

Key Specifications

Brand	Korloy
Model	SPMR322-M
Grade	NC3030
Coating	tin
Insert Shape	Square
Clearance Angle	11°
Workpiece Materials	Steel, Stainless Steel, Cast Iron
Application	Finish Machining
Geometry	Negative
Quantity	1 PCS

Grade NC3030 Characteristics

Korloy NC3030 uses tin coating tuned for finish machining on steel, stainless steel, cast iron. The chemistry favors edge stability under interrupted cutting and resists thermal cracking on longer passes.

Features & Benefits

100% Genuine Korloy – Original product with full quality guarantee, traceable batch.
QC Inspected – Each batch sampled for edge profile, dimensional accuracy, and coating adhesion.
Bulk Pricing Available – Discount tiers for production-volume orders; contact sales.
tin Coating – Superior wear resistance and extended tool life under continuous load.
Predictable Wear – Even flank wear pattern simplifies tool-life prediction and scheduling.
Optimized Chip Breaker – Engineered chip geometry reduces re-cutting and machine downtime.

Recommended Applications

Finish Machining of steel, stainless steel, cast iron in production CNC lines
Holds dimensional tolerance over multiple indexings (insert)
Designed for shop conditions typical of Korloy tooling users worldwide
Pairs well with through-coolant setups for chip evacuation

Buying Considerations

Single-pack option — useful for prototype runs or qualification before bulk commitment. Entry-tier pricing makes this a low-risk option for trialing Korloy tooling on a new material.

Tip: Match this insert to a holder whose seat matches the ISO designation. If you’re unsure, send us the holder model and we’ll confirm compatibility before shipping.

Weight	0.015 kg
Dimensions	15 × 18 × 4 cm

SKU: SPMR322-M NC3030 Category: Insert Brand: Korloy
