Sale!

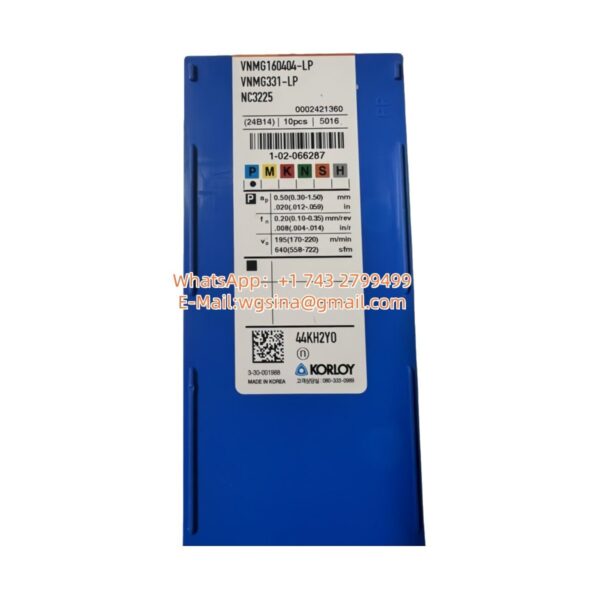

Original Korloy VNMG160404-LP NC3225 Carbide Insert – Diamond 35° | Steel, Stainless Steel

Name: Original Korloy VNMG160404-LP NC3225 Carbide Insert - Diamond 35° | Steel, Stainless Steel
Brand: Korloy
SKU: VNMG160404-LP NC3225
Rating: 4.7 (43 reviews)

Brand: Korloy

Original price was: $100.00.Current price is: $80.00.

★★★★⯨ 4.7 (43 reviews)

Short desc

50 in stock

Need a different quantity, brand or specification?Send us the part number — typical reply time: a few hours.

WhatsApp Inquiry ✉ Email 📞 +1 743 279 9499

🔒Guaranteed Safe & Secure Checkout
🚚Free shipping on orders over $99
↩️30-day money-back guarantee

We accept

Korloy VNMG160404-LP NC3225 – Carbide Insert

The Korloy VNMG160404-LP NC3225 is a high-performance carbide insert designed for finish machining of steel, stainless steel. Features advanced tin coating technology for superior wear resistance and extended tool life. Diamond 35° insert geometry provides optimal performance.

LP / MP Chip breakers have two step dots at the corner and bring measurable increase in productivity when machining forged steel at high speed (max. 350m/min) and high feed (max. .35mm/rev). NC3215 / NC3225 in combination with LP / MP ensures a precise cutting action as well as maximum cutting effic

Key Specifications

Brand	Korloy
Model	VNMG160404-LP
Grade	NC3225
Coating	tin
Insert Shape	Diamond 35°
Clearance Angle	0°
IC (Inscribed Circle)	16mm
Thickness	0.4mm
Nose Radius	0.4mm
Workpiece Materials	Steel, Stainless Steel
Application	Finish Machining
Geometry	Negative
Quantity	1 PCS

Grade NC3225 Characteristics

Korloy NC3225 grade features tin coating technology, specifically engineered for finish machining operations on steel, stainless steel. This grade offers an excellent balance of wear resistance and toughness for reliable performance in demanding machining environments.

Features & Benefits

100% Genuine Korloy – Original product with full quality guarantee
tin Coating – Superior wear resistance and extended tool life
Precision Ground – Tight dimensional tolerances for consistent performance
Optimized Chip Breaker – Efficient chip control reduces machine downtime
Professional CNC Tooling – Compatible with major CNC machine brands

Recommended Applications

Finish Machining of steel, stainless steel
CNC lathe and machining center compatible
Suitable for both wet and dry machining conditions

Note: Compatible tool holders sold separately. Please verify insert-holder compatibility before ordering.

Weight	0.5 kg
Dimensions	10 × 5 × 3 cm

SKU: VNMG160404-LP NC3225 Category: Insert Brand: Korloy
