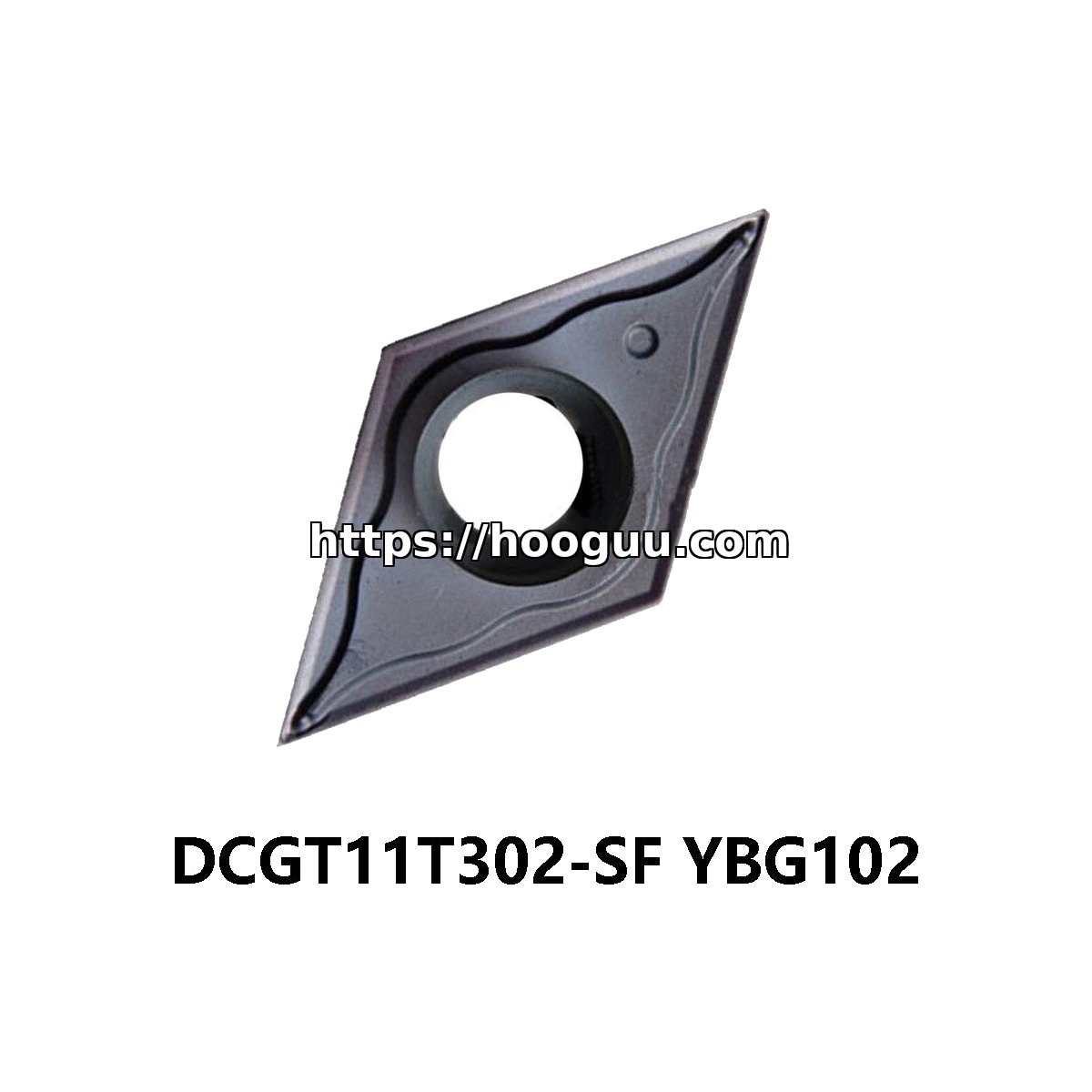

ZCC-CT DCGT11T302-SF YBG102 Diamond 55° Steel DCGT420

Name: ZCC-CT DCGT11T302-SF YBG102 Diamond 55° Steel DCGT420
Brand: ZCC-CT
SKU: DCGT11T302-SF YBG102
Price: 91.98 USD
Availability: PreOrder

Brand: ZCC-CT

$91.98

The ZCC-CT YBG102 is a professional-grade carbide insert designed for carbon and alloy steel turning. Suitable for CNC lathes with appropriate tool holders. Recommended Vc 200-350 m/min roughing, 300-450 m/min finishing. Use through-coolant or high-pressure coolant for optimal results. Available from Hooguu.com with worldwide shipping and competitive pricing. SKU: DCGT11T302-SF YBG102.

500 in stock

ⓘ Prices move with raw-material (tungsten / steel) market rates. Please confirm the current price with us before placing your order — thank you.

Confirm price / bulk pricing on WhatsApp

🚚Free worldwide shipping on all orders
⏱️Delivery in 15–30 days · express (DHL/FedEx) on request
🛃Free customs clearance handling & correct HS/NCM documents
💬Customer service replies within 24 hours, 7 days a week
✅100% genuine OEM — certificates available on request
🔒Guaranteed safe & secure checkout · 30-day money-back guarantee
📷Need test samples or real photos of this exact item? Just ask our team.

We accept

Verified on global marketplaces

Ozon★4.91,679 reviews · 5,188 ordersVerified store ↗AliExpress★4.898.9% positive · 4-year storeVerified store ↗Amazon US★5.0Verified store ↗

Specifications
Brand	ZCC-CT
Part No. (MPN)	DCGT11T302-SF
Grade	YBG102
Shape	Diamond 55°
Suitable Material	Steel
Category	Diamond 55° (DNMG)

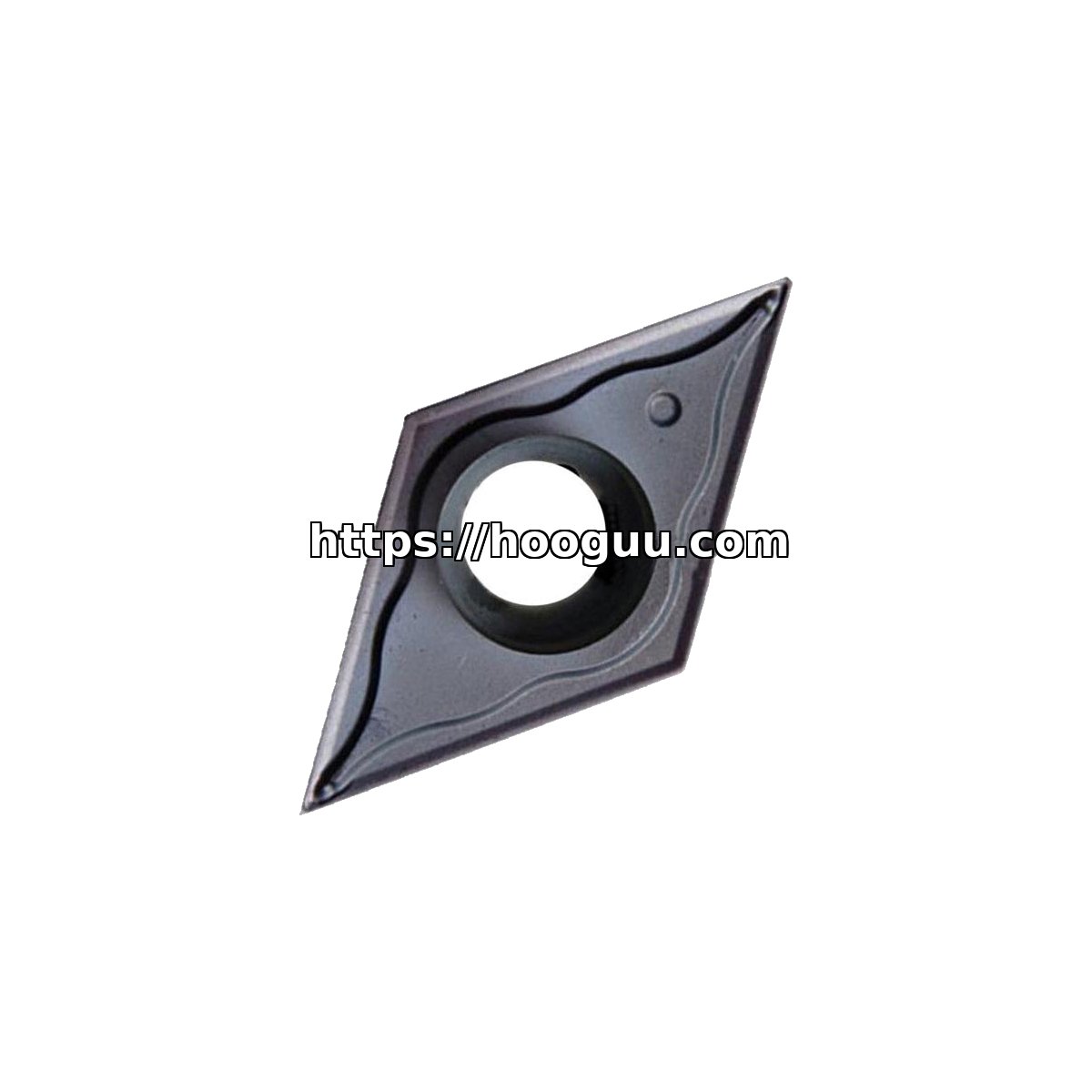

ZCC-CT DCGT11T302-SF YBG102 – Turning Carbide Insert

DCGT11T302-SF YBG102 Turning Inserts Product Overview “Which insert provides the highest precision and tool life for finishing Heat Resistant Super Alloys (HRSA) and Stainless Steel?” The DCGT11T302-SF YBG102 is a high-precision 55° rhombic positive insert designed for elite finishing. Combining the -SF (Super Finishing) chipbreaker with the YBG102 PVD nano-TiAlN coating, this tool is the ultimate solution for small-depth-of-cut operations in Titanium, Nickel-based alloys, and Stainless Steel. The sharp cutting edge and high-accuracy “G” tolerance class ensure ultra-stable dimensional control and mirror-like surface finishes. Key Advantages ✔ YBG102 Nano-Coating: Ultra-fine TiAlN PVD coating provides exceptional hardness and heat resistance (S05–S15 / M05–M15 range). ✔ -SF Chipbreaker Geometry: Designed for low feed rates and shallow cuts, effectively preventing chip wrapping on small parts. ✔ Sharp Peripheral Grinding: Reduces cutting resistance and prevents workpiece deflection in thin-walled components. ✔ Class G Precision: Offers the highest mounting repeatability for automated CNC production. ISO Nomenclature Breakdown D55° Rhombic C7° Relief GPrecision G TWith Hole 1111.6mm Edge T33.97mm Thick 020.2mm Radius Technical Specifications Attribute Metric (ISO) Inch (ANSI) Model ID DCGT11T302-SF DCGT 32.50.5-SF Inscribed Circle 9.525 mm 3/8″ Thickness 3.97 mm 5/32″ Nose Radius 0.2 mm 0.008″ Recommended Cutting Parameters Cutting Speed (Vc) 40 – 150 m/min (Superalloys) Feed Rate (f) 0.03 – 0.12 mm/rev Depth of Cut (ap) 0.05 – 1.0 mm Compatible Tool Holders Standard SDJCR/L or SDUCR/L Holders: SDJCR1212H11 | S16Q-SDUCR11 | S20R-SDUCR11 Shop Matching Holders → Target Materials Titanium Alloys (Ti-6Al-4V) Inconel 718 / Monel Austenitic Stainless Steel (304/316) Aerospace Grade Superalloys Grade Performance Comparison YBG102: Premium High-Temp Resistance (S05-S15). YBG202: General Purpose Toughness (M10-M25). YBS103: Optimized for Heavy S-Class Turning. Why Choose ZCC.CT Tools? As the flagship brand of the world’s leading cemented carbide group, ZCC.CT integrates the entire supply chain from mineral extraction to precision coating. The YBG series represents the pinnacle of PVD technology, offering aerospace-grade reliability and extreme precision for high-value manufacturing at a significant cost advantage. Verified Global User Reviews ⭐⭐⭐⭐⭐ “Flawless Surface Finish” Used on Titanium Ti-6Al-4V for medical implants. The 0.2 radius and -SF breaker are perfect for high-tolerance finishing. — John D., USA (Aerospace Engineer) ⭐⭐⭐⭐⭐ “Top Qualität in Edelstahl” Excellent performance in 316L stainless. Wear is very predictable, allowing for long unattended CNC runs. — Markus S., Germany ⭐⭐⭐⭐ “Affidabile e Preciso” The Class G tolerance really makes a difference when swapping inserts in our production line. — Luca B., Italy ⭐⭐⭐⭐⭐ “抜群のチップブレーカー” -SF breaker solves our chip wrapping issues in small-diameter boring operations. — Kenji T., Japan Frequently Asked Questions Q: Can YBG102 be used with coolant?A: Yes, high-pressure coolant is highly recommended for finishing Superalloys to enhance tool life and chip evacuation. Q: What makes Class G precision different?A: Class G inserts are peripherally ground, offering tolerances as tight as ±0.025mm, ensuring the center height and tip position stay identical between insert changes. Q: Is this insert suitable for dry machining?A: For stainless steel, yes; however, for Titanium and Inconel, heat management is critical, so coolant is preferred. Material Comparison Tip: When machining Nickel-based Alloys, the YBG102 grade is superior due to its high-temperature stability. If you encounter significant mechanical vibration, consider the YBG202 for its increased substrate toughness.

Key Specifications

Brand	ZCC-CT
Model	DCGT11T302-SF
Grade	YBG102
Coating	PVD
Insert Shape	Diamond 55°
Clearance Angle	7°
Workpiece Materials	Steel, Stainless Steel, Cast Iron, Aluminum
Application	Finish Machining
Geometry	Positive
Quantity	1 PCS

Features & Benefits

100% Genuine ZCC-CT – Original product with full quality guarantee, traceable batch.
Precision Ground – Tight dimensional tolerances for repeatable performance across batches.
Ready Stock – In-stock for same-day dispatch from our CNC tooling warehouse.
Professional CNC Tooling – Compatible with major CNC machine brands (Mazak, DMG, Haas, Doosan).
Edge Stability – Substrate chemistry tuned to limit micro-chipping on steel, stainless steel, cast iron, aluminum interruptions.
Optimized Chip Breaker – Engineered chip geometry reduces re-cutting and machine downtime.

Recommended Applications

Finish Machining of steel, stainless steel, cast iron, aluminum in production CNC lines
Designed for shop conditions typical of ZCC-CT tooling users worldwide
Holds dimensional tolerance over multiple indexings (insert)
Pairs well with through-coolant setups for chip evacuation

Buying Considerations

Single-pack option — useful for prototype runs or qualification before bulk commitment. Mid-tier pricing reflects ZCC-CT’s production-grade tolerances rather than economy substrate.

Note: Compatible tool holders sold separately. Please confirm insert-holder seat compatibility (e.g. ISO seat designation) before ordering.

Weight	0.2 kg
Dimensions	15 × 18 × 4 cm

What Buyers Say

★★★★★

100% recomendados los insertos, y el paquete está llegando muy rapido

Lizeth Villasana Rosales, Mexico via aliexpress

★★★★★

Товар доставлен, оригинальный, упаковка отличная! Всё полностью соответствует описанию.

YUrij S., Russia via Ozon

★★★★★

По сырой стали пойдёт. Большой радиус при вершине, больше нагрузка.

Vladimir G., Russia via Ozon

★★★★★

A good product and the seller offered a nice discount

Michael, American via Amazon

★★★★★

the product is like show in the picture

Jose, American via Amazon

★★★★★

дошло быстрее чем заявлено. все супер

Mariya R., Russia via Ozon

SKU: DCGT11T302-SF YBG102 Categories: Insert, Turning Inserts, Diamond 55° (DNMG) Tag: ZCC.CT Brand: ZCC-CT
