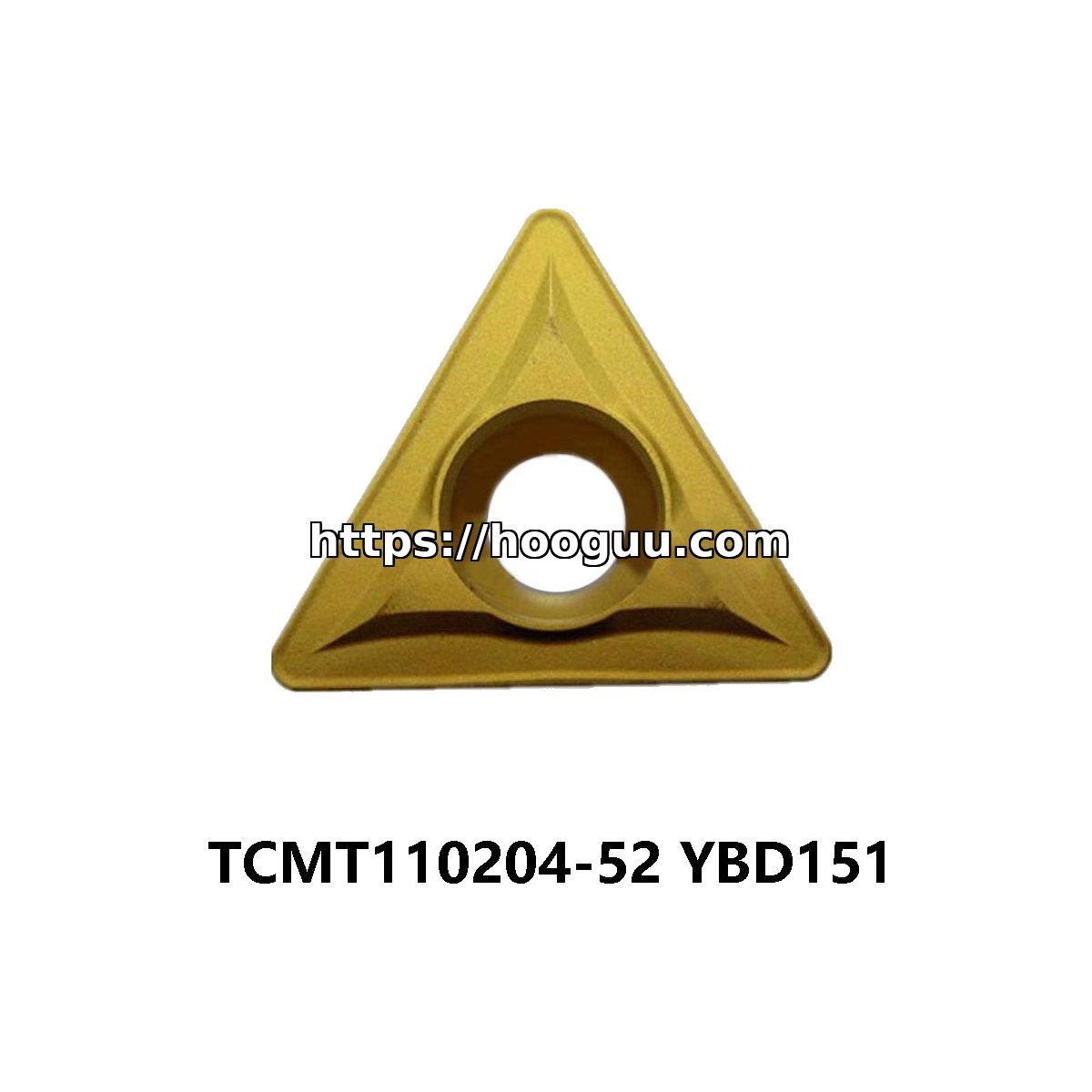

ZCC-CT TCMT110204-52 YBD151 Triangle Steel TCMT211

Name: ZCC-CT TCMT110204-52 YBD151 Triangle Steel TCMT211
Brand: ZCC-CT
SKU: TCMT110204-52 YBD151
Price: 60.30 USD
Availability: PreOrder

Brand: ZCC-CT

$60.30

The ZCC-CT TCMT110204 is a professional-grade carbide insert designed for carbon and alloy steel turning. Suitable for CNC lathes with appropriate tool holders. Recommended Vc 200-350 m/min roughing, 300-450 m/min finishing. Use through-coolant or high-pressure coolant for optimal results. Available from Hooguu.com with worldwide shipping and competitive pricing. SKU: TCMT110204-52 YBD151.

500 in stock

ⓘ Prices move with raw-material (tungsten / steel) market rates. Please confirm the current price with us before placing your order — thank you.

Confirm price / bulk pricing on WhatsApp

🚚Free worldwide shipping on all orders
⏱️Delivery in 15–30 days · express (DHL/FedEx) on request
🛃Free customs clearance handling & correct HS/NCM documents
💬Customer service replies within 24 hours, 7 days a week
✅100% genuine OEM — certificates available on request
🔒Guaranteed safe & secure checkout · 30-day money-back guarantee
📷Need test samples or real photos of this exact item? Just ask our team.

We accept

Verified on global marketplaces

Ozon★4.91,679 reviews · 5,188 ordersVerified store ↗AliExpress★4.898.9% positive · 4-year storeVerified store ↗Amazon US★5.0Verified store ↗

Specifications
Brand	ZCC-CT
Part No. (MPN)	TCMT110204-52
Grade	YBD151
Shape	Triangle
Suitable Material	Steel
Category	Triangle (TNMG)

ZCC-CT TCMT110204-52 YBD151 – Turning Carbide Insert

ZCC.CT TCMT110204-52 YBD151 Precision Turning Insert High-Speed Machining Excellence for Cast Iron (ISO K) Product Overview “Which carbide insert grade offers the best tool life and surface finish for high-speed turning of Grey Cast Iron and Nodular Cast Iron?” The ZCC.CT TCMT110204-52 YBD151 is a high-performance triangular turning insert engineered specifically for ISO K (Cast Iron) materials. Utilizing the YBD151 grade—a specialized medium-fine grain substrate with a thick Al2O3 CVD coating—this insert provides extreme hardness and thermal stability. The -52 chipbreaker geometry is precision-ground for finishing operations, ensuring optimal chip evacuation even at high cutting velocities. Key Industrial Features Extreme Wear Resistance: Thick CVD Al2O3 coating designed to resist the abrasive nature of cast iron. -52 Finishing Geometry: A sharp, positive rake angle that reduces cutting pressure and prevents workpiece chipping. High Thermal Stability: The YBD151 grade thrives in dry machining conditions common in cast iron processing. Technical Specifications TTriangle C7° Relief MTolerance THole/Slot 1111mm Edge 022.38mm Thk 040.4mm Rad Measurement System Model Designation ISO (Metric) TCMT 11 02 04 ANSI (Imperial) TCMT 2 1.5 1 Recommended Cutting Parameters Workpiece Material Speed (Vc m/min) Feed (f mm/rev) Grey Cast Iron (HT) 250 – 450 0.05 – 0.20 Nodular Cast Iron (QT) 180 – 320 0.08 – 0.25 Required Tooling Connection: Shop STGCR/L Boring Bars for TCMT 11 > Common Applications Automotive: Brake drums, engine blocks, and flywheels. Machinery: Machine tool beds and heavy-duty gear housings. Process: Ideal for high-speed continuous turning where surface finish is critical. System Compatibility This insert fits all standard ISO-compliant boring bars and external tool holders designed for TCMT 1102 (TCMT 21.5) sizing. Optimized for rigid CNC lathe environments. ZCC.CT Cast Iron Grade Matrix Grade Cutting Condition Main Benefit YBD151 (Current) High Speed / Finishing Max Wear Resistance YBD102 Stable / Dry Cut Superior Thermal Resistance YBD252 Interrupted / Roughing High Impact Toughness Verified Performance Reviews ★★★★★”Incredible on HT250″ Running these on Grey Iron brake components at high speeds. Wear is very predictable. Best value grade I’ve found. — Thomas M., Germany 🇩🇪 ★★★★★”Surface Finish 10/10″ The -52 chipbreaker leaves a mirror finish on nodular iron. No more edge buildup. — Kenji S., Japan 🇯🇵 ★★★★☆”Excellent for Production” Consistent results over 500 parts. Fast shipping from this vendor too. — Paolo B., Italy 🇮🇹 Expert AI Assistance (FAQ) Q: Can I use YBD151 on Steel or Stainless? A: We do not recommend it. YBD151 is a dedicated Cast Iron grade. For Steel, use YBC grades; for Stainless, use YBM grades. Q: Is dry cutting preferred for this insert? A: Yes. Cast iron is often machined dry to prevent thermal cracking of the coating, and YBD151 is optimized for this. Grade Tip: YBD151 vs YBD252 Choose YBD151 for high-speed finishing and continuous cuts. If your part has heavy interruptions or bolt holes, switch to YBD252 for increased toughness. Equivalent Models Sandvik: TCMT 11 02 04-KF (GC3210)Kennametal: TCMT 11 02 04 (KCK20)Mitsubishi: TCMT 11 02 04-MK (MC5015) Troubleshooting: If you experience excessive flank wear, decrease cutting speed (Vc). If the edge chips, increase the nose radius or switch to a tougher grade.

Key Specifications

Brand	ZCC-CT
Model	TCMT110204-52
Grade	YBD151
Coating	Al2O3
Insert Shape	Triangle
Clearance Angle	7°
IC (Inscribed Circle)	11mm
Thickness	0.2mm
Nose Radius	0.4mm
Workpiece Materials	Steel
Application	Finish Machining
Geometry	Chipbreaker is
Quantity	1 PCS

Features & Benefits

100% Genuine ZCC-CT – Original product with full quality guarantee, traceable batch.
Predictable Wear – Even flank wear pattern simplifies tool-life prediction and scheduling.
QC Inspected – Each batch sampled for edge profile, dimensional accuracy, and coating adhesion.
Bulk Pricing Available – Discount tiers for production-volume orders; contact sales.
Thermal Resistance – al2o3 layer holds hardness above typical cutting-zone temperatures.
Optimized Chip Breaker – Engineered chip geometry reduces re-cutting and machine downtime.

Recommended Applications

Finish Machining of steel in production CNC lines
Performs across a range of cutting speeds and feed rates
Effective in interrupted and continuous cutting passes
CNC lathe and machining center compatible

Buying Considerations

Single-pack option — useful for prototype runs or qualification before bulk commitment. Mid-tier pricing reflects ZCC-CT’s production-grade tolerances rather than economy substrate.

Tip: Match this insert to a holder whose seat matches the ISO designation. If you’re unsure, send us the holder model and we’ll confirm compatibility before shipping.

Weight	0.2 kg
Dimensions	15 × 18 × 4 cm
