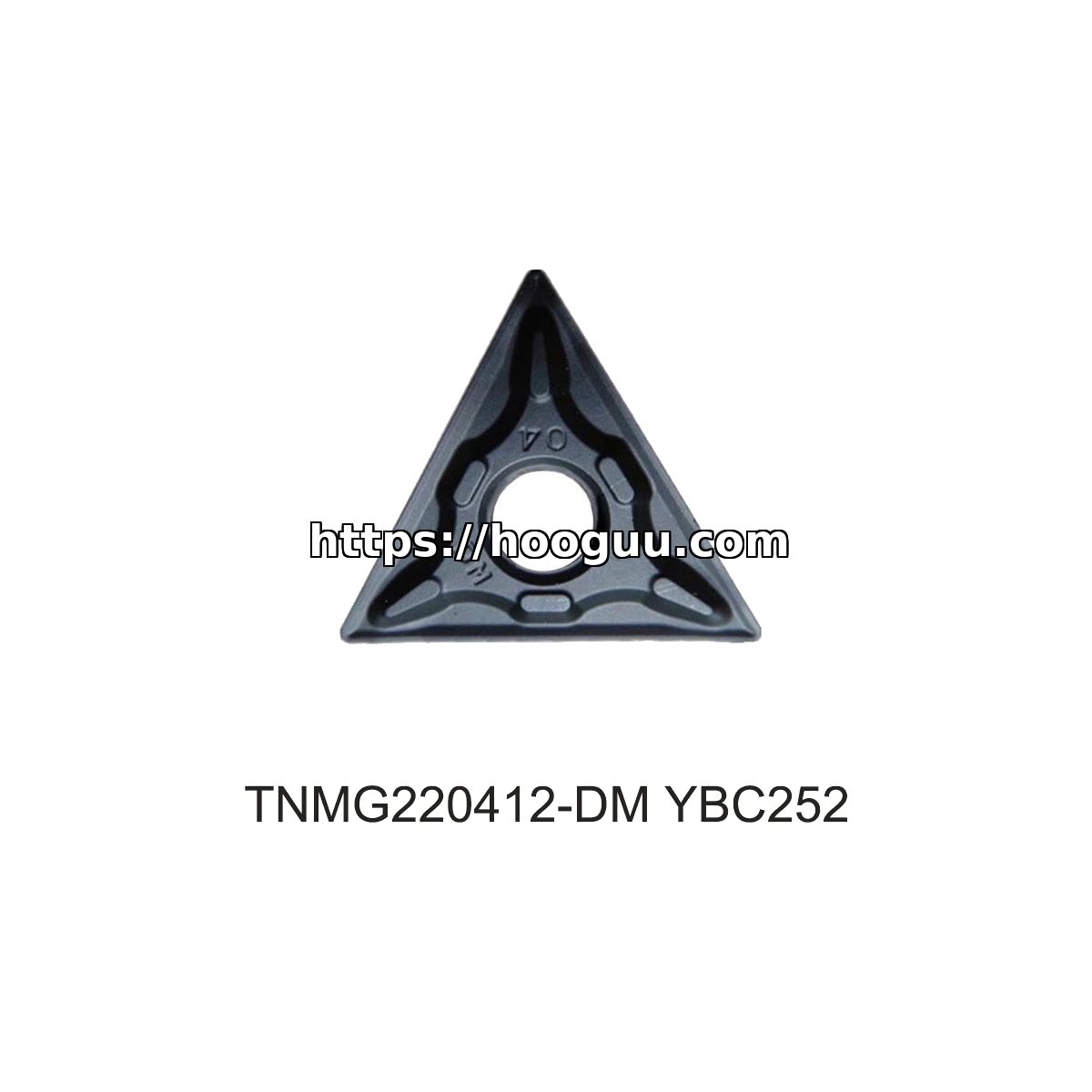

ZCC-CT TNMG220412-DM YBC252 Triangle Steel TNMG433

Name: ZCC-CT TNMG220412-DM YBC252 Triangle Steel TNMG433
Brand: ZCC-CT
SKU: TNMG220412-DM YBC252
Price: 84.22 USD
Availability: PreOrder

Brand: ZCC-CT

$84.22

The ZCC-CT TNMG220412 is a professional-grade carbide insert designed for carbon and alloy steel turning. Suitable for CNC lathes with appropriate tool holders. Recommended Vc 200-350 m/min roughing, 300-450 m/min finishing. Use through-coolant or high-pressure coolant for optimal results. Available from Hooguu.com with worldwide shipping and competitive pricing. SKU: TNMG220412-DM YBC252.

Machining Application YBC252

P Steel

ZCC.CT grade — recommended for steel (P).

Recommended cutting data

Group P — Carbon & alloy steels

Low-carbon / structural steel (HB ≤ 200)
Vc: 180–320 m/min; f: 0.10–0.40 mm/rev; ap ≤ 4.0 mm
Alloy / quenched-and-tempered steel (HB 200–330)
Vc: 120–240 m/min; f: 0.10–0.35 mm/rev; ap ≤ 3.0 mm

Raise Vc for continuous cuts; lower it and pick a tougher chipbreaker for interrupted cuts.

Figures are general reference ranges by ISO material group — adjust for tool geometry, machine rigidity and cooling. For exact recommendations refer to the manufacturer's data or contact us for a quote.

500 in stock

ⓘ Prices move with raw-material (tungsten / steel) market rates. Please confirm the current price with us before placing your order — thank you.

Confirm price / bulk pricing on WhatsApp

🚚Free worldwide shipping on all orders
⏱️Delivery in 15–30 days · express (DHL/FedEx) on request
🛃Free customs clearance handling & correct HS/NCM documents
💬Customer service replies within 24 hours, 7 days a week
✅100% genuine OEM — certificates available on request
🔒Guaranteed safe & secure checkout · 30-day money-back guarantee
📷Need test samples or real photos of this exact item? Just ask our team.

We accept

Verified on global marketplaces

Ozon★4.91,679 reviews · 5,188 ordersVerified store ↗AliExpress★4.898.9% positive · 4-year storeVerified store ↗Amazon US★5.0Verified store ↗

Specifications
Brand	ZCC-CT
Part No. (MPN)	TNMG220412-DM
Grade	YBC252
Shape	Triangle
Suitable Material	Steel
Category	Triangle (TNMG)

ZCC-CT TNMG220412-DM YBC252 – Turning Carbide Insert

/* 全局样式与可读性优化 */ .zcc-wrap { font-family: ‘Segoe UI’, Roboto, Helvetica, Arial, sans-serif; color: #1a1a2e; line-height: 1.8; max-width: 100%; font-size: 16px; -webkit-user-select: text; user-select: text; } /* Hero 头部：大字号，突出型号与级别 */ .zcc-hero { background: #47479F; color: #fff; padding: 40px 24px; border-radius: 12px; margin-bottom: 30px; } .zcc-hero h1 { font-size: clamp(1.6rem, 5vw, 2.4rem); font-weight: 800; margin: 0 0 15px; line-height: 1.2; } .zcc-hero p { font-size: 1.15rem; margin: 0; opacity: 0.95; } .zcc-badge { display: inline-block; background: #fff; color: #47479F; font-weight: 700; font-size: 0.85rem; padding: 6px 14px; border-radius: 25px; margin: 0 8px 8px 0; } .zcc-section { margin-bottom: 50px; } .zcc-section h2 { font-size: 1.5rem; font-weight: 700; color: #47479F; border-left: 6px solid #47479F; padding-left: 18px; margin-bottom: 25px; } /* 表格样式：大号字体，适合手机查看 */ table.zcc-table { width: 100%; border-collapse: collapse; font-size: 1.05rem; margin-bottom: 25px; } table.zcc-table th { background: #47479F; color: #fff; padding: 16px; text-align: left; } table.zcc-table td { padding: 14px 16px; border-bottom: 1px solid #e0e0f0; } table.zcc-table tr:nth-child(even) td { background: #f8f8ff; } /* 核心优势卡片 */ .zcc-grid { display: grid; grid-template-columns: repeat(auto-fit, minmax(280px, 1fr)); gap: 20px; } .zcc-card { background: #f4f4fb; border-radius: 10px; padding: 25px; border-top: 4px solid #47479F; } .zcc-card strong { display: block; color: #47479F; font-size: 1.2rem; margin-bottom: 10px; } /* 型号拆解可视化 */ .zcc-decoder { display: flex; flex-wrap: wrap; gap: 12px; margin: 25px 0; } .zcc-box { background: #47479F; color: #fff; border-radius: 8px; padding: 15px; text-align: center; flex: 1; min-width: 85px; } .zcc-box .char { font-size: 1.8rem; font-weight: 800; display: block; } .zcc-box .desc { font-size: 0.8rem; opacity: 0.9; margin-top: 6px; display: block; line-height: 1.2; } /* 适配刀杆 */ .zcc-holder { background: #1a1a2e; color: #fff; border-radius: 12px; padding: 30px; margin: 30px 0; } .zcc-holder h3 { color: #a0a0ff; margin-bottom: 20px; font-size: 1.3rem; } .zcc-holder-list { display: flex; flex-wrap: wrap; gap: 10px; } .zcc-h-item { background: #2d2d6b; border: 1px solid #47479F; border-radius: 6px; padding: 10px 20px; font-size: 1rem; } /* 移动端优化 */ @media (max-width: 600px) { .zcc-hero { padding: 30px 18px; } .zcc-box { min-width: 70px; padding: 10px 5px; } .zcc-box .char { font-size: 1.4rem; } .zcc-section h2 { font-size: 1.3rem; } } ZCC.CT Original YBC252 Steel Grade DM Medium Chipbreaker TNMG220412-DM YBC252 Tungsten Carbide Turning Insert Premium CVD coated insert for high-stability steel machining. Features the DM chipbreaker for superior chip control in medium-range cutting. Product Description The ZCC.CT TNMG220412-DM YBC252 is a high-performance triangular negative insert designed for versatile steel turning operations. Powered by the YBC252 grade—which combines a high-toughness carbide substrate with a thick Al2O3 and TiCN CVD coating—it offers the perfect balance of wear resistance and impact toughness. The DM chipbreaker is specifically engineered for medium cutting depths. Its unique geometry allows for stable chip breaking at varying feed rates, making it an ideal “first choice” for carbon steels and alloy steels (ISO P-group materials). ISO Code Decoder TTriangular 60° N0° Clearance MTolerance GHole/Groove 22Edge 22mm 04Thick 4.76mm 12Radius 1.2mm DMMed Breaker Technical Specifications Attribute Metric Value Imperial Equivalent Insert Shape Triangular (60°) Triangular (60°) Cutting Edge Length (L) 22.0 mm 0.866 in Thickness (S) 4.76 mm 0.187 in Corner Radius (RE) 1.2 mm 0.047 in Hole Diameter (d1) 5.16 mm 0.203 in Recommended Machining Parameters Workpiece Material Cutting Speed (Vc) Feed Rate (fn) Carbon Steel (P) 150 – 350 m/min 0.15 – 0.50 mm/rev Alloy Steel (P) 120 – 280 m/min 0.12 – 0.45 mm/rev Cast Steel 100 – 250 m/min 0.15 – 0.40 mm/rev Why Choose YBC252 Grade? 🔷 Black Diamond Technology Features ZCC.CT’s signature coating process, providing an ultra-smooth surface to reduce friction and heat build-up. 🔷 Enhanced Edge Strength The substrate is optimized for high resistance to plastic deformation, even under heavy cutting loads. 🔷 Versatile DM Breaker Ideal for medium-duty applications. Ensures short, manageable chips in most steel grades. 🔗 Compatible Tool Holders (TNMG22) MTJNR/L 2525M22 💡 Machinist’s Tip: Corner Radius & Surface Finish With a 1.2mm radius, the TNMG220412 is built for stability and higher feed rates. For optimal surface finish, ensure your feed rate (fn) is approximately 1/3 to 1/2 of the corner radius. If vibration occurs in slender workpieces, consider using the 08 radius version or increasing the cutting speed.

Key Specifications

Brand	ZCC-CT
Model	TNMG220412-DM
Grade	YBC252
Coating	Al2O3
Insert Shape	Triangle
Clearance Angle	0°
IC (Inscribed Circle)	22mm
Thickness	0.4mm
Nose Radius	1.2mm
Workpiece Materials	Steel
Application	General Machining
Geometry	Negative
Quantity	1 PCS

Features & Benefits

100% Genuine ZCC-CT – Original product with full quality guarantee, traceable batch.
Precision Ground – Tight dimensional tolerances for repeatable performance across batches.
Ready Stock – In-stock for same-day dispatch from our CNC tooling warehouse.
Al2O3 Coating – Superior wear resistance and extended tool life under continuous load.
Professional CNC Tooling – Compatible with major CNC machine brands (Mazak, DMG, Haas, Doosan).
Optimized Chip Breaker – Engineered chip geometry reduces re-cutting and machine downtime.

Recommended Applications

General Machining of steel in production CNC lines
Pairs well with through-coolant setups for chip evacuation
Designed for shop conditions typical of ZCC-CT tooling users worldwide
Holds dimensional tolerance over multiple indexings (insert)

Buying Considerations

Single-pack option — useful for prototype runs or qualification before bulk commitment. Mid-tier pricing reflects ZCC-CT’s production-grade tolerances rather than economy substrate.

Reminder: Holder rigidity, lead angle, and approach all influence how this insert wears. Pair with a holder rated for the same cutting forces.

Machining Application (YBC252)
ISO material groups: P – Steel

ZCC.CT grade — recommended for steel (P).

Recommended cutting data

Group P — Carbon & alloy steels

Low-carbon / structural steel (HB ≤ 200)
Vc: 180–320 m/min; f: 0.10–0.40 mm/rev; ap ≤ 4.0 mm
Alloy / quenched-and-tempered steel (HB 200–330)
Vc: 120–240 m/min; f: 0.10–0.35 mm/rev; ap ≤ 3.0 mm

Raise Vc for continuous cuts; lower it and pick a tougher chipbreaker for interrupted cuts.

Figures are general reference ranges by ISO material group — adjust for tool geometry, machine rigidity and cooling. For exact recommendations refer to the manufacturer's data or contact us for a quote.

Weight	0.3 kg
Dimensions	15 × 18 × 4 cm
