Original ZCC-CT WNHU060408PNR-GM YBG205 Carbide Milling Insert – Trigon 80° | Steel & More

Name: Original ZCC-CT WNHU060408PNR-GM YBG205 Carbide Milling Insert - Trigon 80° | Steel &amp; More
Brand: ZCC-CT
SKU: WNHU060408PNR-GM YBG205
Rating: 4.8 (37 reviews)

Brand: ZCC-CT

$12.15

★★★★⯨ 4.8 (37 reviews)

Buy original ZCC-CT WNHU060408PNR-GM (WNHU060408PNR-GM YBG205) YBG205 Carbide Insert for steel, stainless steel, cast iron machining. tin coating. From $12.1…

500 in stock

Need a different quantity, brand or specification?Send us the part number — typical reply time: a few hours.

WhatsApp Inquiry ✉ Email 📞 +1 743 279 9499

🔒Guaranteed Safe & Secure Checkout
🚚Free shipping on orders over $99
↩️30-day money-back guarantee

We accept

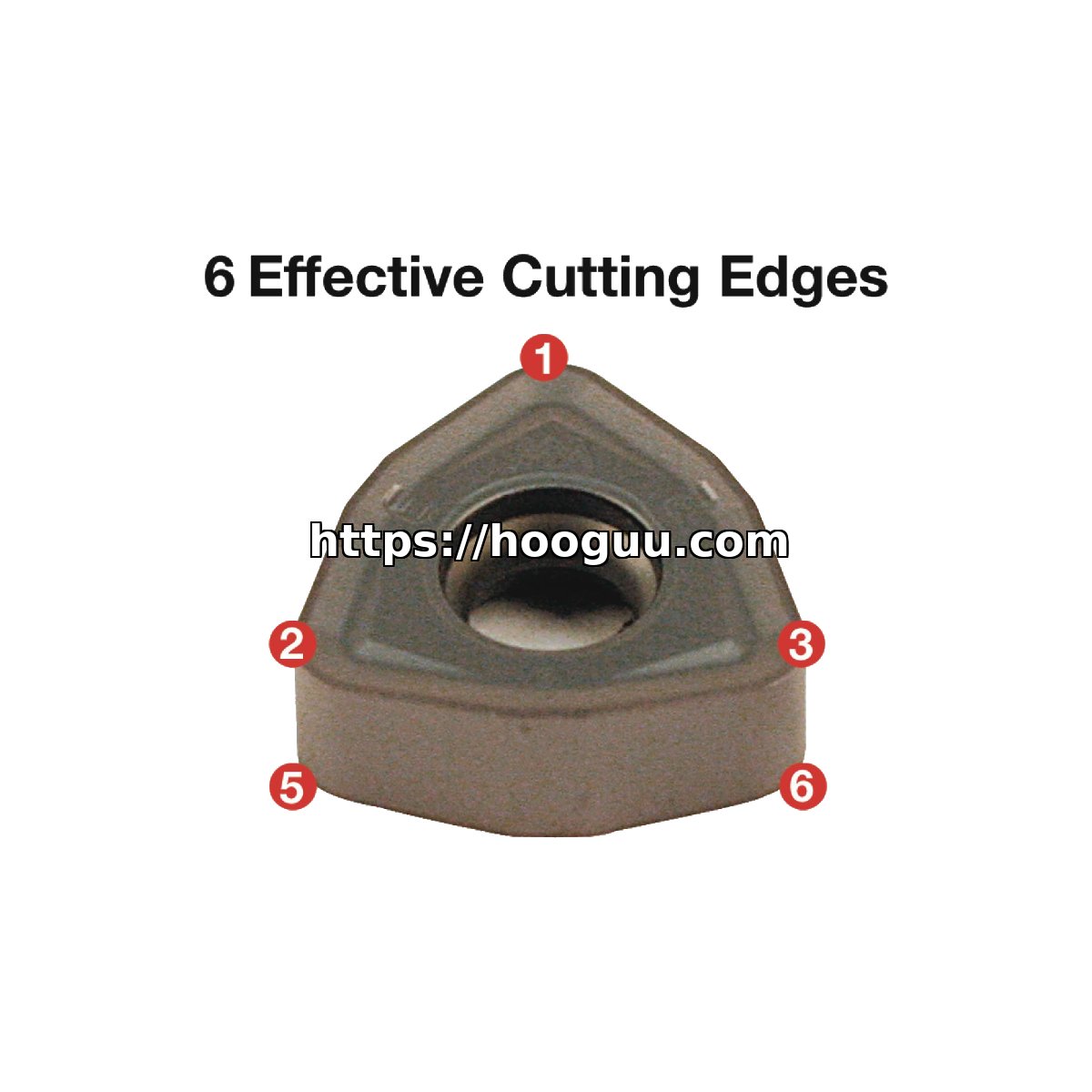

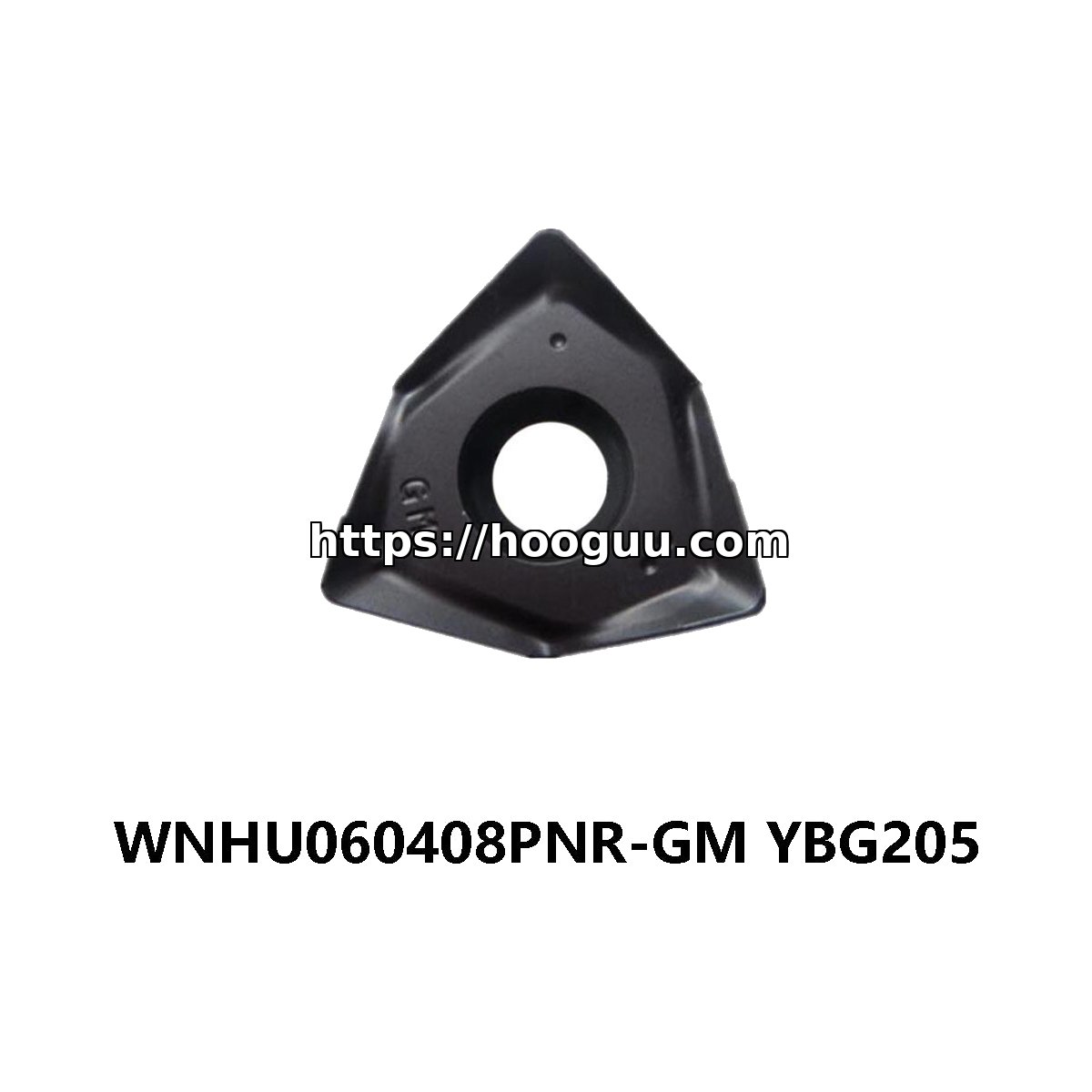

ZCC-CT WNHU060408PNR-GM YBG205 – Milling Carbide Insert

Specifications:
Subcategory: Indexable Inserts & Blades
Leaf Category: Carbide Milling Inserts
Brand: ZCC-CT
Model #: 4230004063
Tool Material: Carbide
Unit of Measure: Each
Inventory Status: Order as needed
Catalog Page: 9923
Series: FMP12
Material: Carbide
Grade: YBG205
Chipbreaker 3875: GM
Coating: PVD / TiAlN
Feed Rate 4197: 0.004″-0.016″
Insert IC: 0.375″
Insert Radius: 0.031″
Insert Shape & Angle: 80掳 Trigon
Insert Size: 60408
Insert Style: WNHU
Insert Thickness: 0.157″
Relief Angle: 0掳
Insert Hand 7891: Right Hand
Ic 2297: 0.375″
Insert #: WNHU060408PNR-GM
Maximum Depth Of Cut 4836: 0.224″
Weight: 0.01 lbs.
Designation: WNHU060408PNR-GM YBG205

Field reports & vendor notes: Item # 23-200-253 Write a review Ask a question Brand: ZCC-CT Insert Shape & Angle: 80° Trigon Tool Material: Carbide Insert Style: WNHU Catalog: $12.15 /each Typically ships 3-7 days from mfr. WNHU060408PNR-GM YBS303 J3 Company code ZCC – ZCC Cutting Tools NSM Standard number of properties layout DIN4000-76 BLD Tool style code 7 A1 Insert included angle 88 Degree A2 Cleara

Key Specifications

Brand	ZCC-CT
Model	WNHU060408PNR-GM
Grade	YBG205
Coating	tin
Insert Shape	Trigon 80°
Clearance Angle	0°
IC (Inscribed Circle)	6mm
Thickness	0.4mm
Nose Radius	0.8mm
Workpiece Materials	Steel, Stainless Steel, Cast Iron
Application	General Turning
Geometry	Chip breaker manufacturers
Quantity	1 PCS

Why Grade YBG205

ZCC-CT’s YBG205 sits between general-purpose and high-performance offerings — strong enough for production general turning on steel, stainless steel, cast iron, conservative enough to forgive the occasional spike in feed rate. tin layer keeps cutting temperatures workable.

Features & Benefits

100% Genuine ZCC-CT – Original product with full quality guarantee, traceable batch.
Ready Stock – In-stock for same-day dispatch from our CNC tooling warehouse.
Precision Ground – Tight dimensional tolerances for repeatable performance across batches.
Thermal Resistance – tin layer holds hardness above typical cutting-zone temperatures.
Edge Stability – Substrate chemistry tuned to limit micro-chipping on steel, stainless steel, cast iron interruptions.
Optimized Chip Breaker – Engineered chip geometry reduces re-cutting and machine downtime.

Recommended Applications

General Turning of steel, stainless steel, cast iron in production CNC lines
Pairs well with through-coolant setups for chip evacuation
Designed for shop conditions typical of ZCC-CT tooling users worldwide
Holds dimensional tolerance over multiple indexings (insert)

Buying Considerations

Single-pack option — useful for prototype runs or qualification before bulk commitment. Entry-tier pricing makes this a low-risk option for trialing ZCC-CT tooling on a new material.

Note: Compatible tool holders sold separately. Please confirm insert-holder seat compatibility (e.g. ISO seat designation) before ordering.

Weight	0.01 kg
Dimensions	15 × 18 × 4 cm

SKU: WNHU060408PNR-GM YBG205 Category: Insert Brand: ZCC-CT
