Nachi 100% Original 1004285 31/64 Size, 118°, High Speed Steel Taper Length Drill 1 pcs

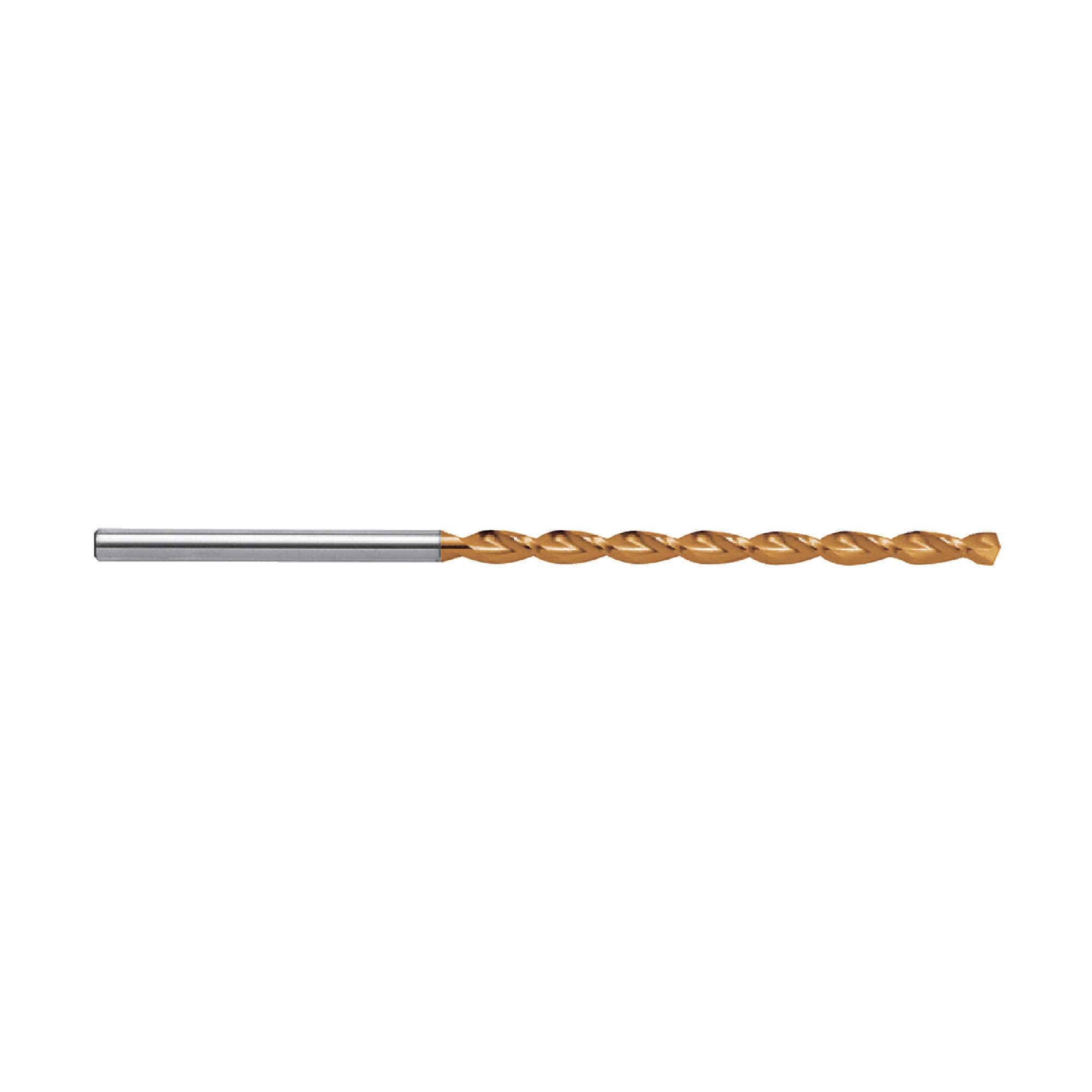

Nachi 100% Original 1001590 9/64 Size, 118°, High Speed Steel Taper Length Drill 1 pcs

Name: Nachi 100% Original 1001590 9/64 Size, 118&#176;, High Speed Steel Taper Length Drill 1 pcs
Brand: Nachi
SKU: 1001590
Rating: 4.5 (32 reviews)

Brand: Nachi

$3.23

★★★★⯨ 4.5 (32 reviews)

Used for deep hole drilling
Parabolic design gives maximum chip removal with no clogging

Need a different quantity, brand or specification?Send us the part number — typical reply time: a few hours.

WhatsApp Inquiry ✉ Email 📞 +1 743 279 9499

🔒Guaranteed Safe & Secure Checkout
🚚Free shipping on orders over $99
↩️30-day money-back guarantee

We accept

More Information
Brand	NACHI
Size Type	Fractional
Size	9/64"
Drill Point Angle	118°
Tool Material	High Speed Steel
Finish Coating	TiN
Overall Length	5.375"
Flute Length	3"
Cutting Direction	Right Hand
Model #	1001590
Point Sharpening Type	Standard Point
Helix Angle	30°
Package Qty	10
Decimal Size	0.140625
Flute Shape	Parabolic
No. of Flutes	2
Prop. 65	Yes
Series	L545P
Weight	0.05 lbs.
Workpiece Material	Stainless Steel, Carbon Steel, Alloy Steel, Aluminum, Cast Irons
Country of Origin	JAPAN
Shipping Restrictions	UPS Ship (drop ship item)

Weight	0.1 kg
Dimensions	15 × 18 × 4 cm

SKU: 1001590 Category: Others Brand: Nachi
