Nachi 100% Original 1561576 11/64 140° 66.00mm OAL Solid Carbide Coolant Fed Drill 1 pcs

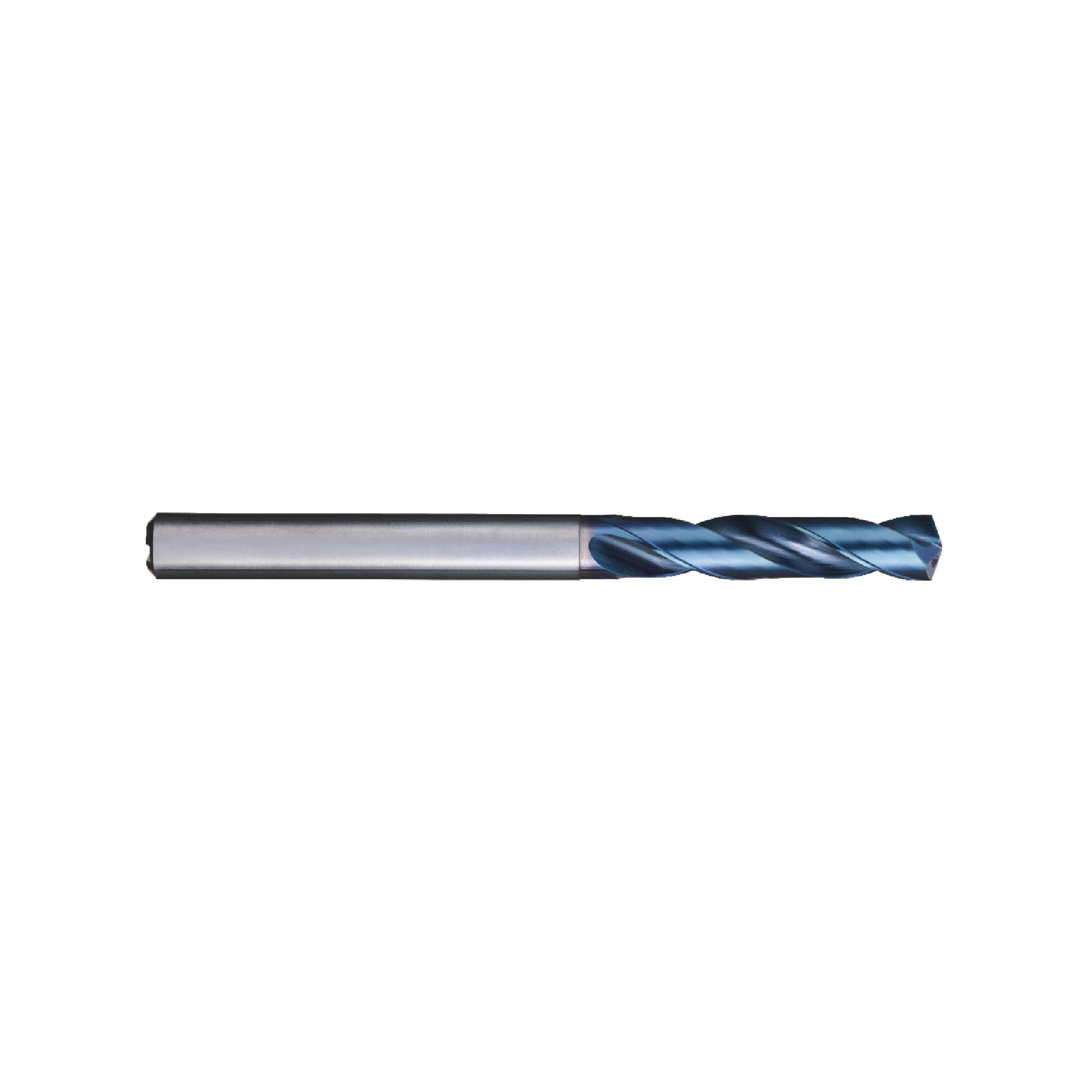

Name: Nachi 100% Original 1561576 11/64 140&#176; 66.00mm OAL Solid Carbide Coolant Fed Drill 1 pcs
Brand: Nachi
SKU: 1561576
Rating: 4.7 (67 reviews)

Brand: Nachi

$13.53

★★★★⯨ 4.7 (67 reviews)

Coolant holes designed to increase flow rate by more than twice that of conventional holes.
New hole design produces a decrease in work hardening, prolonging tool life.
Power cooler s unique design directs coolant to the cutting edge, resulting in longer tool life by keeping the drill cooler when drilling.
Increase number of cutting holes by up to 1.8 times.
Incredible tool life even in stainless steel.
Helix angle 26°/30°.

Need a different quantity, brand or specification?Send us the part number — typical reply time: a few hours.

WhatsApp Inquiry ✉ Email 📞 +1 743 279 9499

🔒Guaranteed Safe & Secure Checkout
🚚Free shipping on orders over $99
↩️30-day money-back guarantee

We accept

More Information
Brand	NACHI
Size Type	Fractional
Size	11/64"
Drill Point Angle	140°
Tool Material	Solid Carbide
Finish Coating	REVO D
Shank Diameter	6.00mm
Overall Length	66.00mm
Type	Aqua Revo Coolant Through 3XD Carbide Drill
Morse Taper	None
Flute Length	24mm
Model #	1561576
Helix Angle	26/30°
Application	High Performance Holemaking
Decimal Size	.1719"
Drill Type	Coolant Fed
Flute Shape	Helical
Hole Depth	3XD
No. of Flutes	2
Prop. 65	Yes
Series	9873
Shank Style	Straight Shank
Single or Double End	Single
Tolerance_Cutting Diameter	h7
Tolerance_Shank	h6
Workpiece Material	Structural Steel. Carbon Steel, Alloy Steel, Heat Treated Steel, Hardened Steel Up To 40-50 HRc, Stainless Steel (SUS 304, 316, 420, 630), & Cast Iron.
Country of Origin	JAPAN

Weight	0.1 kg
Dimensions	15 × 18 × 4 cm

SKU: 1561576 Category: Others Brand: Nachi
