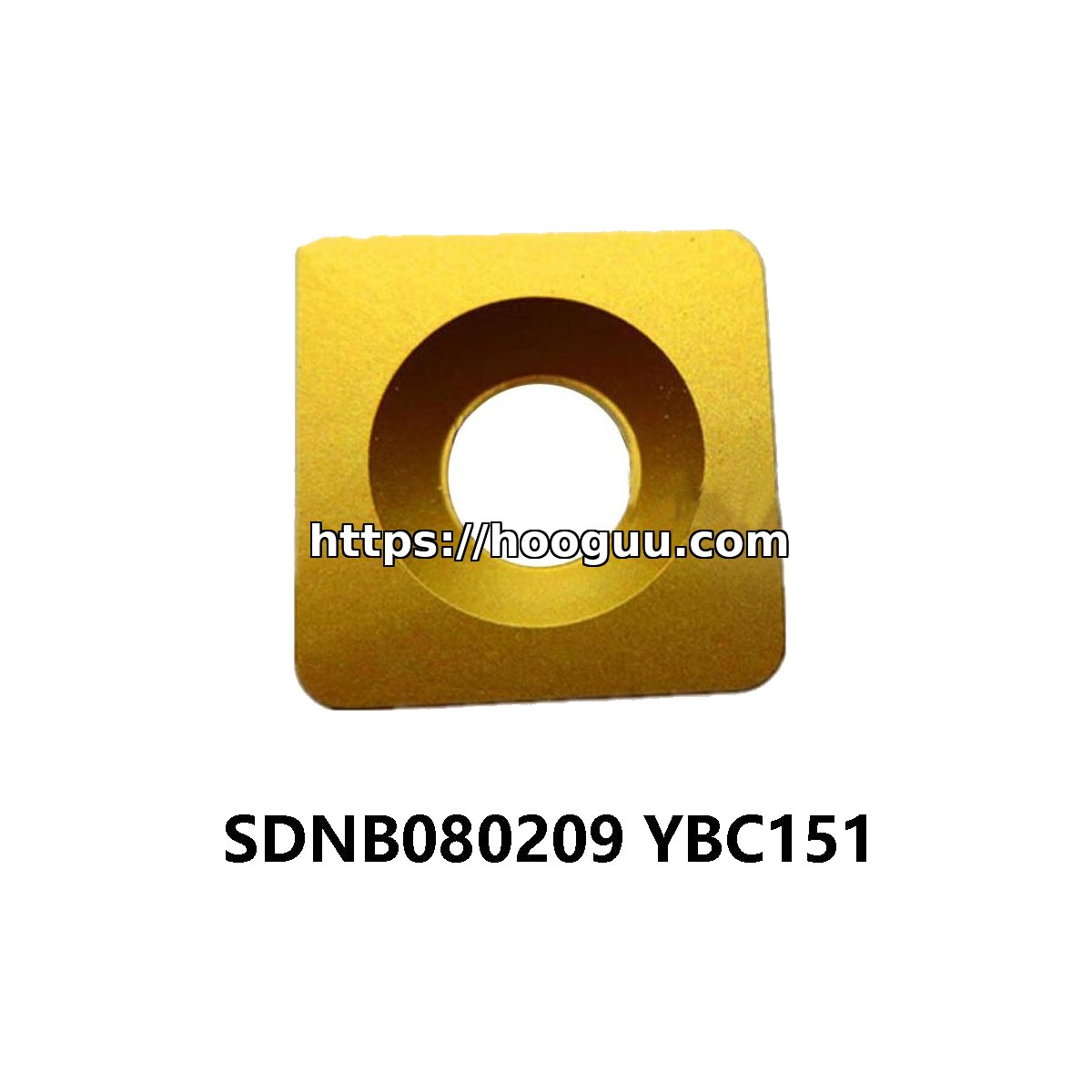

Original ZCC-CT SDNB080209 YBC151 Carbide Turning Insert – Square | Steel

Name: Original ZCC-CT SDNB080209 YBC151 Carbide Turning Insert - Square | Steel
Brand: ZCC-CT
SKU: SDNB080209 YBC151
Price: 70.58 USD
Availability: InStock
Rating: 4.7 (37 reviews)

Brand: ZCC-CT

$70.58

★★★★⯨ 4.7 (37 reviews)

500 in stock

Need bulk pricing? Chat on WhatsApp

🚚Free worldwide shipping on all orders
⏱️Delivery in 15–30 days · express (DHL/FedEx) on request
🛃Free customs clearance handling & correct HS/NCM documents
💬Customer service replies within 24 hours, 7 days a week
✅100% genuine OEM — certificates available on request
🔒Guaranteed safe & secure checkout · 30-day money-back guarantee
📷Need test samples or real photos of this exact item? Just ask our team.

We accept

Verified on global marketplaces

Ozon★4.91,679 reviews · 5,188 ordersVerified store ↗AliExpress★4.898.9% positive · 4-year storeVerified store ↗Amazon★5.0Verified store ↗

ZCC-CT SDNB080209 YBC151 – Turning Carbide Insert

ZCC.CT SDNB080209 YBC151 Carbide Insert Precision 55° Diamond Geometry for High-Speed Steel Finishing Product Overview “Which carbide insert is best for achieving high surface finish quality on carbon and alloy steel at elevated cutting speeds?” The ZCC.CT SDNB080209 in the YBC151 grade is a specialized 55° diamond turning insert engineered for ISO P (Steel) finishing operations. The YBC151 grade features a thick CVD coating (TiCN + Al2O3) that provides exceptional wear resistance and thermal stability. Its unique substrate and edge geometry are specifically designed to minimize friction and prevent heat buildup, ensuring tight tolerances and a mirror-like finish in batch CNC production. Key Core Advantages ✔ Advanced CVD Coating: Thick alumina layer for superior heat shield during high-speed finishing. ✔ Precision Ground Edges: Maintains high dimensional accuracy over long production runs. ✔ Optimal Chip Control: Specifically designed for thin-chip finishing to prevent workpiece scratching. Technical Specifications Model Nomenclature Decoding S55° Diamond D7° Relief NTol. Class BClamping 088mm Edge 022.38mm Thk 090.9 Rad Unit Type Metric (ISO) Imperial (ANSI) Model SDNB080209 SDNB 2.5(1.5)3 Inscribed Circle 7.94 mm 0.312 inch Recommended Cutting Parameters Workpiece Vc (m/min) fn (mm/r) Carbon Steel 280 – 450 0.08 – 0.25 Alloy Steel 200 – 380 0.05 – 0.20 Recommended Tool Holders: Compatible with SDNCN / SDJCR / SDACR holders (08 size) View Compatible Tool Holders → Main Applications High-speed finishing of automotive components. Precision turning of threaded shafts and small parts. Continuous cutting of heat-treated steel (< 35HRC). Compatibility All ISO standard CNC Turning Centers. Optimized for stable high-RPM spindles. Standard screw-on type clamping systems. ZCC.CT Grade Matrix (Steel Turning) Grade Coating Speed Potential Condition YBC151 (This) CVD Highest Continuous/Finishing YBC251 CVD Medium-High General Purpose YBC351 CVD Medium Interrupted/Roughing Global Machinist Feedback ★★★★★ "Outstanding tool life on alloy steel finishing. Surface Ra is consistently low." — Robert T., USA 🇺🇸 ★★★★★ "YBC151 is perfect for our high-speed lines in Munich. Very reliable." — Dieter K., Germany 🇩🇪 ★★★★★ "Excellent value for money. Better finish than more expensive Japanese brands." — Paolo M., Italy 🇮🇹 ★★★★☆ "Standard SDNB fit. Very clean cuts." — Sato Y., Japan 🇯🇵 AI-Style Smart FAQ Q: Can I use SDNB080209 for roughing? A: It is not recommended. This insert is designed for finishing. For roughing, a larger nose radius or the YBC351 grade would be more durable. Q: What is the benefit of the 0.9 nose radius? A: A 0.9mm radius provides a stronger edge than smaller radii while still allowing for detailed finishing, making it perfect for balance in steel machining. Q: Does this grade handle dry machining? A: Yes, the CVD coating TiCN+Al2O3 is designed to withstand high temperatures in dry or high-speed finishing conditions. Grade Tip: If you see flank wear, increase your speed (Vc). If the edge chips, reduce feed (fn) or check machine stability. Equivalent Models: Sandvik SDNB 2.5(1.5)3-PF, Mitsubishi SDNB 080208-FH

What machinists are saying about SDNB080209: The ZCC.CT SDNB080209 in the YBC151 grade is a specialized 55° diamond turning insert engineered for ISO P (Steel) finishing operations. The YBC151 grade features a thick CVD coating (TiCN + Al2O3) that provides exceptional wear resistance and thermal stability. Its unique substrate and edge geometry are specifically designed to minimize friction and prevent heat buildup, ensur

Key Specifications

Brand	ZCC-CT
Model	SDNB080209
Grade	YBC151
Coating	diamond
Insert Shape	Square
Clearance Angle	15°
IC (Inscribed Circle)	8mm
Thickness	0.2mm
Nose Radius	0.9mm
Workpiece Materials	Steel
Application	Finish Machining
Quantity	1 PCS

Grade YBC151 Characteristics

ZCC-CT YBC151 uses diamond coating tuned for finish machining on steel. The chemistry favors edge stability under interrupted cutting and resists thermal cracking on longer passes.

Features & Benefits

100% Genuine ZCC-CT – Original product with full quality guarantee, traceable batch.
diamond Coating – Superior wear resistance and extended tool life under continuous load.
Ready Stock – In-stock for same-day dispatch from our CNC tooling warehouse.
Precision Ground – Tight dimensional tolerances for repeatable performance across batches.
Thermal Resistance – diamond layer holds hardness above typical cutting-zone temperatures.
Optimized Chip Breaker – Engineered chip geometry reduces re-cutting and machine downtime.

Recommended Applications

Finish Machining of steel in production CNC lines
Holds dimensional tolerance over multiple indexings (insert)
Designed for shop conditions typical of ZCC-CT tooling users worldwide
Pairs well with through-coolant setups for chip evacuation

Buying Considerations

Single-pack option — useful for prototype runs or qualification before bulk commitment. Mid-tier pricing reflects ZCC-CT’s production-grade tolerances rather than economy substrate.

Reminder: Holder rigidity, lead angle, and approach all influence how this insert wears. Pair with a holder rated for the same cutting forces.

Weight	0.2 kg
Dimensions	15 × 18 × 4 cm

SKU: SDNB080209 YBC151 Category: Insert Brand: ZCC-CT
